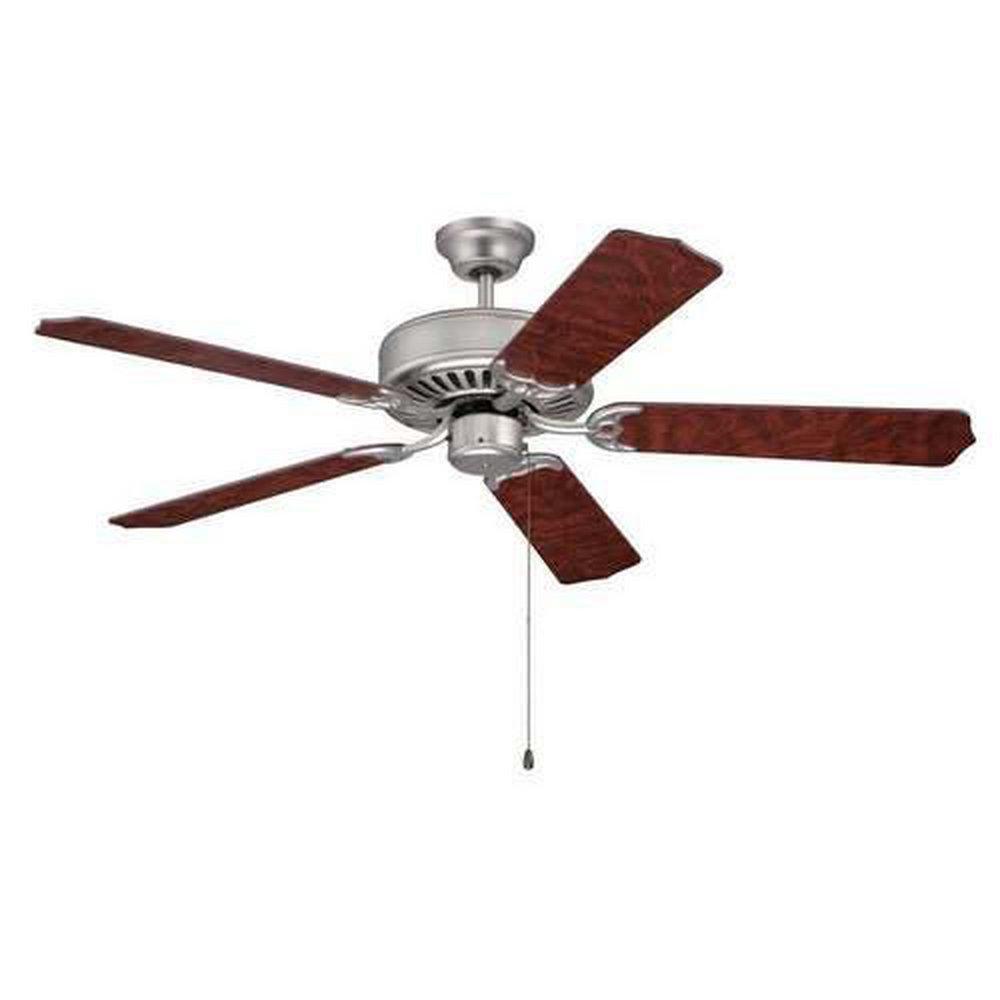

Craftmade C52BN Pro Builder 52 in. Fan Motor Only 63.1 W

Product Description

The Craftmade C52BN Pro Builder series offers this standard, 3-speed reversible fan motor. Designed for dual mount (flat or angled ceiling) installation. Blades and light kit are sold separately. Remote and wall control adaptable. It comes with a 4" downrod and a limited lifetime warranty.

• Standard, 3-Speed Reversible Motor
• Dual Mount (Flat or Angled Ceiling)
• 4" Downrod Included

Product Highlights

The Pro Builder series delivers excellent performance and exceptional value. Ideal for homes or offices.

Product Information

Standard Information

• Brand: CRAFTMADE
• Manufacturer Part Number: C52BN

Technical Specifications

• AMP: 0.52
• Blade Pitch: 12°
• Blade Span: 52 in
• CFM: 4658.6 ft3/min
• Collection: Pro Builder
• Color Finish Category: Nickel Tones
• Color Finish Name: Brushed Satin Nickel
• Diameter: 11-13/20 in
• Fan Speeds: 3
• Height: 13-13/100 in
• Indoor Outdoor: Indoor
• Installation Type: Dual Mount
• Material: Silicon Steel
• UL Listed: Yes
• Volts: 120V
• Watts: 63.1 W
• Model Number: C52BN
• Down Rod Included: 4''
• Blades Included: Sold Separately
• Motor Fan Speed: 3
• Motor RPM: 166
• Motor Size: 153x13
• Motor Type: Ac
• Air Flow CFM: 4658.6
• Air Flow Efficiency: 73.83
• Wire Included: 76''
• Blade Type: Type5
• AirflowEfficiency High: 70.43
• AMPS High Max: 0.53
• Blade Count: 5
• Blade Features: Blades Sold Separately
• Blade To Ceiling Height: 10.78''
• CFM High: 4500.95
• CFM High Max: 4501.61
• CFM Low Max: 1608.32
• Control Types Included: Pull Chain
• Downrod Quantity: 1
• ElectricityUsed High: 63.98
• ElectricityUsed Low: 10.25
• Finish Group: Nickel
• Leadwire Length: 76.000''
• Light Kit Features: Light Kit Adaptable (sold Separately)
• Motor Diameter: 153
• Motor Height: 13''
• Motor Material: Silicon Steel
• MotorRPM 1: 178
• MotorRPM 2: 127
• MotorRPM 3: 68
• MotorRPM Low: 68
• Number Of Downrods: 1
• Reverse Location: Switch Housing
• Reverse Method: Slide Switch
• Slope Mount: Yes
