Cps TRS600 sparkless ignition proof recovery machine 115V 60Hz USA

Product Description

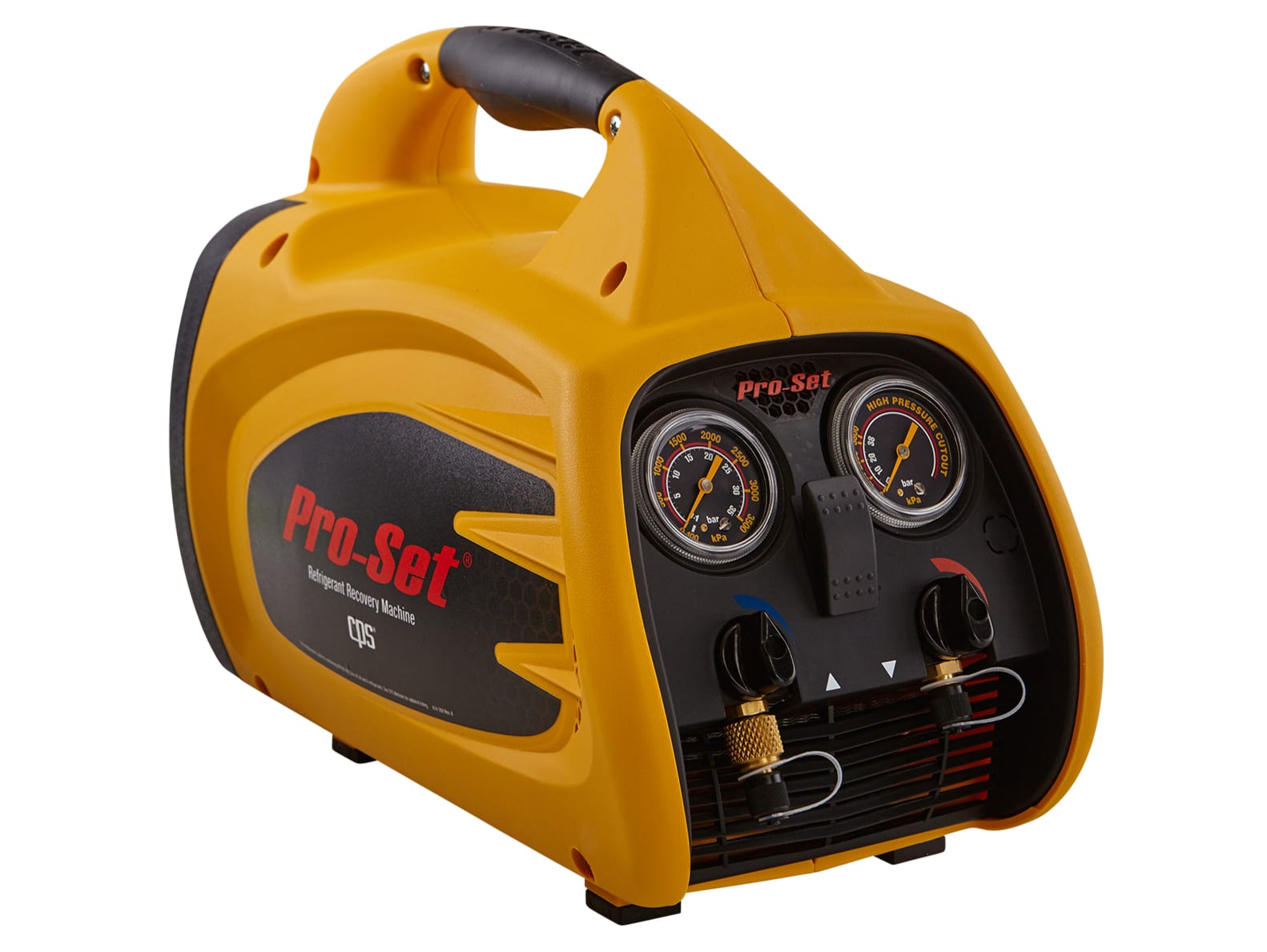

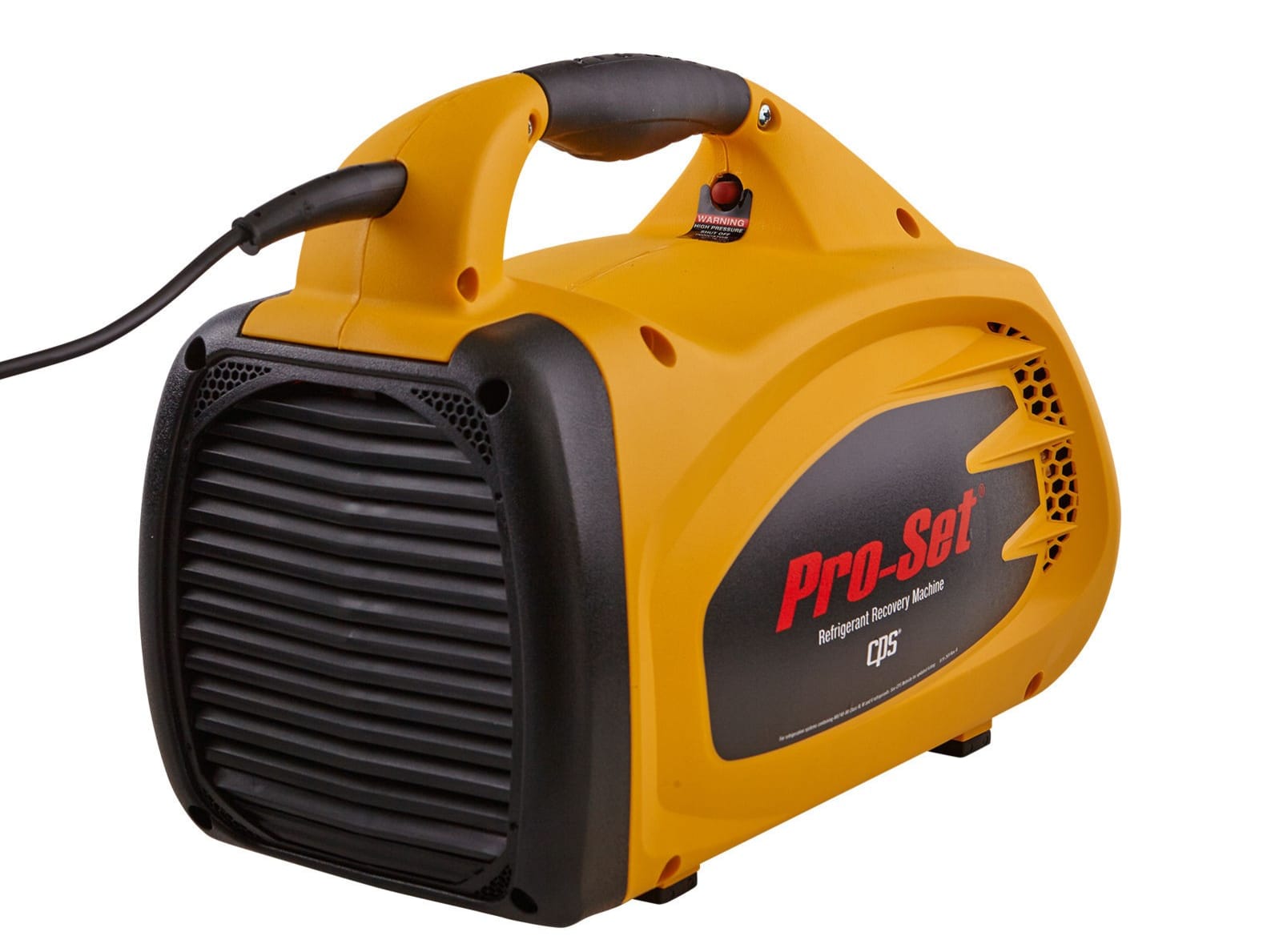

The CPS TRS600 is a lightweight, efficient, and reliable refrigerant recovery machine in a compact, rugged housing. Features a powerful 2/3 HP oil-less 2 cylinder reciprocating recovery compressor and exceptional compressor, condensing, and cooling systems for fast recovery in high-temperature environments. The thermally protected motor ensures safe operation.

• Powerful 2/3 HP oil-less 2 cylinder reciprocating recovery compressor
• Exceptional compressor, condensing and cooling systems allow fast recovery in high-temperature environments
• Thermally protected motor

Product Highlights

Fast refrigerant recovery with durable construction and user-friendly design. Ideal for HVAC professionals needing a reliable and portable recovery solution.

Product Information

Standard Information

• Brand: CPS
• Manufacturer Part Number: TRS600

Technical Specifications

• Voltage (Hz): 115V (60Hz)
• Motor Size: 2/3HP
• Motor Thermally Protected: Yes
• Compressor Type: Two cylinder, oil-less
• Overload Protection: Thermally Protected
• Power Consumption: 1,000W
• Suction Gauge Outer Scale: -30in hg to 500psig
• Suction Gauge Inner Scale: -30in hg to 500psig
• Discharge Gauge Outer Scale: 0 to 550psig
• Discharge Gauge Inner Scale: 0 to 550psig

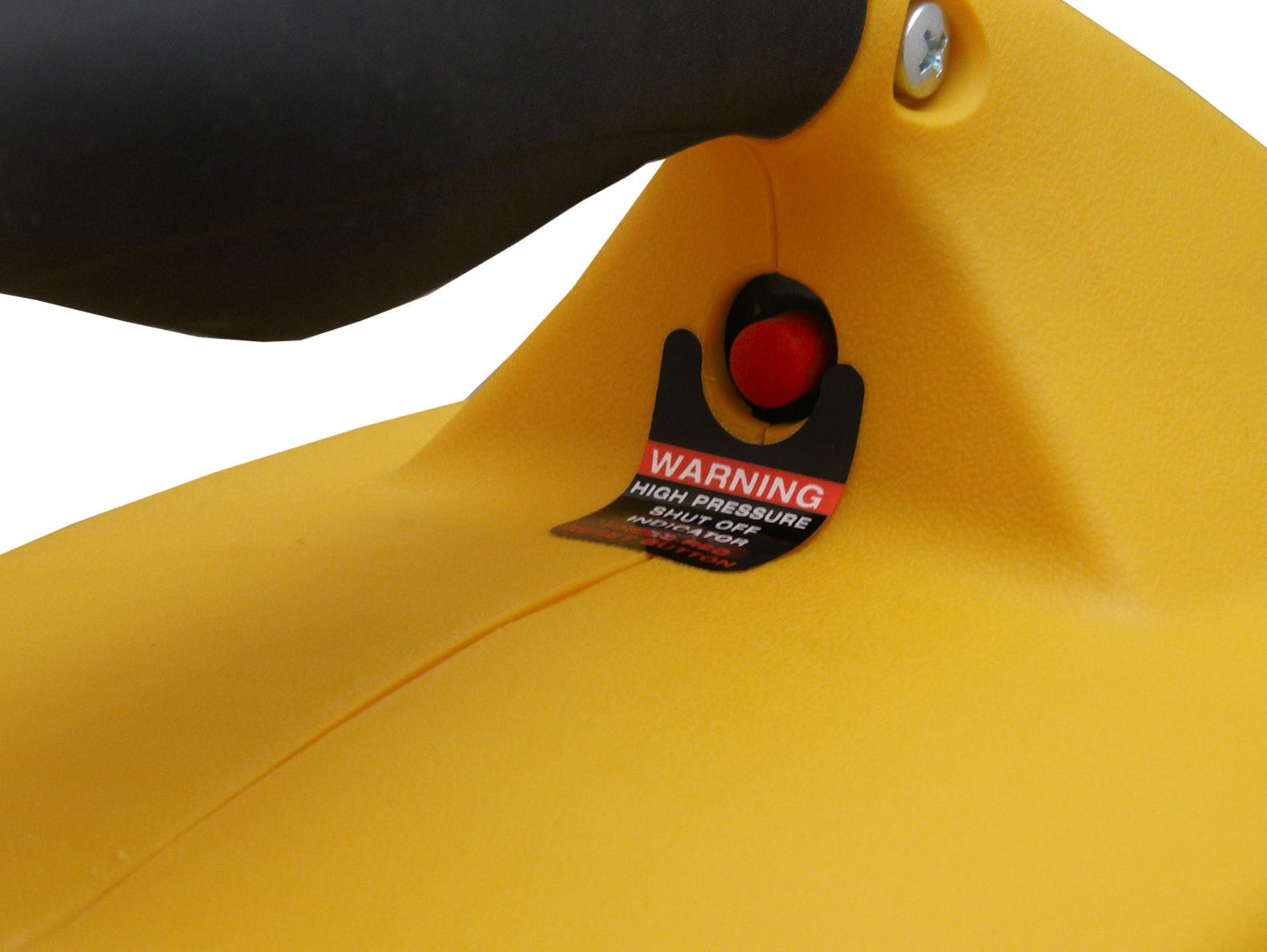

• High Pressure Shut-Off: 550psig (38 bar)
• Refrigerants: AHRI740 Class III - R-12, R-1234yf, R-1234ze, R-134A, R-401C, R-406A, R-500 AHRI740 Class IV - R-22, R-401A/B, R-402B, R-407C/D/E/F, R-408A, R-409A, R-411A/B, R-412A, R-502, R-509A AHRI740 Class V - R-32A, R-402A, R-404A, R-407A/B, R-410A/B, R-507A ASHRAE/ISO Class A2, A2L and A3 - R-1234yf, R-1234ze R-32, R-290, R-600, R-601, R-1276
• Operating Temperature Range: 32 to 120°F (0 to 49°C)
• Power Cord Length: 9.8ft (3m)
• Approvals: UL
