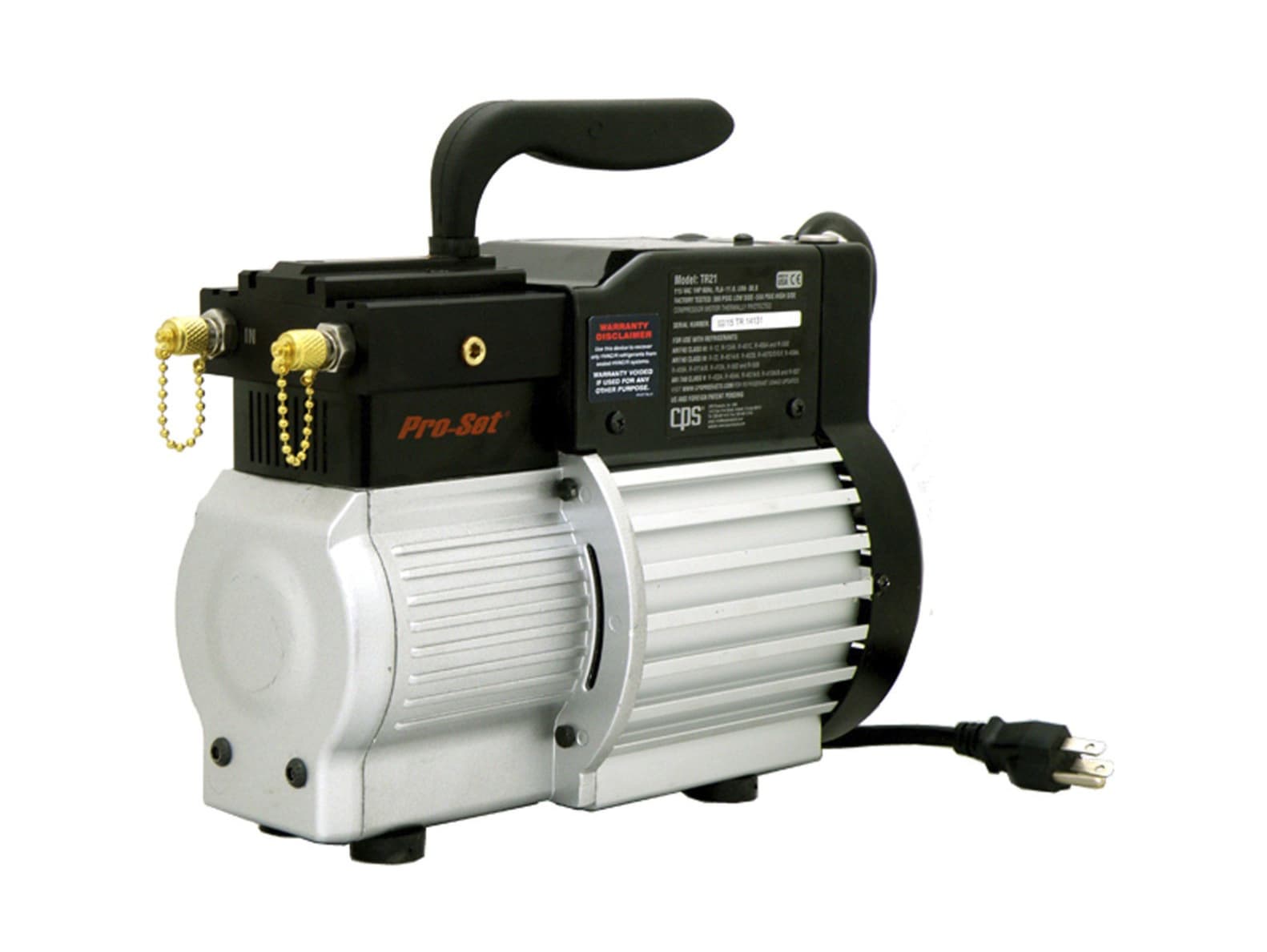

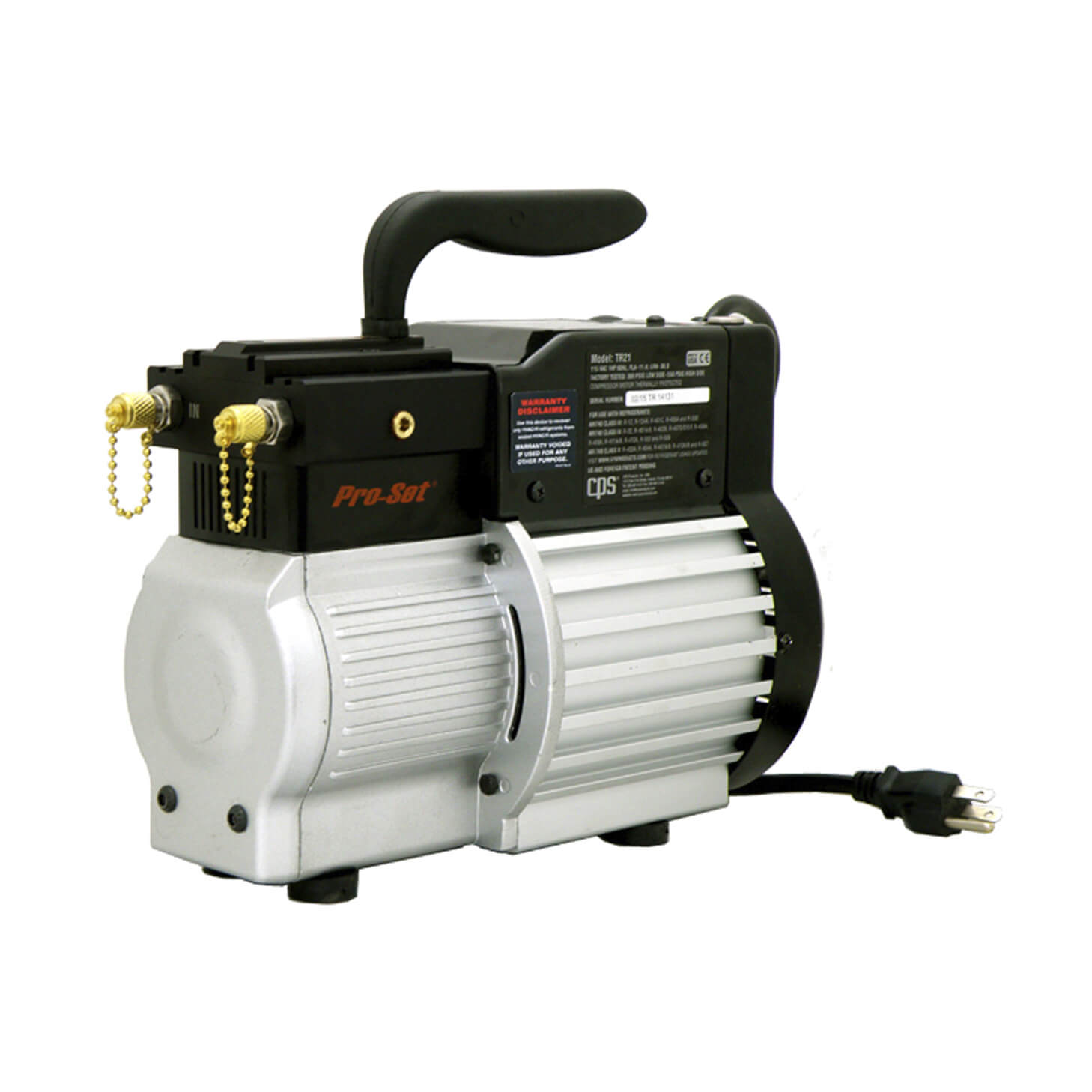

Cps TRS21 Pro-Set Sparkless Ignition Proof Refrigerant Recovery Machine 115 V

Product Description

The CPS TRS21 Pro-Set sparkless ignition proof refrigerant recovery machine is an efficient, lightweight, and reliable recovery machine that meets ANSI ignition proof standards. Its compact, rugged design combines form and function for faster and easier recovery. Designed for use with Class A1, A2, A2L, and A3 refrigerant systems.

• Designed and tested to meet ANSI 12:12.01 Ignition Proof standards
• Maintenance free oil-less compressor
• High pressure cutoff switch with LED indicator

Product Highlights

This recovery machine features an efficient design, spark-proof components, and is suitable for use with various refrigerants. It ensures reliable and fast recovery in a compact form.

Product Information

Standard Information

• Brand: CPS
• Manufacturer Part Number: TRS21

Technical Specifications

• Voltage (Hz): 115V (60Hz)
• Overload Protection: 15 A
• Power Consumption: 1000 W
• High Pressure Shut-Off: 550 Psig (38 bar)
• Spark Proof Starting Components: Yes
• Voltage: 115 V
• 60 Hz: 60 Hz
• Motor Size: 2/3 HP
• Motor Thermally protected: Yes
• Compressor Type: Two cylinder oil-less reciprocating compressor
• High-Pressure Shut-Off: 550 psig (auto reset)
• Refrigerants ARI740 class III: R-12, R-134A, R-401C, R-406A, R-500
• Refrigerants ARI740 class IV: R-1234YF, R-22, R-401A/B, R-402B, R-407C/D/E/F, R-408A, R-409A, R-411A/B, R-412A, R-502, R-509A
• Refrigerants ARI740 class V: R-32A, R-402A, R-404A, R-407A/B, R-410A/B, R-507A
• Refrigerants ASHRAE/ISO class A2, A2L and A3: R-1234YF, R-32, R-290, R-600, R-601, R-1276
• Direct Vapor R-410A: 0.703 lbs/min (0.319 kg/min)
• Direct Vapor R-22: 0.597 lbs/min (0.271 kg/min)
• Direct Vapor R-134A: 0.503 lbs/min (0.228 kg/min)
• Direct Vapor R-407C: 0.536 lbs/min (0.243 kh/min)
• Direct Liquid R-410A: 11.95 lbs/min (5.42 kg/min)
• Direct Liquid R-22: 8.86 lbs/min (4.02 kg/min)
• Direct Liquid R-134A: 7.8 lbs/min (3.54 kg/min)
• Direct Liquid R-407C: 8.5 lbs/min (4.31 kg/min)
• Push-Pull Liquid R410A: 31.7 lbs/min (14.38 kg/min)
• Push-Pull Liquid R-22: 31.53 lbs/min (14.3 kg/min)
• Push-Pull Liquid R-134A: 25.66 lbs/min (11.64 kg/min)
• Push-Pull Liquid R-407C: 29.14 lbs/min (13.22 kg/min)
• High Temperature Vapor Rate R-410A: 0.816 lbs/min (0.37 kg/min)
• High Temperature Vapor Rate R-22: 0.86 lbs/min (0.39 kg/min)
• Operating Temperature Range: 32 to 120°F (0 to 49°C)
• Spark-Proof Starting Components: Yes
• Power Cord Length: 9.8' (3 m)
• Approvals: UL, CSA
