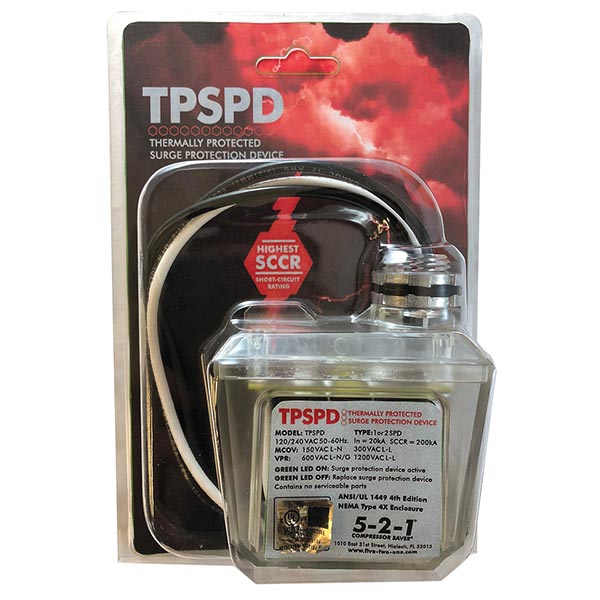

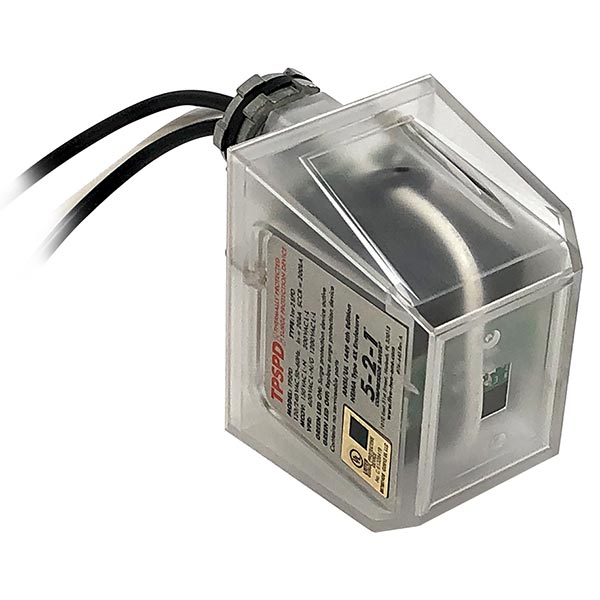

CPS TPSPD Thermally Protected Surge Protection Device, Electrical Ratings: 100000 A, 50, 60 Hz, 200 kA Short Circuit

Product Description

The CPS TPSPD is a thermally protected surge protection device designed to protect electrical systems. It has an electrical rating of one hundred thousand amps and is compatible with fifty and sixty Hertz systems. This device features a maximum continuous operating voltage of six hundred volts line-to-neutral and twelve hundred volts line-to-line.

• Rated for both 50 Hz and 60 Hz
• Thermally protected MOV technology
• Green LED indicators for operational status

Product Highlights

Effective surge protection for single-phase electrical systems. Compact design allows for easy installation in junction boxes and electrical panels.

Product Information

Standard Information

• Brand: CPS Products
• MPN: TPSPD

Technical Specifications

• Clamping Voltage: 120, 240 V
• Electrical Ratings: 100000 A
• Enclosure Type: NEMA 4X
• Frequency Rating: 50, 60 Hz
• Nominal Discharge Current: 20 kA
• Phase: Single
• Short Circuit Current Rating: 200 kA
