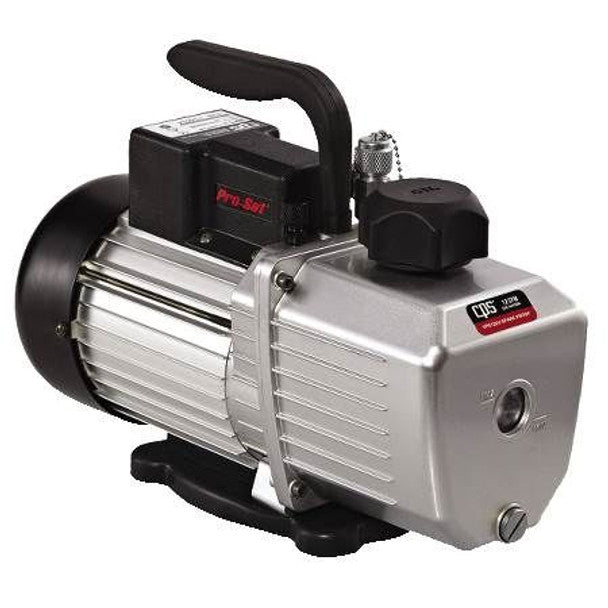

CPS PRODUCTS VPS12DU Pro-Set 12 CFM Sparkless Vacuum Pump

Product Description

The CPS PRODUCTS VPS12DU Pro-Set 12 CFM Sparkless Vacuum Pump is suitable for refrigeration systems requiring safe operation. It meets ANSI ignition proof standards for various refrigerant classes. This vacuum pump features a lightweight design with a durable aluminum housing.

• Tested to meet ANSI 12:12.01 Ignition Proof standards
• Compatible with refrigeration systems using various refrigerant classes: A1, A2L, A2, A3, and Ammonia
• Equipped with air-cooled, thermally protected motors

Product Highlights

This pump is designed for professionals needing reliable and efficient vacuum solutions.

Product Information

Standard Information

• Brand: CPS
• Model: VPS12DU

Technical Specifications

• Stage: 2
• Ultimate Vacuum: 25 microns
• Refrigerant Class: A1, A2L, A2, A3, Ammonia (NH3)
• Free Air Displacement: 12 CFM @ 60 Hz
• Motor Size: 1 HP, 3440 RPM @ 60 Hz
• Voltage: 115V
• Frequency: 60 Hz
• Power Connection: 10 ft hard wired
• Oil Capacity: 27 oz (800 ml)
• Control System: Ignition proof ON-OFF switch
• Intake Fittings: 1/4 inch, 3/8 inch, 1/2 inch SAE
