Cps Products VPBM8V BlackMax 8 CFM Vacuum Pump

Product Description

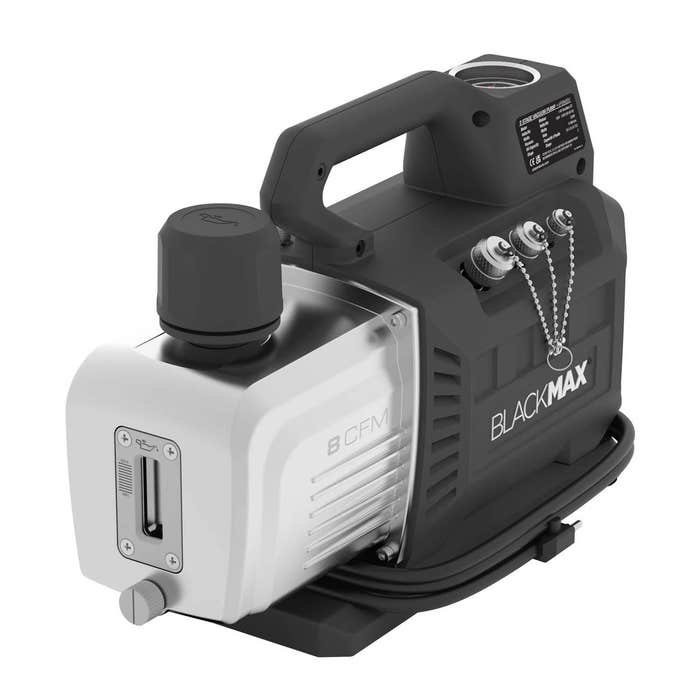

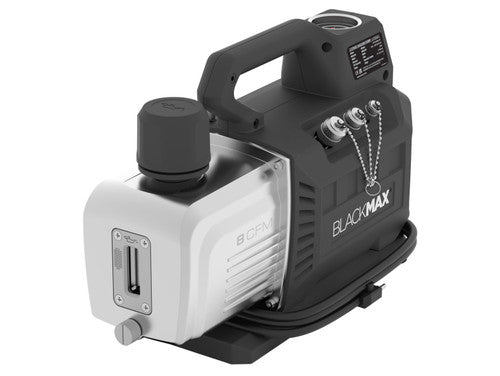

The CPS PRODUCTS VPBM8V BlackMax vacuum pump is designed for HVACR professionals. It features a lightweight and compact design with a 1 HP variable speed brushless DC motor. It is compatible with residual A1, A2L, A2, A3 refrigerants and has universal voltage (100 to 240VAC, 50/60Hz).

• Lightweight (22.4 Lbs / 10.1 Kg)
• Compact, portable size (0.57 cu. ft.)
• 1 HP, variable speed, brushless DC motor

Product Highlights

This vacuum pump has in-line hose connection ports, stores/operates in extreme temperatures, and features an auto shut-off solenoid valve and analog vacuum gauge.

Product Information

Standard Information

• Brand: CPS PRODUCTS
• Manufacturer Part Number: VPBM8V

Technical Specifications

• Maximum Free Air Displacement: 8 CFM
• Stage: 2
• Ultimate Vacuum: 15 Microns
• Refrigerant Class: Compatible With Residual A1, A2L, A2, A3 Refrigerants (Not A Recovery Machine)
• Voltage: Universal Voltage: 100V min- 240V max, 50/60Hz
• Maximum RPM: 3200
• Motor Size (HP): 1 HP
• Watts: 500
• Ignition Proof On/Off Switch: Flashing Green: Standby; Solid Green: Pump Is Running
• Power Cord: Locking 90° IEC Type, 10 Ft (3m) Length
• Vacuum Pump Oil Capacity (Max): 24.4 Oz (0.72 L)
• Exhaust/Oil Fill Cap: Mist Free
• Analog Vacuum Gauge: Units: kPa, InHg (Accuracy +/-2%)
• Gas Ballast Valve: Drys Out The 2nd Stage. Plated Brass
• Solenoid Valve: Normally Closed. Open When Vacuum Pump Is Energized
• Operating Temperature Range: 5°F to 130°F (-15°C to 55°C)
• Thermal Overload Protection: Yes
• Pump Weight (W/o Pkg): 22.4 Lbs (10.1 Kg)
• Approvals: CE and UKCA (Tested to UL 12.12.01 Methods For Ignition Proof Requirements Per UL1963 Supplement SB)
• EMC (Electro-Magnetic Compatibility): EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-6-1:2019; EN IEC 61000-6-3:2021
• Vacuum Intake Ports (In-Line): 1/4 in., 3/8 in., and 1/2 in. SAE Male Threads
• Brand: CPS Products
