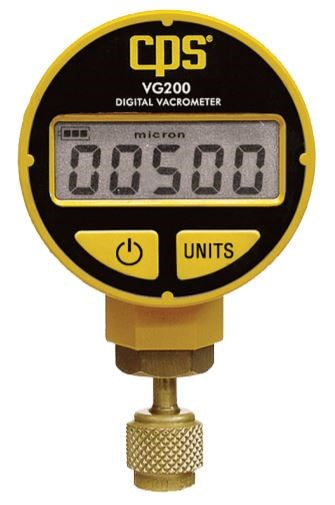

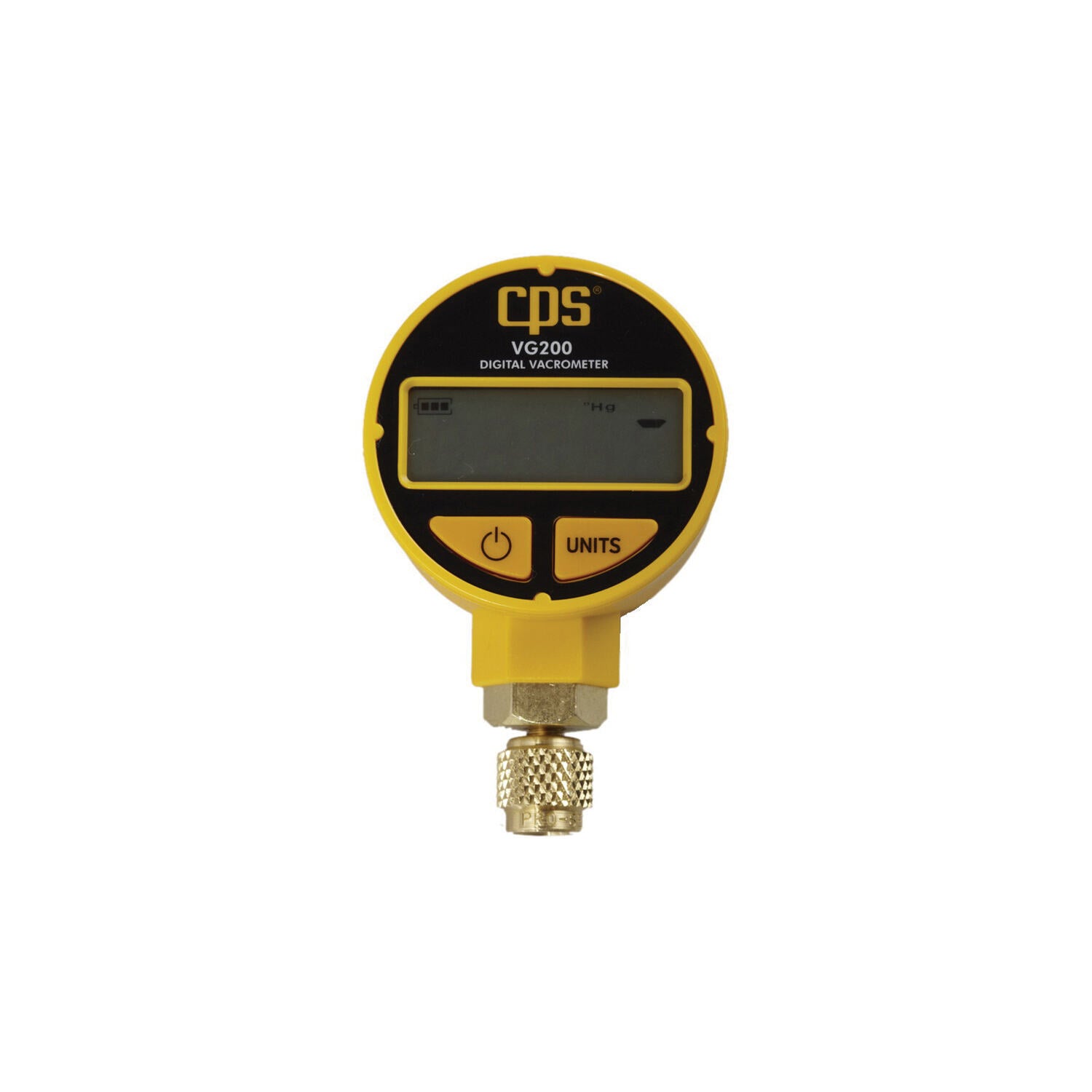

CPS Products VG200 Vacuum Gauge Atmospheric to 1 Micron 1/4 Female SAE 400 psi

Product Description

The CPS Products VG200 is a digital vacuum gauge designed to monitor vacuum levels during evacuation processes. This device features a one-quarter inch female SAE connection and maintains an accuracy of plus or minus ten percent of reading. With strict adherence to NIST standards, this gauge is known for its reliability. Users can select from multiple measurement units, including microns, millibar, torr, and inches of mercury, utilizing a user-friendly two-button interface.

• Calibrated to strict NIST standards.
• Large 5-digit LCD display for easy reading.
• Automatic temperature compensation.

Product Highlights

The VG200 is equipped with a cleanable thermistor sensor that can withstand positive pressures up to four hundred psi. This model includes necessary accessories such as a brass T-adapter, a hanging hook, and a carrying case.

Product Information

Standard Information

• Brand: CPS Products
• Connection Type: 1/4 in Female SAE

Technical Specifications

• Accuracy: +/- 10% of Reading
• Dimensions: 5 in H x 1.6 in D x 2.7 in Dia
• Temperature Rating: 32 to 122 deg F
