Cps Products tlmsp 6-in-1 Multi-swage Punch Tool

Product Description

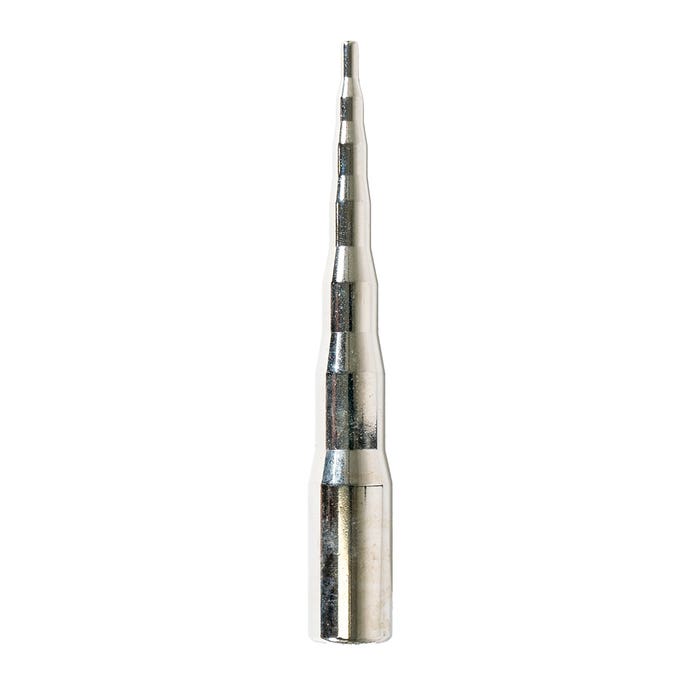

The CPS PRODUCTS tlmsp is a 6-in-1 Multi-Swage Punch Tool designed for HVAC and refrigeration tubing work. Chrome-plated for strength and long service life, it handles six common outside-diameter tubing sizes in a single tool: 3/16, 1/4, 5/16, 3/8, 1/2, and 5/8 inches O.D. This makes it well-suited for technicians who swage copper tubing connections in the field without carrying multiple dedicated punches. The chrome plating resists corrosion and wear under regular service conditions.

This tool is used in residential and light commercial HVAC and refrigeration applications wherever copper tubing must be swaged to create tight, solder-ready joints. It is a standard addition to the service kit of HVAC technicians and refrigeration mechanics who regularly work with line sets, evaporator coil connections, and condenser piping in a range of standard tubing sizes.

Key Features

• Handles 6 tubing sizes: 3/16, 1/4, 5/16, 3/8, 1/2, and 5/8 inches O.D.
• Chrome-plated construction for corrosion resistance and durability
• Consolidates multiple swage punch sizes into one tool
• Suited for copper tubing used in HVAC and refrigeration line work

Compatibility

Designed for use with standard copper O.D. tubing sizes commonly found in residential and light commercial HVAC and refrigeration systems.

Installation Notes

This tool is used by licensed HVAC technicians and refrigeration mechanics during tubing fabrication and repair. Always recover refrigerant and relieve system pressure before opening any refrigerant circuit. Follow applicable mechanical and refrigeration codes, including EPA Section 608 requirements, when working on systems containing refrigerant. Inspect the swaged joint for proper depth and roundness before soldering or brazing.

Technical Specifications

• Tubing Sizes Supported: 3/16, 1/4, 5/16, 3/8, 1/2, and 5/8 inches O.D.
• Finish: Chrome plated
• Number of Functions: 6
• Condition: New

Standard Information

• Brand: CPS PRODUCTS
• Manufacturer Part Number: tlmsp
