Cps Products mv2h4p5z Vortech 2-valve Manifold Gauge Set

Product Description

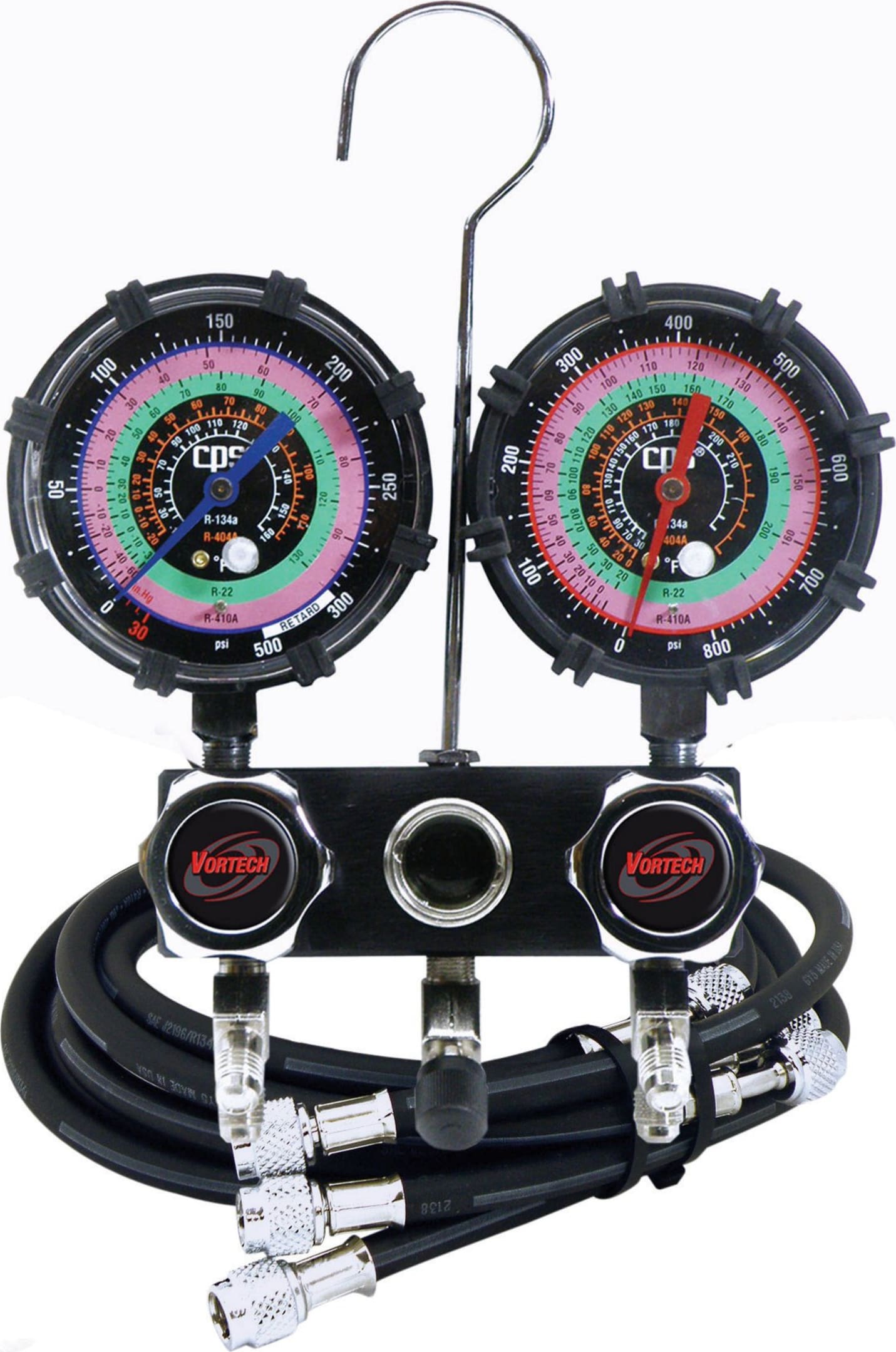

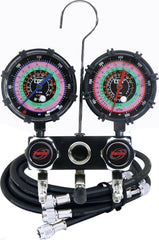

The CPS PRODUCTS mv2h4p5z Blackmax Vortech is a 2-valve refrigerant manifold gauge set built for HVAC technicians working with multiple common refrigerants. The body is constructed from anodized aluminum with 1/4-inch SAE 45 low-loss fittings and an integrated sight glass. Each gauge measures 3-1/8 inches (80mm) in diameter and is rated Class 1.0 with an internal silicone dampening cup for flutter-free readings under varying system pressures. The included 5-foot premium hose set connects directly to the manifold, making this a complete service tool ready for field use.

This manifold is suited for residential and light commercial HVAC service work involving R-134A, R-22, R-404A, and R-410A refrigerant systems. Typical applications include system evacuation, charging, pressure testing, and diagnostic work on split systems, package units, and refrigeration equipment. The Vortech deep vacuum valves support low-loss service procedures, making the set appropriate for shops and field techs who require accurate, repeatable results across multiple refrigerant types.

Key Features

• 2-valve anodized aluminum body with integrated sight glass
• Vortech Deep Vacuum Valves for low-loss refrigerant handling
• 3-1/8-inch (80mm) Class 1.0 gauges with silicone dampening cup for flutter-free operation
• Compatible with R-134A, R-22, R-404A, and R-410A refrigerants
• Includes 5-foot premium hose set with 1/4-inch SAE 45 low-loss fittings
• Pressure scales in PSI and temperature scales in degrees F
• Manufactured in the United States

Compatibility

Designed for use with R-134A, R-22, R-404A, and R-410A refrigerant systems in residential and light commercial HVAC and refrigeration service applications.

Installation Notes

Installation and service using this manifold set should be performed by an EPA 608-certified HVAC technician. Always recover refrigerant in compliance with applicable regulations before opening a system. Inspect hose connections and fittings for leaks before beginning service procedures. Manifold gauge sets should be stored with valve stems closed and hose ends capped to prevent contamination.

Technical Specifications

• Refrigerant Compatibility: R-134A, R-22, R-404A, R-410A
• Valve Type: Vortech Deep Vacuum Valves
• Number of Valves: 2
• Body Material: Anodized Aluminum
• Gauge Diameter: 3-1/8 inches (80mm)
• Gauge Class: Class 1.0
• Fitting Style: Low Loss, 1/4-inch SAE 45
• Hose Length: 60 inches
• Pressure Scale: PSI
• Temperature Scale: degrees F
• Product Height: 4 inches
• Product Length: 10.75 inches
• Product Width: 10.75 inches
• Country of Origin: United States
• Warranty: 1 Year

Standard Information

• Brand: CPS PRODUCTS
• Manufacturer Part Number: mv2h4p5z
