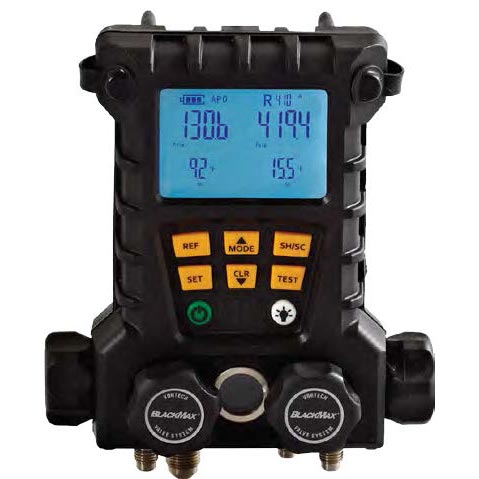

CPS Products MD100WVHE 4-Valve Wireless Digital Manifold

Product Description

The CPS Products MD100WVHE is a 4-valve wireless digital manifold. This device is designed for use with conventional manifolds or can connect wirelessly with any iOS or Android mobile device using the Manifold Link app.

• Real-time system measurements
• Supports 105 refrigerants with quick access to favorites
• Data logging and display of multiple system tests

Product Highlights

This digital manifold offers a variety of features for HVAC professionals.

Product Information

Standard Information

• Brand: CPS Products
• Part Number: T2174

Technical Specifications

• High side pressure range: -14.5 to 800.0 PSIG (-1.0 to 55 bar)
• Low side pressure range: -14.5 to 800.0 PSIG (-1.0 to 55 bar)
• Pressure reading accuracy: +/- 1% of reading or +/- 0.5 PSIG (+/- 0.05 bar)
• Temperature range: -58.0 °F to 302 °F (-50 °C to 150 °C)
• Weight: 3.3 lb. (1.5 kg)
• Dimensions: 8.1 in x 3.5 in x 7.0 in
• Communication range: 300 ft. (max)
• Power source: 4 industrial alkaline AA batteries (included)
