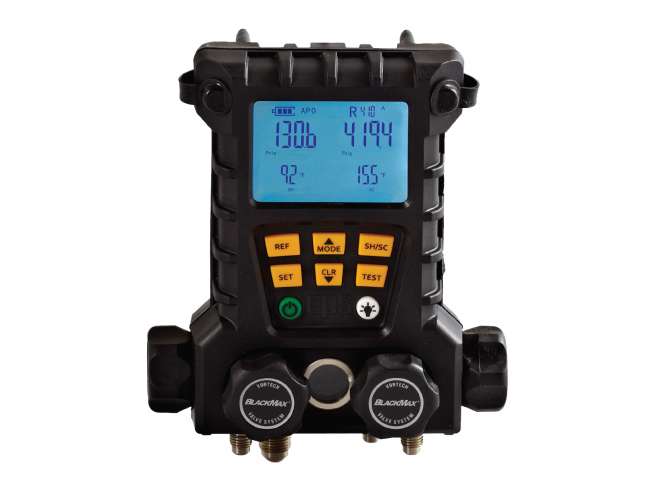

Cps Products md100 blackmax 4-valve digital manifold

Product Description

The CPS PRODUCTS MD100 BlackMAX® 4-Valve Digital Manifold features patented modular test and measurement system technology. It delivers best-in-class accuracy for pressure, temperature, and vacuum readings. Its rugged, water-resistant design includes a high-strength, glass-filled nylon housing and a precision-machined anodized aluminum manifold body.

• Patented Modular Test & Measurement System Technology
• Best-In-Class Accuracy For pressure, temperature and vacuum
• Rugged Design
• Simplicity & Versatility

Product Highlights

This digital manifold supports 105 common refrigerants and is compatible with R744 subcritical CO2 refrigerants. It offers one-touch access to 5 favorite refrigerants and provides 25 hours of continuous use with full backlight illumination.

Product Information

Standard Information

• Brand: CPS PRODUCTS
• Manufacturer Part Number: MD100

Technical Specifications

• High side pressure range: -14.5 to 800.0 PSIG (-1.0 to 55 bar)
• Low side pressure range: -14.5 to 800.0 PSIG (-1.0 to 55 bar)
• Pressure reading accuracy: +/- 1% of reading or +/- 0.5 PSIG (+/- 0.05 bar)
• Pressure reading resolution: 0.5 PSIG (0.05 bar)
• High and low side burst pressure: 1500.0 PSIG (103.4 bar)
• High side temperature range: -58.0 °F to 302 °F (-50 °C to 150°C)
• Low side temperature range: -58.0 °F to 302 °F (-50 °C to 150°C)
• Temperature reading accuracy: +/- 0.36 °F (+/- 0.2°C)
• Vacuum indication accuracy: +/- 10 microns (requires MDXVG accessory)
• SH, SC & saturation temperature accuracy: +/- 0.5°F (+/- 0.3°C)
• Instrument working temperature: -4.0 °F to 122°F (-20°C to 50°C)
• Instrument working RH range: 0% to 100% non-condensing
• APO (Automatic Power Off): 10 minutes. Can be disabled by user.
• 4 valve size (L x H x W): 8.1” x 3.5” x 7.0” (20.5 cm x 8.9 cm x 17.8cm)
• 4 valve weight: 3.3 lb. (1.5 kg)
• Display Life using 4 industrial alkaline AA batteries (included) Backlight full ON: 25+ hrs. continuous duty
• Display Life using 4 industrial alkaline AA batteries (included) Backlight full OFF: 60+ hrs. continuous duty
• Display Life using 4 Rechargeable NiMH AA batteries (not included) Backlight full ON: 20+ hrs. continuous duty from full charge
• Display Life using 4 Rechargeable NiMH AA batteries (not included) Backlight full OFF: 50+ hrs. continuous duty from full charge
• High and Low Side Pressure Range: -14.5 to 800 psig (-1 to 55 bar)
• Pressure Reading Accuracy: ±1% of reading or ±0.5psig (±0.05 bar)
• Pressure Reading Resolution: 0.5 psig (0.05 bar)
• High and Low Side Burst Pressure: 1,500 psig (103.4 bar)
• High and Low Side Temperature Range: -58 to 302°F (-50 to 150°C)
• Operating Temperature: -4 to 122°F (-20 to 50°)
• Operating RH Range: 0 to 100% non-condensing
• Automatic Power Off: 10 minutes. Can be disabled by user
• Dimensions: 8.1 x 3.5 x 7" (20.5 x 8.9 x 17.8 cm)
• Weight: 3.3 lb (1.5 kg)
• Battery Life Backlight Full ON: 20 to 25+ hrs. Continuous Duty
• Battery Life Backlight Full OFF: 50 to 60+ hrs. Continuous Duty
