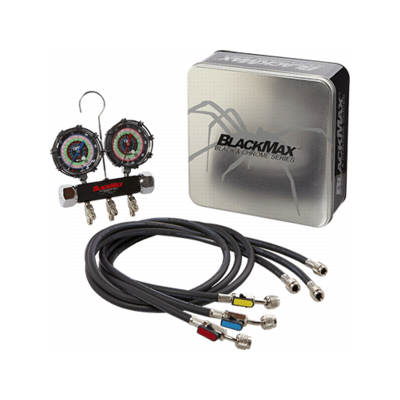

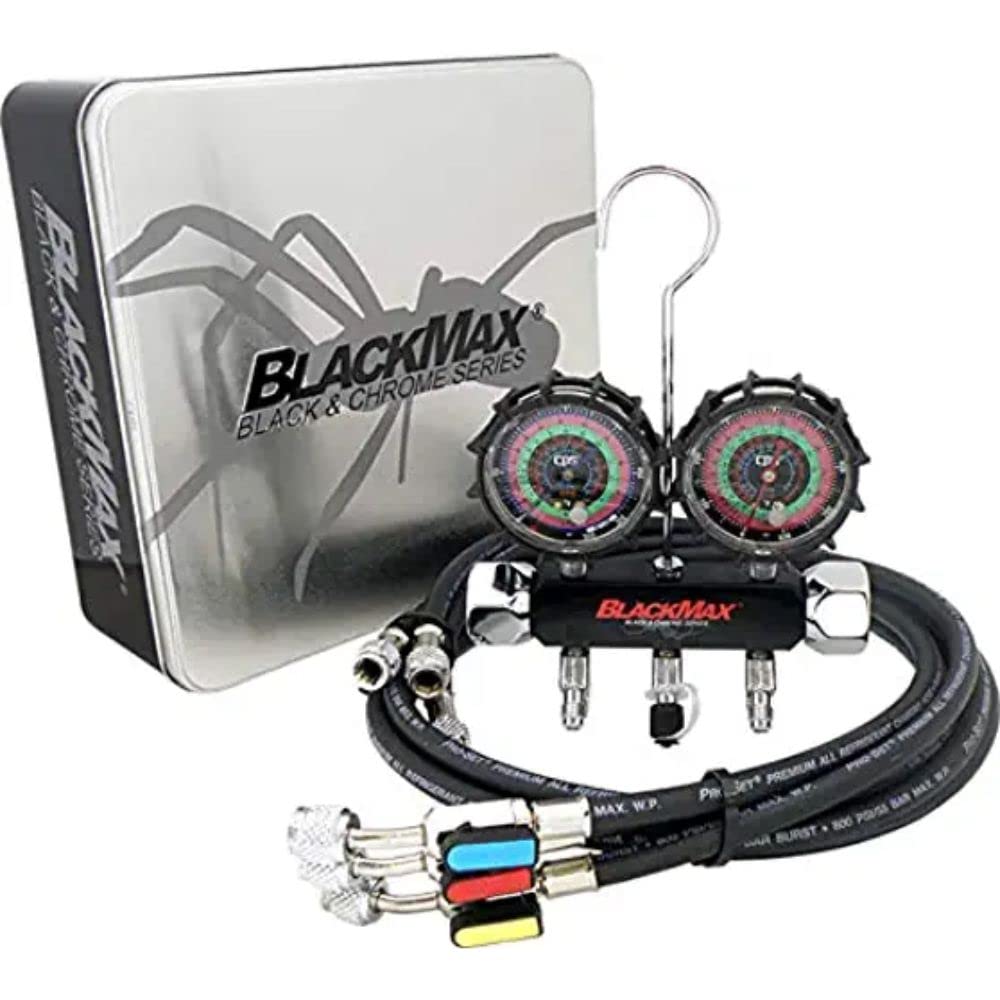

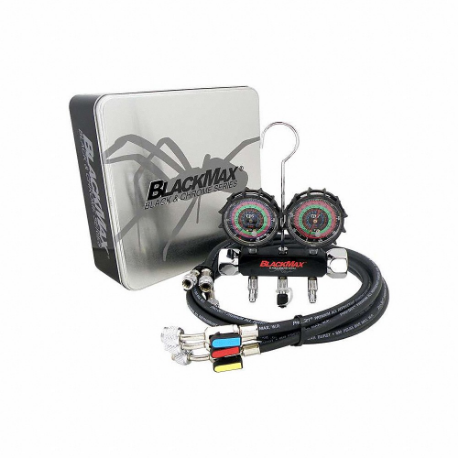

Cps Products MBH4P5EZ Manifold Max Piston 3-1/8 Inch 2-Valve R22 R134A R404A R410A 5 Foot BV

Product Description

The CPS Products MBH4P5EZ is a 2-Valve Manifold designed for HVAC/R applications. It features a 2-valve anodized aluminum body with 1/4 inch SAE 45 degree fittings and Triple Seal piston valves. The manifold includes 3 1/8 inch (80mm) Class 1.0 gauges with internal silicon dampening for flutter-free operation. It supports R-134a, R-22, R-404A, and R-410A refrigerant scales, PSI pressure scales, and Fahrenheit temperature scales. An extra access port with a Schrader valve is included.

• 2-valve anodized aluminum body with 1/4 inch SAE 45 degree fittings.
• Triple Seal piston valves and 3 1/8 inch (80mm) Class 1.0 gauges with internal silicon dampening.
• Supports R-134a, R-22, R-404A, R-410A refrigerant scales, PSI pressure, and Fahrenheit temperature.

Product Highlights

This manifold features a durable anodized aluminum body, Triple Seal piston valves, and accurate 3 1/8 inch gauges for R-134a, R-22, R-404A, and R-410A refrigerants.

Product Information

Standard Information

• Brand: CPS PRODUCTS
• Manufacturer Part Number: MBH4P5EZ
• Country of Origin: USA

Technical Specifications

• MPN: MBH4P5EZ
• SKU: mbh4p5ez
• Brand: CPS Products
• Unit of Measure: Each
• Body Type: 2 valve anodized aluminum with 1/4 inch SAE 45 degree fittings
• Valve Type: Triple Seal piston
• Gauge Type: 3 1/8 inch (80mm) Class 1.0 with internal silicon dampening
• Access Port: Center with Schrader valve
• Refrigerant Compatibility: R-134a, R-22, R-404A, R-410A
• Pressure Units: PSI
• Temperature Units: Fahrenheit
• Hose Type: 3 premium 5ft Pro-Set with 1/4 inch SAE 45 degree ball valves
• Condition: New
• Body Material: Anodized Aluminum
• Package Quantity: 1
• Included Components: Tool
• Batteries Included: No
• Batteries Required: No
• Country of Origin: United States
• UPC: 750377101571
• Manifold Series: BlackMAX Triple-Seal 2-Valve Black & Chrome Series
• Fittings: 3 x 1/4 inch SAE 45 degree
• Product Type: Mechanical Manifold Gauge Set
• A2L Compatibility: Not A2L Compatible
• Accuracy: -1% to +1%
• Calibration Certificate: Not Certified
• Display Illumination: Non-Illuminated
• Display Type: Analog
• Gauge Diameter: 3 1/8 inch
• High Side Gauge Range: 0 psi to 800 psi
• Low Side Gauge Range: 30 in. hg to 500 psi
• Hose Color: Black
• Hose Connection Thread Direction: Right Hand
• Hose Connection Type: Ball Valve, SAE
• Hose Length: 5 feet
• Manifold Port Connection Gender: Male
• Manifold Port Connection Size: 1/4 inch
• Manifold Port Connection Thread Direction: Right-Hand
• Manifold Port Connection Type: SAE
• Number of Hoses: 3
• Pressure Resolution: 0.1 psi
• Response Time: Instantaneous
• Standards: UL/SAE
• Temperature Resolution: 1°F
• Vacuum Port Connection Gender: Female
• Vacuum Port Size: 1/4 inch
