Cps Products Ls790b Leak-Seeker Refrigerant Leak Detector

Product Description

The CPS PRODUCTS LS790B Leak-Seeker combines advanced microcomputer circuitry with Ion-pump sensor technology for highly sensitive and accurate refrigerant leak detection. It features over 100 computer-generated tones and a high-intensity bar graph display. The detector is individually calibrated to detect a leak rate of better than 0.25 oz/yr (7g/yr) of HFC and can detect all non-combustible CFC, HCFC, HFC gases and blends.

• Individually calibrated to detect a leak rate of better than 0.25 oz/yr (7g/yr) of HFC
• Patented Ion-Pump sensor technology proven effective in detecting all refrigerant types
• Patented water vapor filter provides greater stability under high humidity conditions

Product Highlights

The LS790B Leak-Seeker features patented automatic calibration, user-selectable sensitivity ranges, and a lock-out mode for locating leaks in contaminated zones. It operates between 0 to 140°F and has an auto-off function.

Product Information

Standard Information

• Brand: CPS PRODUCTS
• Manufacturer Part Number: LS790B
• Country of Origin: United States

Technical Specifications

• Country of Origin (subject to change): United States
• Detector Type: Proprietary Ion-Pump sensor with built-in selective filter housing
• Sensitivity: Better than 0.25 oz (7g) / year leak rate of HFC
• Sensitivity Selection: Manual
• Refrigerant Sensitivity: All, including those with hydrocarbon components (CFC, HCFC, HFC, HFO, NH3, HC)

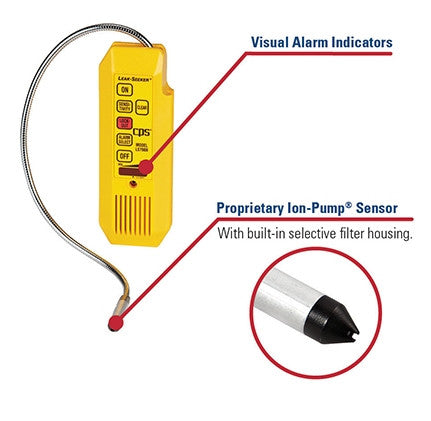

• Visual Alarm: High intensity LED (Varies in brightness) High intensity bar graph display
• Flex Probe: 18˝ long metal flex probe
• Operating Temperature: 0 to 140ºF (-18 to 60ºC)
• Controls: 6 button keypad
• Power (Battery Life): (4) AA alkaline batteries (>40 hr continuous use)
• Audible Alarms: 128 computer generated tones to precisely guide user to the source of the leak
• Lock-Out Mode: Yes
• Low Battery Indication: Center LED above “*” lights during operation
• Auto-Off: Yes, after 15 minutes of inactivity
• Sensor Life: Replace seasonally
