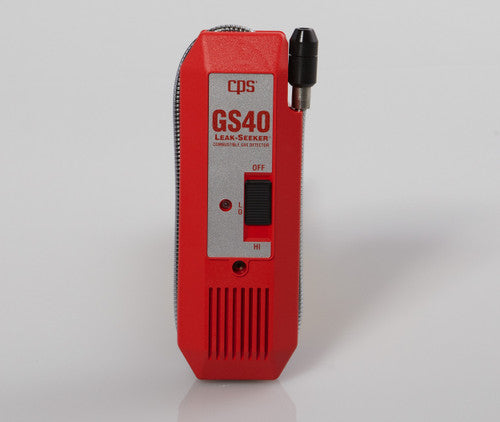

Cps Products GS40 Electronic Combustible Gas Leak Detector

Product Description

The CPS PRODUCTS GS40 Electronic Combustible Gas Leak Detector is a handheld solution for detecting combustible gases. Features an advanced semiconductor sensor with audible alarm that intensifies as gas concentration increases. Offers a warm-up time of 30 seconds and a response time of less than 20 seconds. Includes an 18-inch probe for hard-to-reach areas.

• Audible and visual alarms ensure easy leak detection
• Detects a variety of combustible gases, including propane and methane
• Lightweight and portable for user convenience

Product Highlights

Detects combustible gases with audible and visual alerts. Features a rapid response time and includes a probe for extended reach.

Product Information

Standard Information

• Brand: CPS PRODUCTS
• Manufacturer Part Number: GS40
• Country of Origin: USA

Technical Specifications

• Alarm Indication: Both visual and audible (>40db) alarms
• Sampling: Natural diffusion
• Sensitivity: 25 to 1000 PPM, depending on impurity type
• Sensor Warm-Up Time: Approximately 30 seconds
• Response Time: Less than 20 seconds
• Operating Temperature: 15°F to 104°F (-10°C to 40°C)
• Power Requirements: 4 AA alkaline or NiMH batteries
• Battery Life: 20 hours (AA alkaline) / 10 hours (NiMH)
• Probe Length: 18 in. (46 cm)
• Detecting Range: 0 – 100% LEL referenced to methane
• Low Level Alarm: Preset at 10% Methane LEL
• High Level Alarm: Preset at 30% Methane LEL
• Operating Conditions: 0°F to 140°F (-20°C to +40°C) at less than 98% RH (non-condensing)
• Power: 3VDC working voltage using four 1.5V AA batteries
• Battery Life/Indicator: 20 hr continuous use. Orange LED constant on when low battery
• Gases Measured: Carbon Monoxide, Natural Gas, Propane, Ammonia, Methane, Acetone, Hydrogen, and Iso-Butane
• Power Source: 1.5V AA Batteries
• Temperature Rating: -0 to 140 Deg F Operating
• Type: Handheld, Electronic Combustible
• Applications: For Inspection of Furnaces, Valves, Regulators, Pipelines, Meters and Other Devices Associated with Combustible Gas
• Model: GS40
• Detection: Butane Gas, Hydrogen Gas, Methane Gas, Propane Gas
• Brand: CPS
