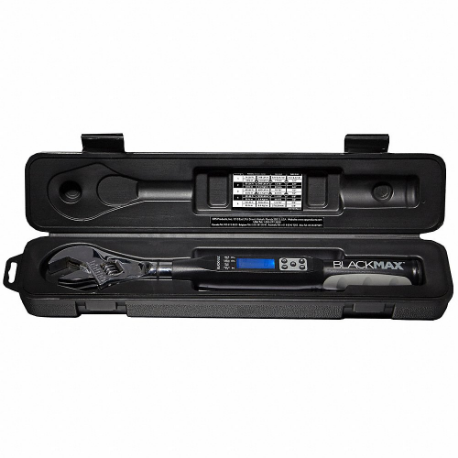

Cps Products CPSBTLDTW BlackMax Digital Torque Wrench 8 to 85 N-m (15.25 in) 60WA11

Product Description

Cps Products CPSBTLDTW is a digital torque wrench that measures 8 to 85 N-m (70.8 to 752 in�lb) with 0.1 N-m adjustability and an accuracy of �2% (10 to 100% of full scale). It operates on 2 _ AAA batteries (3V) and includes a NIST calibration certificate. The wrench provides Peak and Track display modes, audible/visual/tactile alerts, 5 factory plus 5 user presets, a flexible head and an ergonomic handle for HVAC/R and general torque-controlled fastening.

• Torque range 8�85 N�m (70.8�752 in�lb), 0.1 N�m increments; selectable units include N�m, lbf�in, lbf�ft, kgf�m
• Alerts and modes: audible tone, LED light bar, vibration; Peak and Track display modes; memory presets (5 factory + 5 user)
• Power and certification: 2 _ AAA batteries (3V) supplied; NIST calibration certificate included; overall length 15.25 in; wrench weight 2.79 lbs

Product Highlights

Digital torque wrench, 8�85 N�m range, 0.1 N�m increments, Peak/Track modes, audible/LED/vibration alerts, NIST calibration certificate

Product Information

Standard Information

• Brand: CPS PRODUCTS
• Manufacturer Part Number: CPSBTLDTW

Technical Specifications

• Brand: Cps Products
• Manufacturer Part Number: CPSBTLDTW
• Model: BTLDTW
• Product Type: Digital torque wrench
• Torque Range: 8 to 85 N-m (70.8 to 752 in�lb)
• Torque Units: N-m, lbf�in, lbf�ft, kgf�m
• Torque Increments: 0.1 N-m
• Accuracy: �2% (10 to 100% of full scale), clockwise and counterclockwise
• Torque Measurement Type: Newton meter
• Torque Adjustability: Adjustable
• Operating Voltage: 3 V (2 _ AAA batteries)
• Power Source: 2 _ AAA batteries (supplied)
• Batteries Included: Yes (2 _ AAA)
• Calibration Certificate: NIST calibration certificate included
• Material: Stainless steel
• Finish: Chrome
• Handle Type: Ergonomic
• Head Type: Flexible
• Included Accessories: (2) AAA batteries, adaptors, drivers and sockets, extensions
• Alerts: Audible tone, LED light bar, tactile vibration
• Memory Presets: 5 factory presets + 5 user-defined presets
• Display Modes: Peak and Track
• Operating Temperature: 32 to 104�F (0 to 40�C)
• Length: 15.25 in (15 1/4 in)
• Width: 4 in
• Weight (manufacturer spec): 2.79 lbs (1.27 kg)
• Cross Reference: 60WA11
