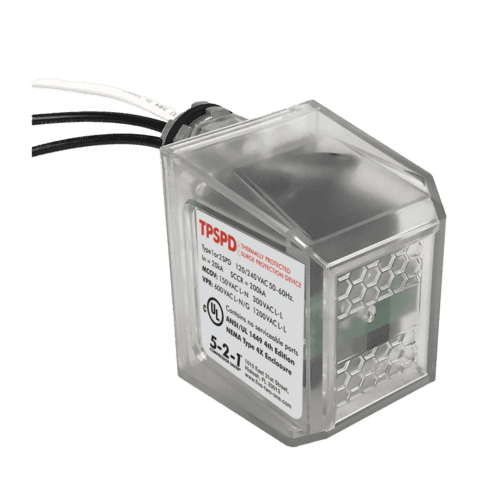

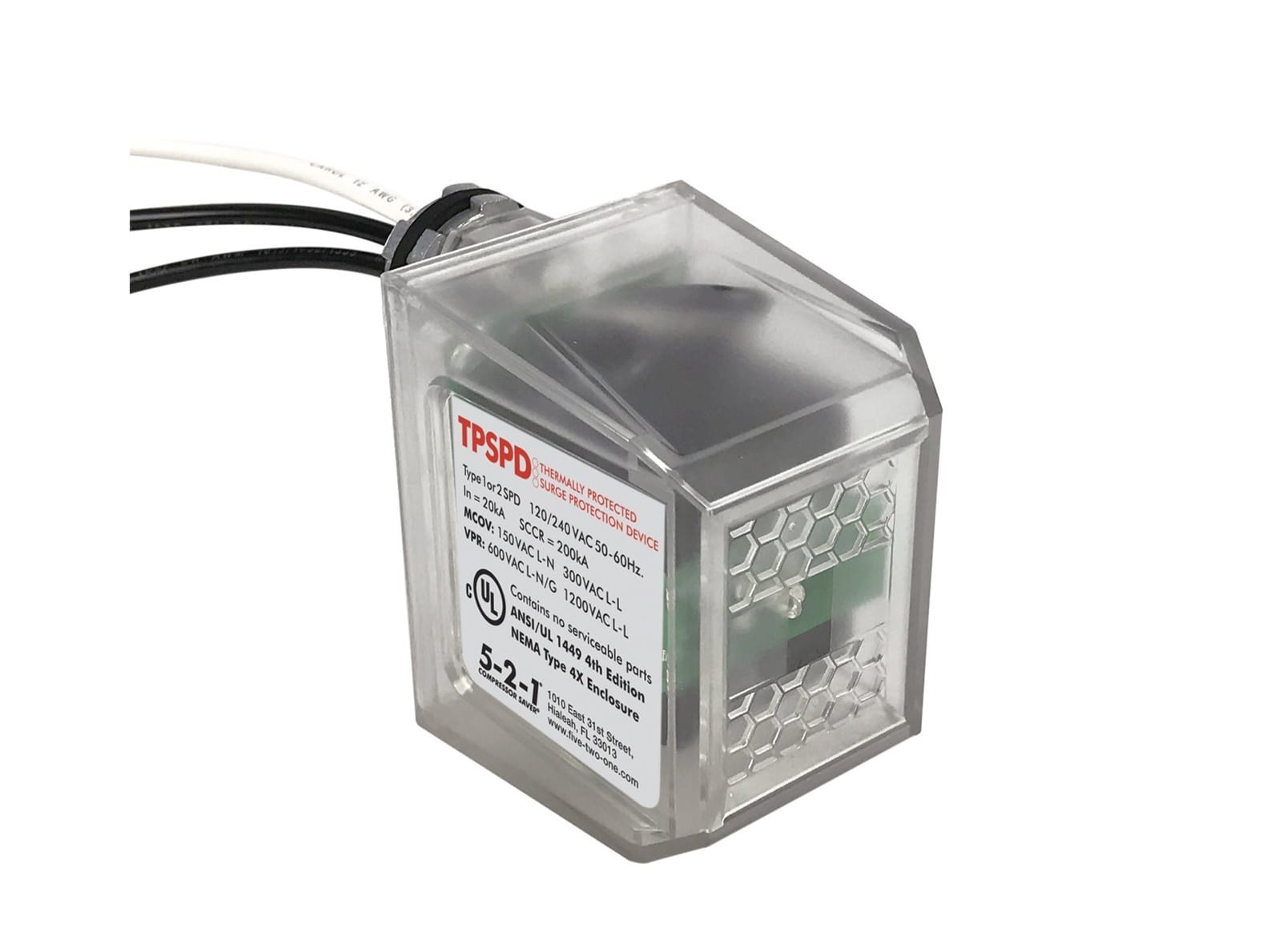

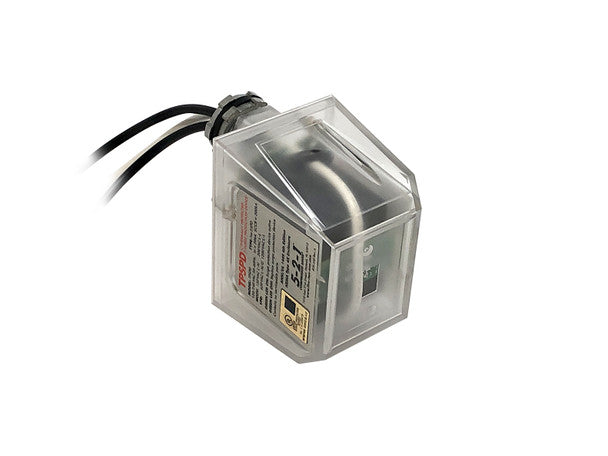

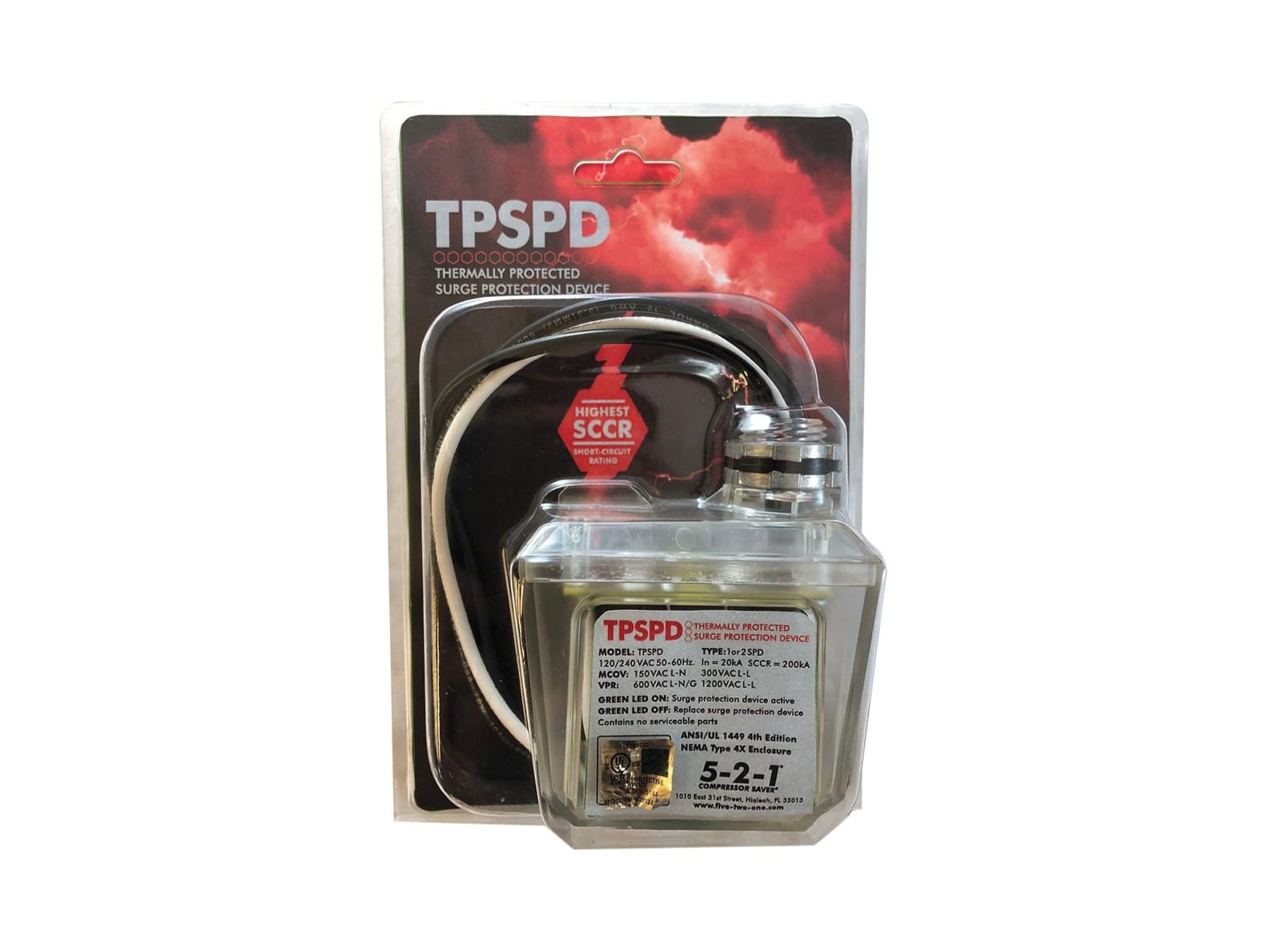

CPS PRODUCTS CPS-TPSPD 5-2-1 Thermally Protected Surge Protection Device

Product Description

The CPS PRODUCTS CPS-TPSPD is a surge protection device meant to safeguard equipment against electrical surges. This model features a patent-protected thermally safeguarded Metal Oxide Varistor (MOV). It is appropriate for both Type 1 and Type 2 installations, including A/C disconnects, junction boxes, and electrical boxes. The NEMA 4X rated enclosure makes it suitable for both outdoor and indoor setups. A diagnostic LED indicator provides status updates; if it is lit, the device is operational, and if it is off, replacement is necessary.

• Features a NEMA 4X enclosure for versatile installations.
• Protects against surges up to 100,000 Amps.
• Integrated diagnostic LED displays operational status.

Product Highlights

This surge protection device is designed for high efficiency and reliability, ensuring safety for electrical components.

Product Information

Standard Information

• Brand: CPS PRODUCTS
• MPN: CPS-TPSPD

Technical Specifications

• Maximum Surge Current: 100,000 Amps
• SPD Type: 1 or 2
• Service Voltage (VAC): 120/240 (single phase), 50 or 60 Hz
• Nominal Discharge Current Rating: 20 kA
• Short Circuit Rating (SCCR): 200 kA
• Maximum Continuous Operating Voltage (MCOV): 150 VAC L-N, 300 VAC L-L
• Voltage Protection Rating (VPR): 600 VAC L-N/G, 1200 VAC L-L
• Operating Temperature: -10 to 50 °C
• Diagnostic Indicator: Green LED (ON) Active Protection, Green LED (OFF) Replace Device
• Approvals: UL 1449 4th Edition, ANSI, cUL
• Enclosure: NEMA 4X
• Installation: Electrical Disconnect, Junction Box, Electrical Panel
• Warranty: 3 years, with a Connected Equipment warranty up to $10,000
