Cps Products CPS-MT2H7P5E Manifold Gauge Set R-134A R-22

Product Description

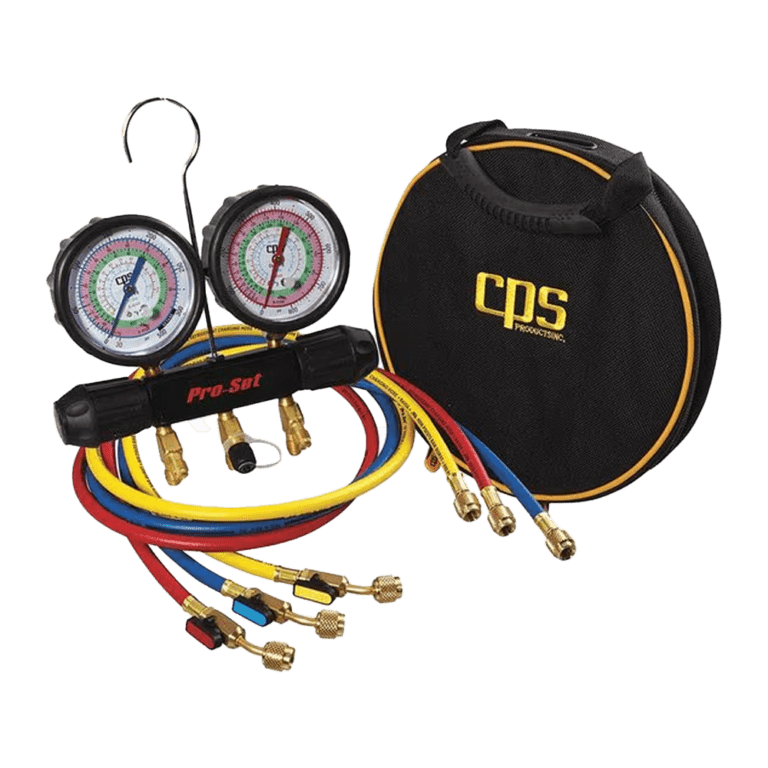

The CPS PRODUCTS CPS-MT2H7P5E is a 2-valve manifold gauge set from the Workingmans Choice series, built for HVAC technicians servicing systems charged with R-134A, R-22, R-404A, or R-410A refrigerant. The block body is anodized aluminum with 1/4 SAE 45-degree fittings and Triple Seal piston valves for reliable shutoff and leak resistance. Gauges measure 3-1/8 inches (80mm) in diameter and carry a Class 1.0 accuracy rating, making readings dependable in the field. A carrying case is included for transport and storage between jobs.

This manifold gauge set is suited for residential and light commercial HVAC service work. Technicians use it during system evacuation, charging, and pressure testing on split systems, package units, and refrigeration equipment running the four supported refrigerants. The sure-grip rubber-over-metal valve handles allow confident operation even with gloves on. An extra access port in the center with a Schrader valve adds flexibility for attaching vacuum gauges or additional service tools without breaking the manifold setup.

Key Features

• Anodized aluminum block body with 1/4 SAE 45-degree fittings for durability and standard compatibility
• Triple Seal piston valves provide positive shutoff and reduce refrigerant loss during service
• 3-1/8 inch (80mm) Class 1.0 accuracy gauges with protective boots for field-reliable readings
• Sure-grip rubber-over-metal valve handles for secure operation in varied conditions
• Extra center access port with Schrader valve for additional tool or gauge attachment
• Integrated hanging hook and included carrying case for organized transport and storage

Compatibility

Compatible with systems using R-134A, R-22, R-404A, and R-410A refrigerants. Designed as a multi-refrigerant manifold gauge set for use on residential and commercial HVAC and refrigeration equipment using these common refrigerant types.

Installation Notes

This gauge set is intended for use by licensed HVAC technicians in accordance with EPA Section 608 refrigerant handling requirements. Always recover refrigerant before opening the system and confirm refrigerant type before connecting to avoid cross-contamination. Inspect hose fittings and valve seats for wear before each use. Follow equipment manufacturer service procedures and applicable local codes when performing charging, recovery, or evacuation work.

Technical Specifications

• Refrigerant Compatibility: R-134A, R-22, R-404A, R-410A
• Valve Configuration: 2-valve manifold
• Body Material: Anodized aluminum
• Fitting Type: 1/4 SAE 45-degree
• Valve Type: Triple Seal piston valves
• Gauge Diameter: 3-1/8 inches (80mm)
• Gauge Accuracy Class: Class 1.0
• Center Port: Extra access port with Schrader valve

Standard Information

• Brand: CPS PRODUCTS
• Manufacturer Part Number: CPS-MT2H7P5E
