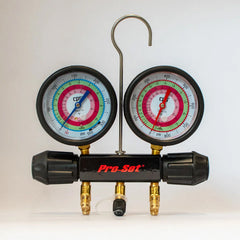

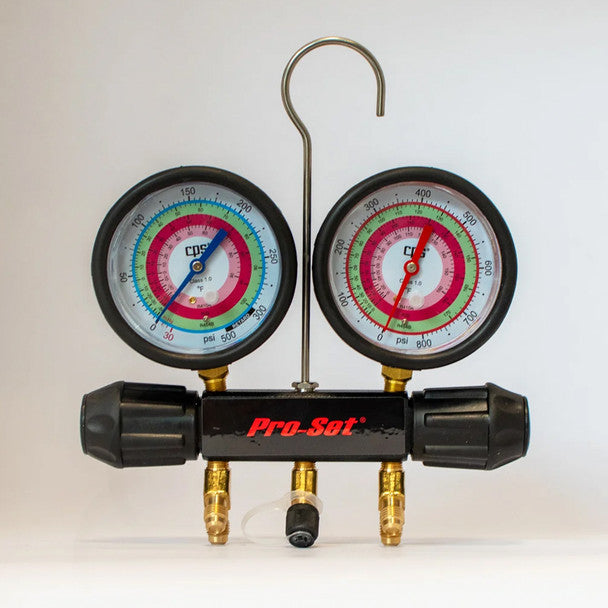

Cps Products CPS-MT2A7P5E 2-valve Pro-Set Workingman's Choice Triple-Seal Analog Manifold R-32/R-410A/R-454B/A2L 3-1/8 in. Gauges BV Hoses

Product Description

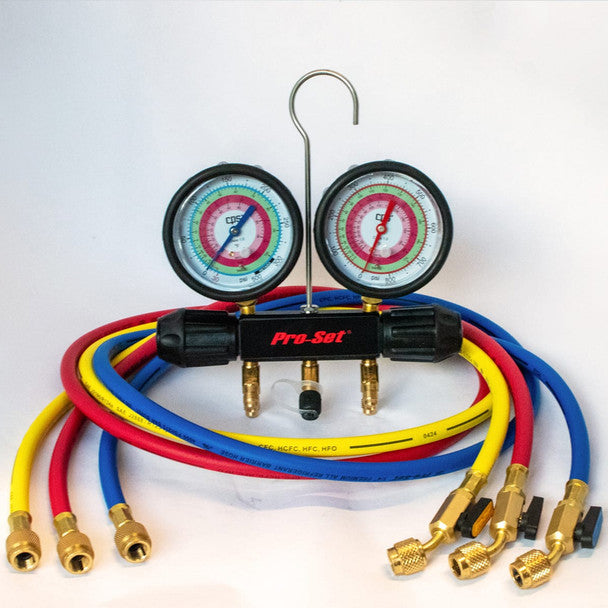

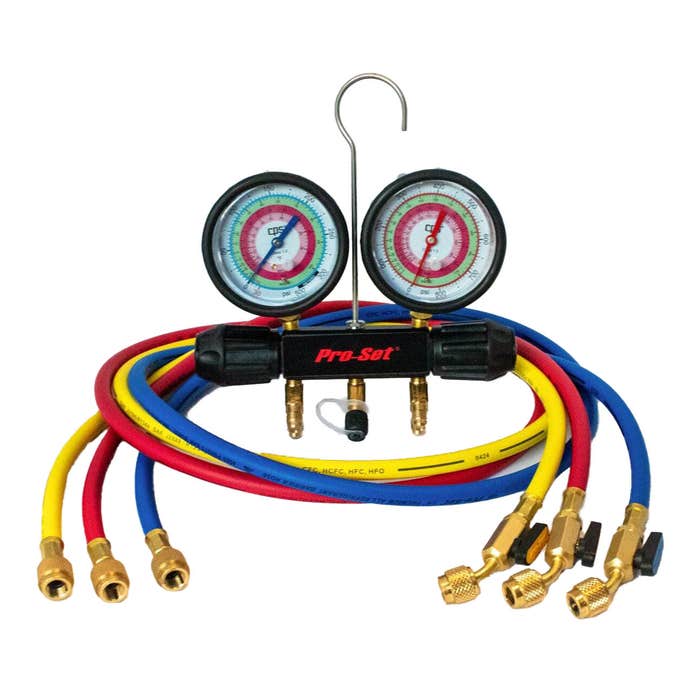

The CPS PRODUCTS CPS-MT2A7P5E is a 2-valve Pro-Set Workingman's Choice Triple-Seal Analog Manifold. It features an anodized aluminum black body, 1/4 in. SAE 45° fittings, and an extra access port with a Schrader valve. This manifold includes high-side and low-side gauges with class 1.0 accuracy and steel construction, suitable for R-32, R-410A, R-454B, and A2L refrigerant systems. The included 5 ft. Pro-Set Premium UL/SAE Barrier Refrigerant Service Hoses have ball valves and a nylon permeation barrier.

• Anodized aluminum black body with 1/4 in. SAE 45° fittings and extra access port.
• Triple-Seal piston valves engineered with a three Neoprene O-ring design for superior performance.
• Easy-to-read 3-1/8 in. gauges with class 1.0 accuracy and internal silicon dampening cup.

Product Highlights

Durable 2-valve analog manifold with triple-seal piston valves, accurate gauges, and UL listed barrier hoses for various refrigerants.

Product Information

Standard Information

• Brand: CPS PRODUCTS
• Manufacturer Part Number: CPS-MT2A7P5E

Technical Specifications

• Manifold Number of Valves: 2
• Manifold Fittings: 1/4 in. SAE 45°
• Display Style: Analog
• Refrigerant Compatibility: R-32/R-410A/R-454B/A2L
• Pressure Units: psi
• Temperature Units: °F
• Gauge Diameter: 3-1/8 in. (80 mm)
• Hose Color: Black
• Hose Length: 5 ft. (150 cm)
• Hose Ends: 1/4 in. Straight/Ball Valves
• Minimum Burst Pressure: 4000 psi (276 bar)
• Maximum Working Pressure: 800 psi (55 bar)
