Cps Products CPS-HP5E Premium 1/4 in Hoses With 45 Degree Ball Valve 5 ft Pack of 3

Product Description

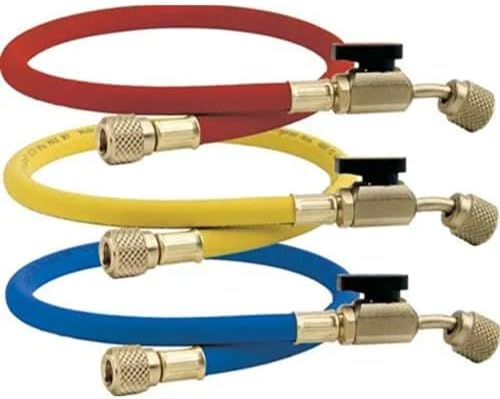

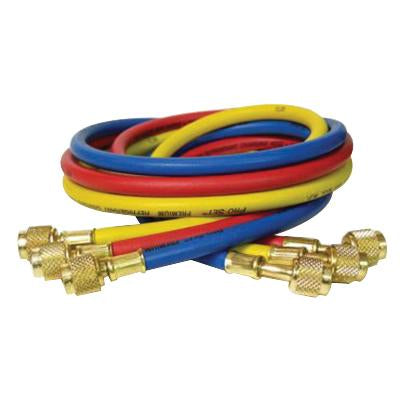

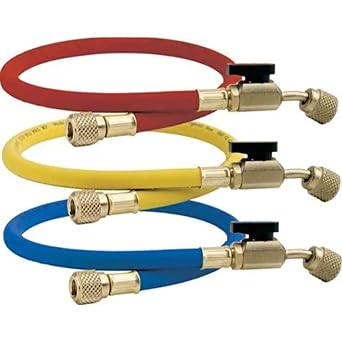

CPS Products CPS-HP5E is a set of three 5 ft refrigerant service hoses with 1/4 in SAE fittings and a 45 degree ball valve on one end. The hoses use synthetic rubber construction with an environment-friendly nylon permeation barrier that meets SAE J2196, leak-proof eight-sided crimp, and blow-off grooves. Rated 800 psi working pressure and 4000 psi burst, they are compatible with common refrigerants including R-410a.

• Rated 800 psi working pressure and 4000 psi burst pressure for refrigerant charging and service
• Each hose 5 ft long with 1/4 in SAE fittings and 45 degree ball valve; pack of three
• Leak-proof eight-sided crimp, double barrier protection, nylon permeation barrier (SAE J2196), and blow-off grooves

Product Highlights

3-pack 5 ft 1/4 in refrigerant hoses with 45° ball valves; 800 psi working, 4000 psi burst; nylon permeation barrier meets SAE J2196

Product Information

Standard Information

• Brand: CPS PRODUCTS
• Manufacturer Part Number: CPS-HP5E
• Country of Origin: China

Technical Specifications

• Brand: CPS Products
• Manufacturer Part Number: CPS-HP5E
• Model: HP5E
• Number of Hoses: 3
• Length: 5 ft (60 in)
• Hose Size: 1/4 in
• Fittings: 1/4 in SAE fittings with 45 degree bend on one end
• Ball Valve Angle: 45 degree
• Working Pressure: 800 psi
• Burst Pressure: 4000 psi
• Material: Synthetic rubber (with nylon permeation barrier)
• Permeation Barrier: Environment-friendly nylon, meets SAE J2196
• Construction: Leak-proof eight-sided crimp; double barrier protection
• Blow-off Grooves: Yes (channels refrigerant to prevent spray back)
• Compatible Refrigerants: CFC, HCFC, HFC refrigerants and blends (including R-410a)
• Nominal Wall Thickness: 0.065 in
• Item Weight: 2 Pounds
• Product Dimensions: 60 in L x 0.25 in W
• Country of Origin: China
• Additional Features: Extra deep knurling on nuts; adjustable valve core depressor
