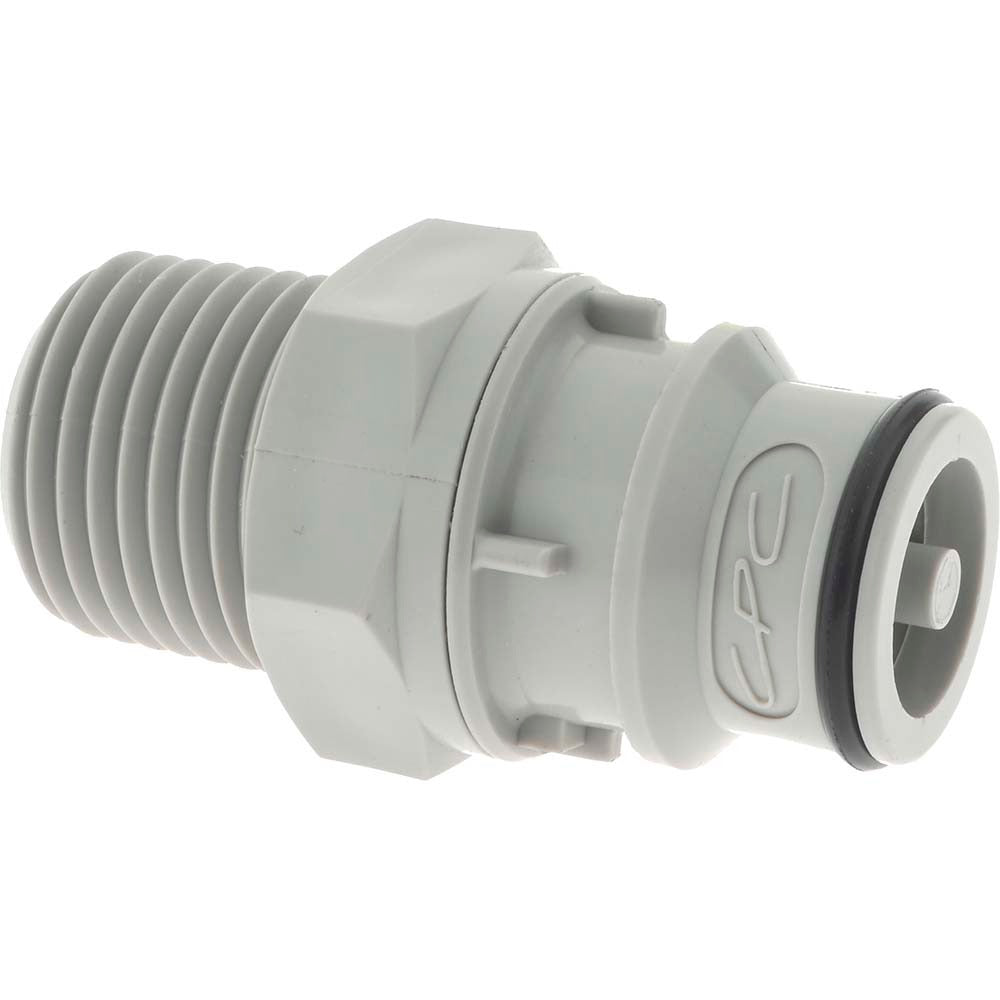

Cpc Colder Products HFC24812 Inline Threaded Male Plug

Product Description

The CPC COLDER PRODUCTS HFC24812 is an inline threaded male plug designed for fluid handling and cooling applications requiring a secure, leak-resistant shutoff. Built from polypropylene with an EPDM O-ring, this plug handles operating pressures up to 60 psi and temperatures ranging from 32 to 230 degrees F. The 1/2 NPT male thread connects directly to standard threaded ports, making it a straightforward component for plumbers, HVAC technicians, and industrial maintenance professionals working with liquid cooling lines, chemical transfer systems, or process fluid circuits.

This plug is suited for inline installations where a threaded male termination point is required. The polypropylene construction makes it appropriate for use with water, mild chemicals, and other media compatible with polypropylene and EPDM. Typical applications include laboratory fluid systems, light industrial cooling loops, and irrigation or fluid distribution assemblies where a 3/8 inch nominal flow path and 1/2 NPT threading are specified.

Key Features

• Polypropylene body provides corrosion resistance and compatibility with a wide range of fluid media
• EPDM O-ring seals the connection against leaks across the rated pressure and temperature range
• Rated to 60 psi maximum working pressure
• Operating temperature range of 32 to 230 degrees F suits both ambient and elevated-temperature service
• 1/2 NPT male thread for direct connection to standard threaded female ports
• 3/8 inch nominal flow size maintains consistent flow path sizing through the assembly

Compatibility

Designed as an OEM-style inline threaded male plug for fluid handling systems requiring a 1/2 NPT male connection with a 3/8 inch nominal flow size.

Installation Notes

Installation should be performed by a qualified plumber or fluid systems technician familiar with NPT threaded fittings. Depressurize and drain the fluid line completely before removing or installing any plug or coupling component. Apply appropriate thread sealant compatible with the system fluid and the polypropylene material. Do not exceed the rated maximum working pressure of 60 psi or the maximum temperature of 230 degrees F during operation.
