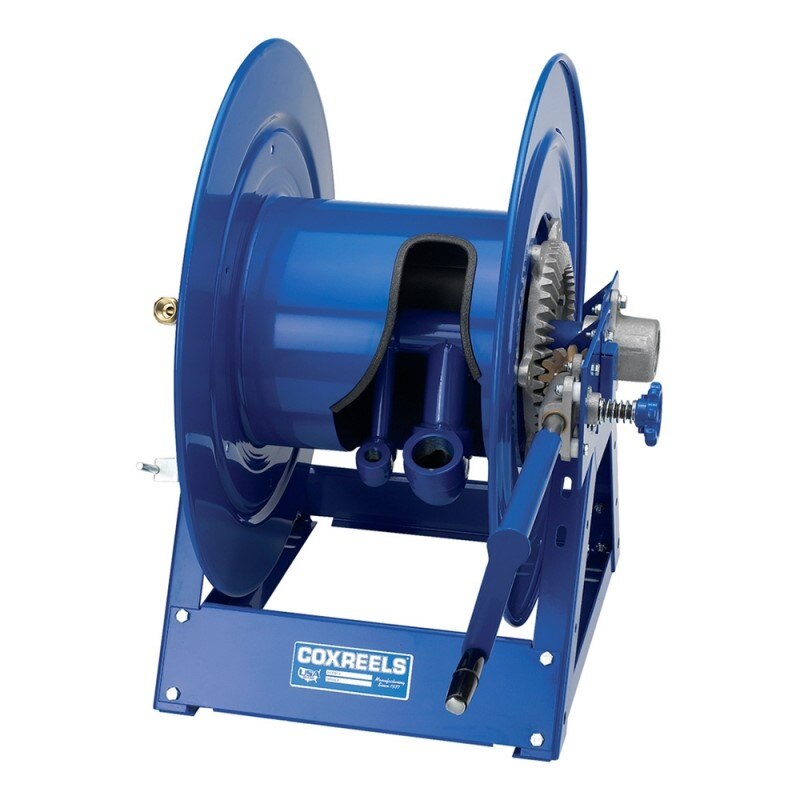

Coxreels VA-1175-850 Vacuum Hose Reel 1-1/2 Inch Npt

Product Description

The COXREELS VA-1175-850 is a spring-driven vacuum hose reel built for industrial and trade environments where controlled extraction of fumes, particles, and airborne by-products is required. Part of the COXREELS V Series, this reel accommodates 1-1/2 inch NPT vacuum hose and is constructed around a one-piece CNC robotically welded 1/4 inch steel A-frame base with a double-supported axle. At 123 pounds, the unit is built for stationary or semi-permanent installation. An adjustable tension brake controls hose retrieval speed and prevents free-wheeling during operation, transport, and storage. Licensed HVAC techs, industrial hygienists, and mechanical contractors install this type of reel in shop environments and enclosed work areas where vacuum extraction is a continuous workflow requirement.

The VA-1175-850 is suited for workshop, garage, and light industrial installations where vacuum hose must be deployed and retracted repeatedly throughout the workday. The reel's low-profile outlet riser and open drum slot design allow the hose to wrap flat without crimping, maintaining consistent airflow and hose integrity over time. The vacuum swivel is rated for 1-1/2 inch, 29 HG vacuum hose, making it appropriate for high-demand extraction tasks including grinding and sanding dust collection in enclosed or partially enclosed spaces.

Key Features

• Spring-driven retraction with adjustable tension brake for controlled hose retrieval speed
• One-piece CNC robotically welded 1/4 inch steel A-frame base with double-supported axle for structural rigidity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Vacuum swivel designed for 1-1/2 inch, 29 HG vacuum hose
• Low-profile outlet riser and open drum slot eliminates hose crimping during wrap
• CPC powder coat finish provides chip resistance and rust inhibition

Compatibility

Designed for use with 1-1/2 inch NPT vacuum hose rated for 29 HG vacuum service. Part of the COXREELS V Series vacuum hose reel platform.

Installation Notes

Installation should be performed by a qualified mechanic or industrial equipment technician familiar with vacuum plumbing systems. Mount the reel to a solid structural surface using the integrated base mounting pattern, ensuring the mounting substrate can support the unit's 123 pound operating weight. Verify that all vacuum line connections are secure and leak-free before system startup. Disconnect and de-energize the vacuum source before performing any service or hose replacement on the reel.

Technical Specifications

• Hose Inlet Size: 1-1/2 inch NPT
• Vacuum Rating: 29 HG
• Frame Material: 1/4 inch Steel
• Drive Type: Spring-Driven
• Length: 29.5 inches
• Width: 26.5 inches
• Height: 25 inches
• Weight: 123 pounds
• Finish: CPC Powder Coat
• UPC: 674255830639

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: VA-1175-850
