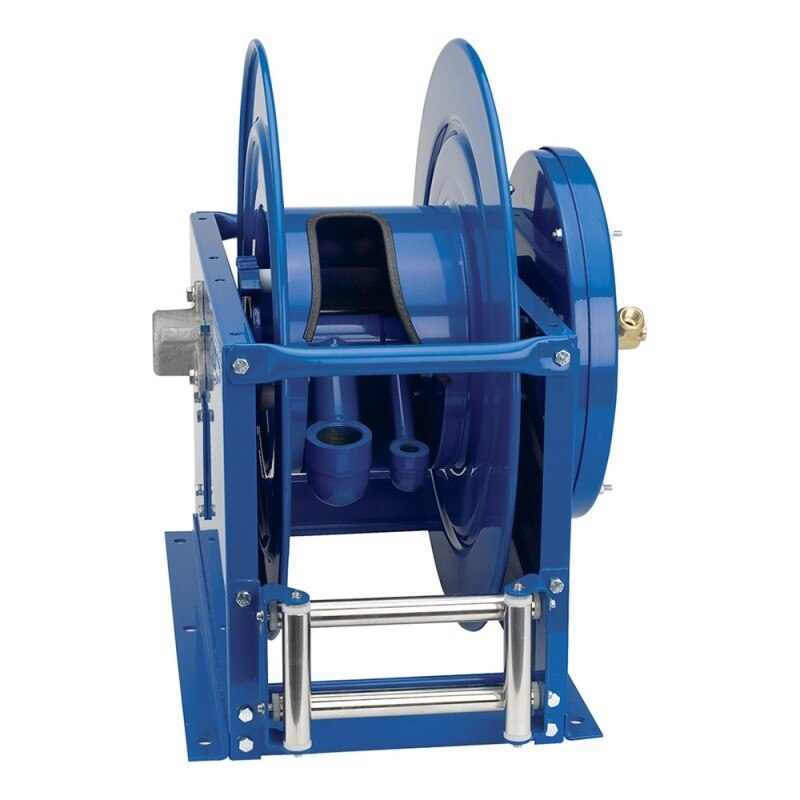

Coxreels V-SLPL-825 Vacuum Hose Reel 1.5 in 25 Ft Spring

Product Description

The COXREELS V-SLPL-825 is a spring-driven vacuum hose reel built for industrial and commercial work environments where fume and particle extraction is a recurring task. Constructed with a heavy-duty steel frame, this reel accommodates a 1.5-inch inner diameter hose up to 25 feet in length. The enclosed, lubricated cartridge-style motor retracts the hose automatically and can be removed without special tooling for routine maintenance. At 102 pounds, the unit is built for stationary or semi-permanent mounting in shops, service bays, and industrial facilities. Licensed HVAC technicians, plumbers, and general contractors who need hands-free hose management and reliable vacuum extraction will find this reel suited to demanding daily use.

The V-SLPL-825 is designed for vacuum-only extraction applications, pulling unwanted fumes, airborne particles, and process by-products away from the work area. The box-style steel frame includes two inlets and two outlets, making it capable of handling dual hose configurations. The low-profile outlet riser and open drum slot allow the hose to wrap flat without crimping, preserving hose integrity over repeated cycles. This reel is appropriate for auto body shops, fabrication facilities, HVAC service shops, and similar enclosed workspaces where air quality control and tool efficiency are priorities.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor — removable for maintenance without disassembling the unit
• 1.5-inch ID hose capacity, 25-foot hose length
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength and hose protection
• Sturdy steel box-style frame with two inlets and two outlets for dual hose applications
• Exclusive low-profile outlet riser and open drum slot design prevents hose crimping during wrap
• 1-inch stainless steel pinch-proof rollers and multi-position lock ratchet for controlled payout
• Chip-resistant, rust-inhibiting CPC powder coat finish with top frame cross-brace for structural rigidity

Compatibility

Designed for use with 1.5-inch inner diameter vacuum hose in stationary vacuum extraction system installations. Consult the COXREELS V Series product documentation to confirm hose fitting and mounting configurations for your specific application.

Installation Notes

Installation of this hose reel should be performed by a qualified technician familiar with vacuum extraction system plumbing. Disconnect and lockout all vacuum and pneumatic supply lines before mounting or servicing the unit. Secure the reel to a structurally sound wall bracket or ceiling mount rated for at least the reel weight plus hose load. Follow applicable facility safety codes and manufacturer mounting instructions when routing inlet and outlet connections.

Technical Specifications

• Hose Inner Diameter: 1.5 inches
• Hose Length: 25 ft
• Drive Type: Spring driven
• Frame Material: Steel
• Roller Material: Stainless steel
• Finish: CPC powder coat
• Length: 31 inches
• Width: 23 inches
• Height: 20 inches
• Weight: 102 pounds
• UPC: 674255830790

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: V-SLPL-825
