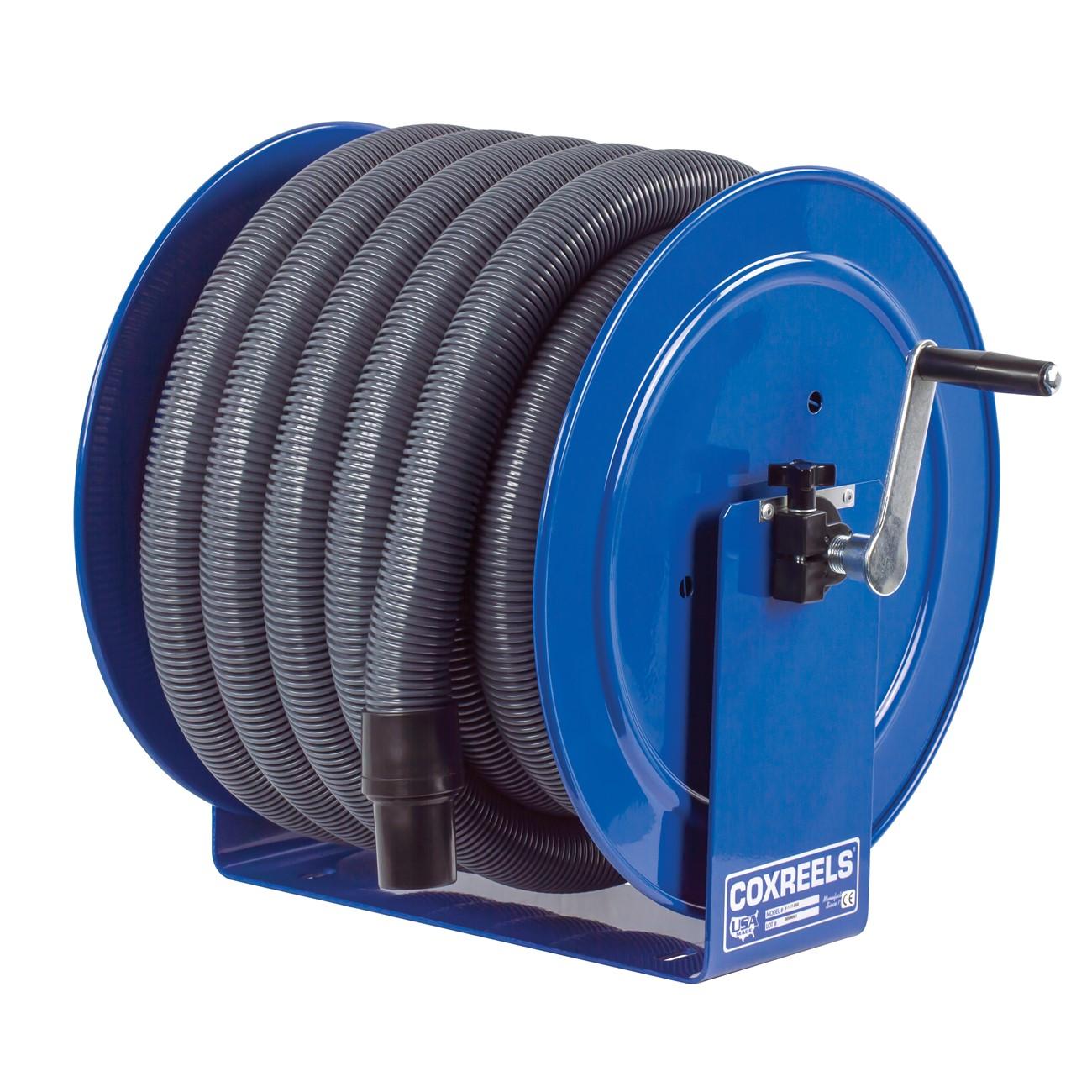

Coxreels V-117H-835 Vacuum Hose Reel 35 Ft Steel

Product Description

The COXREELS V-117H-835 is a spring-driven and hand-crank vacuum hose reel built for commercial and industrial environments where continuous fume, particle, and by-product extraction is required. The reel accommodates 1.5 to 2 inch cuff ID vacuum hose up to 35 feet in length and is constructed from heavy-gauge steel throughout. A CPC powder coat finish resists chips and rust, making this unit well suited for demanding shop and facility conditions. Licensed contractors and facility maintenance professionals install this reel where a durable, dedicated vacuum retrieval station is needed at a fixed workstation or vehicle mount.

The V-117H-835 is applied in commercial and industrial settings including auto body shops, manufacturing facilities, and industrial maintenance environments where airborne fumes and particulates must be extracted from the work area. The vacuum swivel is designed to fit 1.5 inch and 2 inch, 29 HG vacuum hose. The direct hand crank provides mechanical retraction when spring return is not preferred, giving installers flexibility in how the reel is operated across different workflow setups.

Key Features

• Vacuum swivel rated for 1.5 to 2 inch cuff ID, 29 HG vacuum hose
• Solid one-piece heavy-gauge all-steel U-shaped frame for compact, rigid mounting
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Adjustable tension brake controls retraction speed and prevents free-wheeling during operation, transport, and storage
• Long-lasting CPC powder coat finish resists chips and rust for extended service life
• Direct hand crank included for easy mechanical retraction as an alternative to spring return

Compatibility

Designed for use with 1.5 inch and 2 inch cuff ID vacuum hose up to 35 feet; part of the COXREELS V100 Series vacuum hose reel lineup.

Installation Notes

Installation is typically performed by industrial maintenance technicians or facility contractors. Ensure the mounting surface is capable of supporting the reel weight of 38 pounds plus a fully loaded hose before securing. Shut down all connected vacuum equipment before mounting, plumbing, or servicing the reel. Follow applicable local codes and manufacturer guidance for vacuum system plumbing connections.

Technical Specifications

• Hose Length: 35 ft
• Cuff ID: 1.5 to 2 inches
• Vacuum Rating: 29 HG
• Length: 29.5 inches
• Width: 26.5 inches
• Height: 25 inches
• Weight: 38 pounds
• Frame Material: Steel
• Finish: CPC Powder Coat
• Drive Type: Spring Driven with Direct Hand Crank
• UPC: 674255859128

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: V-117H-835
