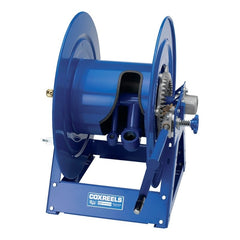

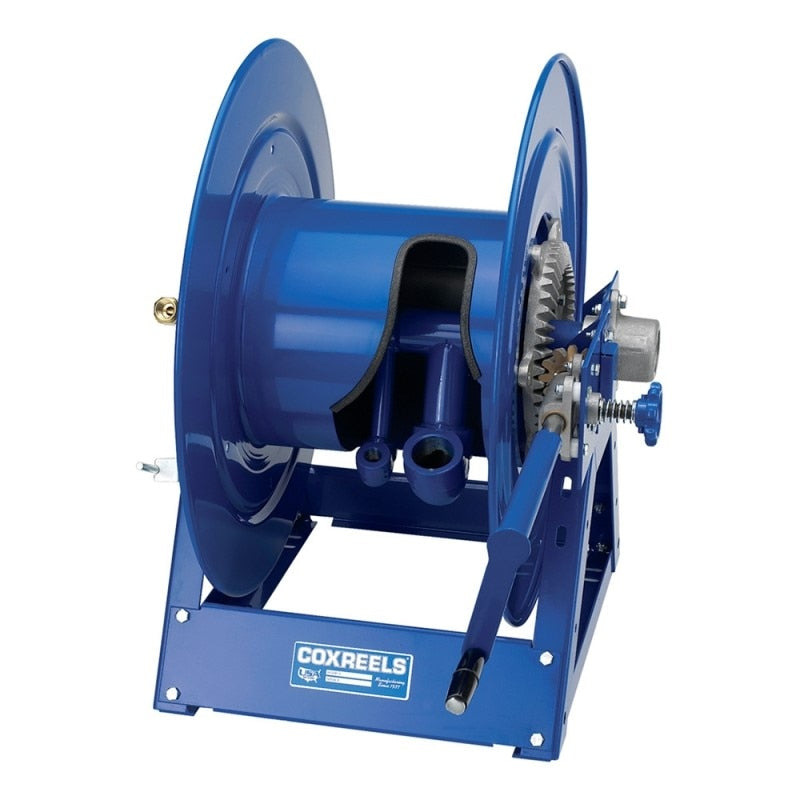

Coxreels V-1175-850 Vacuum Hose Reel 1-1/2 in Npt 50 Ft

Product Description

The COXREELS V-1175-850 is a heavy-duty vacuum hose reel built for commercial and industrial environments where fume, particle, and by-product extraction is required. The reel operates with a spring-driven and hand-crank retraction system, giving technicians a choice between automatic rewind and manual mechanical retrieval. Steel construction throughout — including a solid one-piece heavy-gauge U-shaped frame and CNC robotically spun ribbed discs with rolled edges — delivers the structural durability needed for sustained heavy use. The inlet connection is 1-1/2 inch NPT and the reel is rated for 50 feet of hose. Total unit weight is 118 pounds.

The V-1175-850 is suited for industrial shops, commercial facilities, and enclosed work environments where airborne contaminants must be removed continuously during operations. The direct-connect vacuum port accommodates hose with bullet cuffs for quick attachment. The V Series is available in vacuum-only and vacuum/pneumatic combination configurations, with the pneumatic variant providing dual plumbing to simultaneously power tools such as grinders and sanders while maintaining vacuum extraction — all within a single enclosed system.

Key Features

• Direct-connect vacuum port compatible with bullet-cuff hose fittings
• Spring-driven retraction with direct hand crank for manual override
• Solid one-piece heavy-gauge all-steel U-shaped frame — compact and lightweight relative to capacity
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Adjustable tension brake controls retraction speed and prevents free-wheeling during operation, transport, and storage
• CPC powder coat finish resists chips and rust for long service life

Compatibility

Designed for use as a vacuum hose reel with a 1-1/2 inch NPT connection in commercial and industrial vacuum extraction systems accommodating up to 50 feet of hose.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial hose reel mounting and vacuum system plumbing. Ensure the mounting surface is rated for the unit weight of 118 pounds and that all vacuum lines are depressurized before connecting or disconnecting hose fittings. Verify NPT thread compatibility and use appropriate thread sealant on all connections. Follow applicable facility safety codes when routing hose through enclosed work areas.

Technical Specifications

• Inlet Connection: 1-1/2 inch NPT
• Hose Capacity: 50 feet
• Frame Material: Steel
• Retraction Type: Spring-driven with hand crank
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 118 pounds
• Finish: CPC powder coat
• UPC: 674255830660

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: V-1175-850
