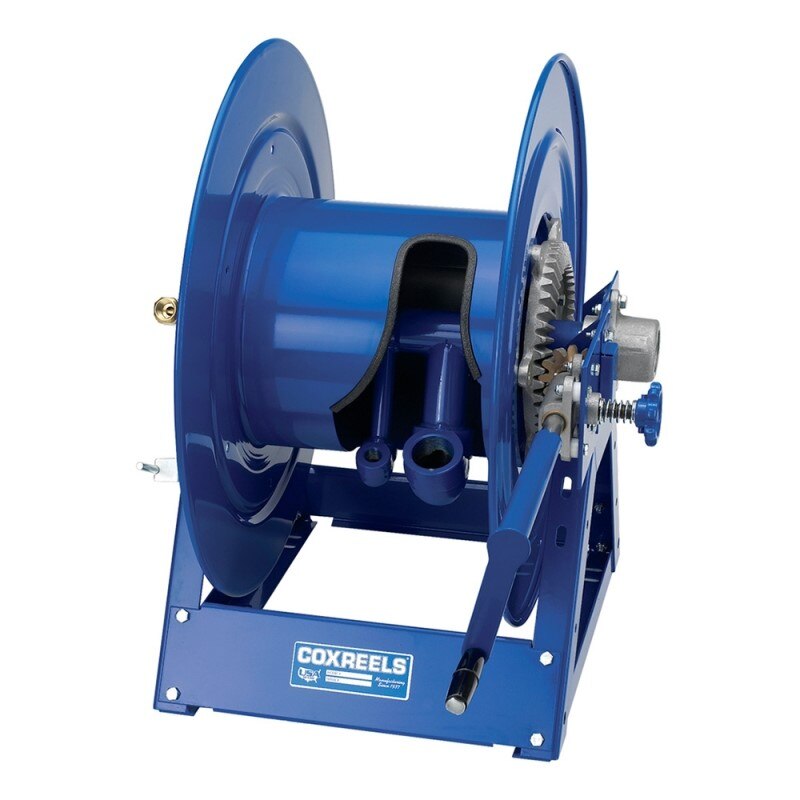

Coxreels V-1175-850-C Vacuum Hose Reel 1-1/2 in Npt 50 Ft

Product Description

The COXREELS V-1175-850-C is a spring-driven vacuum hose reel built for industrial and commercial work environments where fume and particle extraction is required. Constructed with a heavy-duty CNC robotically welded 1/4-inch steel A-frame base, this reel accepts 1-1/2-inch NPT vacuum hose rated for 29 Hg vacuum service. The unit ships as a single assembly weighing 121 pounds and measures 29.5 inches long by 26.5 inches wide by 25 inches tall. It is designed for use by HVAC technicians, industrial maintenance crews, and shop professionals who need a reliable retractable hose management solution for vacuum extraction applications.

The V-1175-850-C is suited for fixed or semi-permanent installations in shops, service bays, and enclosed work areas where vacuum extraction of fumes, dust, and airborne by-products is ongoing. The spring-driven retraction system makes it practical for high-frequency daily use. The dual-plumbing V Series configuration also supports vacuum/pneumatic combination setups, allowing simultaneous vacuum extraction while powering pneumatic tools such as grinders and sanders from a single reel system, depending on the specific model variant selected.

Key Features

• 1-1/2-inch NPT vacuum swivel designed for 29 Hg vacuum hose service
• CNC robotically welded 1/4-inch steel A-frame base with double-supported axle for structural rigidity
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Adjustable tension brake controls retraction speed and prevents free-wheeling during operation, transport, and storage
• Exclusive low-profile outlet riser and open drum slot design for non-crimping, flat hose wrap
• Chip-resistant, rust-inhibiting CPC powder coat finish with bevel front crank for manual retraction

Compatibility

Designed as an OEM-style vacuum hose reel for use with 1-1/2-inch NPT vacuum hose in industrial, commercial, and shop extraction applications.

Installation Notes

Installation is typically performed by a qualified maintenance technician or industrial mechanic. Mount the reel to a solid structural surface using the integrated mounting pattern in the steel base, following the fastener specifications provided in the manufacturer installation sheet. Ensure all vacuum line connections are de-pressurized and the system is isolated before connecting hose fittings. Consult applicable facility safety codes before routing vacuum lines near electrical panels or fuel sources.

Technical Specifications

• Inlet Size: 1-1/2 inches NPT
• Vacuum Rating: 29 Hg
• Drive Type: Spring Driven
• Frame Material: 1/4-inch Steel, CNC Robotically Welded
• Finish: CPC Powder Coat
• Length: 29.5 inches
• Width: 26.5 inches
• Height: 25 inches
• Weight: 121 pounds
• UPC: 674255830677

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: V-1175-850-C
