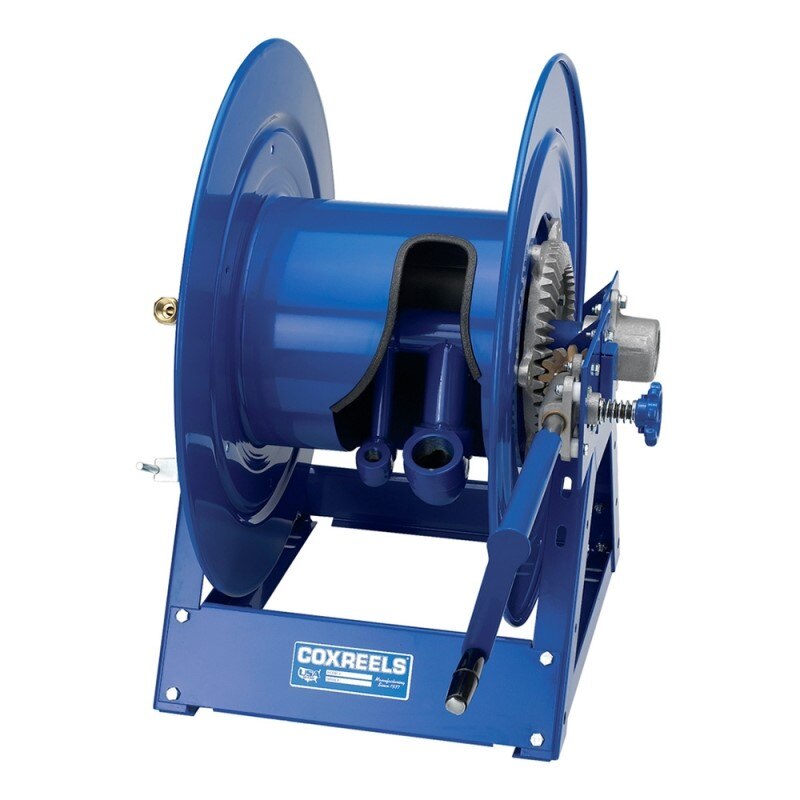

Coxreels V-117-850 Vacuum Hose Reel 1.5-2 in 50 Ft Steel

Product Description

The COXREELS V-117-850 is a spring-driven and hand-crank vacuum hose reel built for continuous-duty fume, particle, and by-product extraction in commercial and industrial work environments. Designed for use with 1.5 to 2 inch cuff ID, 29 HG vacuum hose, this reel combines a heavy-gauge all-steel U-shaped frame with CNC robotically spun and ribbed discs. The disc edges are rolled for hose protection and operator safety. An adjustable tension brake controls draw speed and prevents free-wheeling during operation, transport, and storage. At 28 pounds, the unit is compact enough for bench or wall mounting while handling demanding extraction work.

The V-117-850 is suited for commercial and industrial shops, spray booths, fabrication areas, and any enclosed workspace requiring active fume or particulate removal. It accommodates up to 50 feet of vacuum hose, making it practical for mid-size bays and service areas. The reel also supports vacuum-only operation, consistent with the COXREELS V Series platform. Typical installers include industrial maintenance technicians and facilities professionals handling ventilation and tool-support infrastructure.

Key Features

• Vacuum swivel designed for 1.5 to 2 inch, 29 HG vacuum hose
• One-piece heavy-gauge all-steel U-shaped frame for rigidity and portability
• CNC robotically spun and ribbed discs with rolled edges for strength and hose protection
• Adjustable tension brake controls retraction speed and prevents free-wheeling
• CPC powder coat finish resists chips, rust, and corrosion
• Direct hand crank provides mechanical retraction as a backup to spring drive

Compatibility

Designed for use with 1.5 to 2 inch cuff ID vacuum hose up to 50 feet in length within the COXREELS V Series spring-driven and hand-crank vacuum hose reel platform.

Installation Notes

Installation is typically performed by industrial maintenance technicians or mechanical contractors. Shut down all vacuum and pneumatic lines before mounting or connecting the reel. Secure the frame to a structurally sound surface using hardware rated for the reel weight and hose load. Verify all swivel and hose connections are airtight before returning the system to service.

Technical Specifications

• Hose Cuff ID: 1.5 to 2 inches
• Hose Capacity: 50 ft
• Vacuum Rating: 29 HG
• Frame Material: Steel
Finish: CPC powder coat
• Length: 29.5 inches
• Width: 26.5 inches
• Height: 25 inches
• Weight: 28 pounds
• Drive Type: Spring-driven with direct hand crank

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: V-117-850
