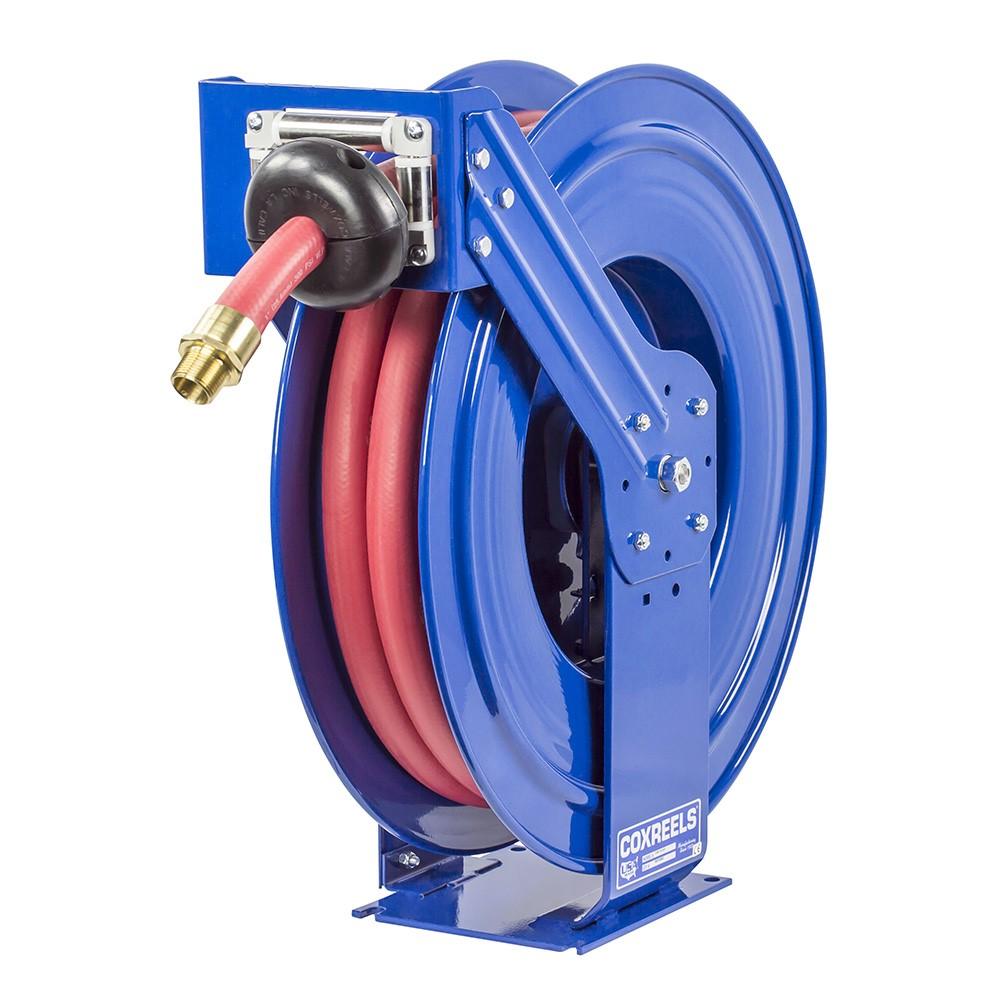

Coxreels TSHL-N-635-BXN Fuel Hose Reel 1 in Id 35 Ft

Product Description

The COXREELS TSHL-N-635-BXN is a supreme-duty, dual-pedestal fuel hose reel built for continuous-use fuel dispensing in demanding commercial and industrial environments. Designed around a 1-inch inner diameter hose capacity and 35-foot hose length, this T-Series reel handles non-aromatic fuels including diesel, kerosene, fuel oil, and heating oil. The reel weighs 71 pounds and measures 25 inches long, 13 inches wide, and 27 inches tall. A machined zinc-plated steel 90-degree full-flow NPT swivel delivers unrestricted fuel flow at the inlet. Licensed HVAC technicians, fueling equipment specialists, and fleet maintenance crews are the typical end users for this class of reel.

This reel is suited for fixed and mobile fuel-transfer installations including fuel and lube trucks, aircraft refuelers, tank trucks, bulk liquid handling transport rigs, and stationary fuel storage dispensing systems. It is a standard fit for utility and ground support operations that require a durable, high-cycle dispensing solution. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, giving installers flexibility across a wide range of service configurations.

Key Features

• 1-inch ID hose capacity with 35-foot hose length for high-volume fuel transfers
• Dual-pedestal, solid one-piece steel base with no-weld construction and an exclusive triple-axle support system for maximum stability
• Machined zinc-plated steel 90-degree full-flow NPT swivel optimized for fuel dispensing service
• Enclosed, lubricated cartridge-style motor is fully removable for maintenance without special tooling
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection, structural strength, and operator safety
• CPC powder coat finish resists chips and rust for long service life in outdoor and mobile environments

Compatibility

Designed for non-aromatic fuel applications including diesel, kerosene, fuel oil, and heating oil. Intended for use in fuel storage dispensing systems, fuel and lube trucks, aircraft refuelers, tank trucks, and bulk liquid transport equipment.

Installation Notes

Installation should be performed by a qualified fueling equipment technician or fleet maintenance professional familiar with applicable fuel-handling codes and local regulations. Shut down and depressurize the fuel supply line completely before mounting or connecting the reel. The multi-position guide arm allows mounting to walls, floors, ceilings, or vehicle frames using appropriate fasteners for the substrate. Verify all NPT swivel connections are properly sealed with a fuel-compatible thread sealant before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1.5 inches
• Hose Length: 35 feet
• Weight: 71 pounds
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Frame Style: Dual Pedestal
• Swivel Material: Zinc Plated Steel
• Finish: CPC Powder Coat
• UPC: 674255725638

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHL-N-635-BXN
