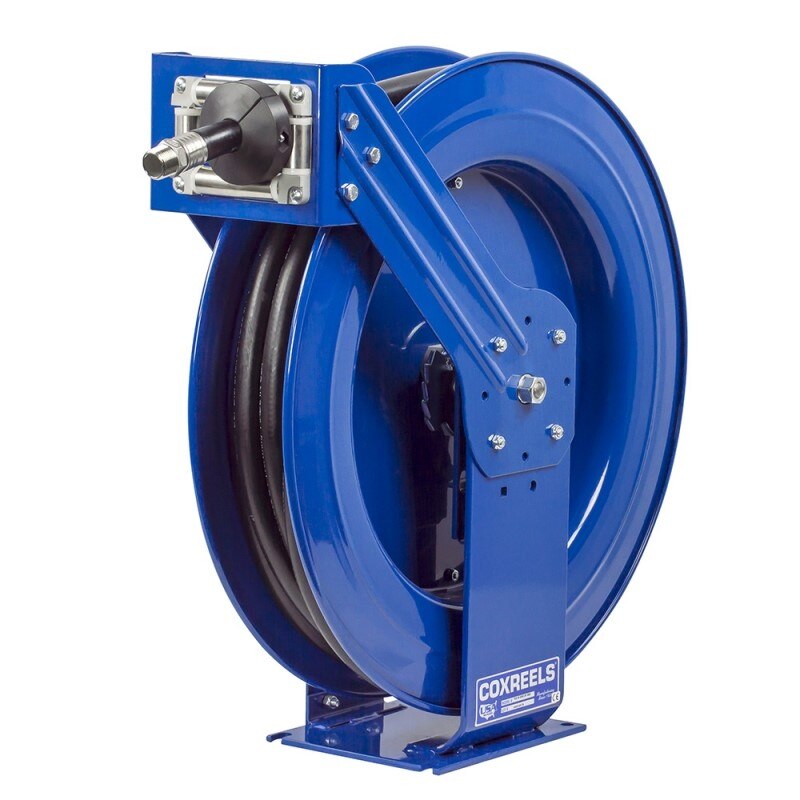

Coxreels TSHL-N-635-BBX Def Hose Reel 1 Inch Id 35 Ft

Product Description

The COXREELS TSHL-N-635-BBX is a heavy-duty, supreme-duty T Series dual pedestal Diesel Exhaust Fluid (DEF) hose reel designed for safe, reliable DEF dispensing in stationary and mobile service environments. It features a stainless steel 90-degree full-flow NPT swivel with chemical-resistant Viton seals, delivering full-flow performance while resisting the corrosive nature of DEF fluid. The reel accepts hose with a 1 inch inner diameter and 1 3/8 inch outer diameter at 35 feet in length. Licensed HVAC and fleet service technicians, lube technicians, and commercial fueling operators are the primary installers. The unit weighs 71 pounds and ships as a single unit.

This reel is built for commercial and industrial DEF dispensing applications. The dual pedestal T Series configuration provides maximum stability on shop floors, service bays, and mobile service vehicles. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting, making the TSHL-N-635-BBX adaptable to a wide range of stationary and mobile installation scenarios. Fleet maintenance facilities, truck stops, and agricultural service operations are typical deployment environments for this reel.

Key Features

• Stainless steel 90-degree full-flow NPT swivel with Viton seals for DEF chemical compatibility
• Enclosed, lubricated cartridge-style motor that is field-removable for maintenance
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece steel dual pedestal base with no-weld construction and exclusive Super Hub triple axle support system
• Multi-position guide arm adjustable for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish for chip resistance and rust inhibition; adjustable solid rubber hose stop; permanently lubricated precision bearings

Compatibility

Designed as an OEM-style DEF dispensing reel for commercial and industrial DEF hose with a 1 inch inner diameter and 1 3/8 inch outer diameter, accommodating up to 35 feet of hose length in dual pedestal T Series mounting configurations.

Installation Notes

Installation should be performed by a qualified technician familiar with DEF dispensing systems and the mounting surface requirements for the selected orientation. Shut off and depressurize the DEF supply line before connecting or disconnecting the swivel assembly. Confirm all NPT fittings are properly threaded and sealed to prevent DEF leaks, as urea-based fluid can cause corrosion on incompatible metals. Follow all applicable local codes and equipment manufacturer guidelines for fluid handling system installation.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1 3/8 inches
• Hose Length: 35 feet
• Weight: 71 pounds
• Swivel Material: Stainless Steel
• Seal Material: Viton
• Configuration: Dual Pedestal T Series
• Finish: CPC Powder Coat
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHL-N-635-BBX
