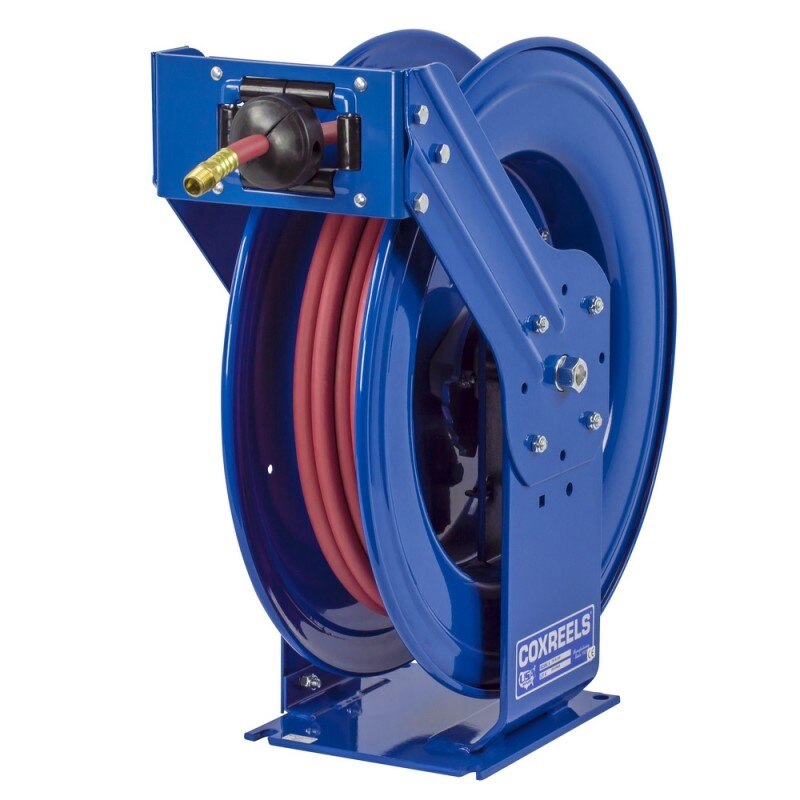

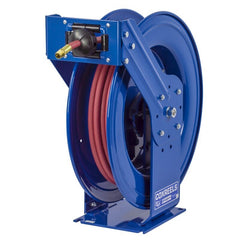

Coxreels TSHL-N-575 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS TSHL-N-575 is a heavy-duty, spring-driven truck mount hose reel from the T Series line, built for off-road and high-demand mobile service applications. It features an extra-large chassis with dual pedestal-style arms and a Super Hub triple axle support system that reduces vibration and reinforces structural integrity under rough conditions. The reel accepts 3/4 inch ID hose up to 75 feet in length with a 1 1/16 inch OD. It is designed for licensed service technicians and fleet maintenance professionals who need a dependable reel that holds up in abusive field environments.

The TSHL-N-575 is suited for vehicle-mounted service rigs operating in demanding outdoor or off-road conditions. Typical applications include mobile lubrication, fluid transfer, and service truck builds where a spring-retract reel must tolerate heavy vibration, repeated use, and exposure to the elements. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of truck and trailer setups.

Key Features

• Spring-driven retraction with an enclosed, lubricated cartridge-style motor that is removable for field maintenance
• Machined solid brass 90-degree full-flow NPT swivel allows seal service and hose installation without removing the reel from its mount
• CNC robotically spun and ribbed steel discs with rolled edges for increased strength, hose protection, and operator safety
• 1/4 inch solid one-piece steel base with dual pedestal design and no-weld construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust for long service life in outdoor environments
• Permanently lubricated precision bearings for consistent, low-maintenance operation

Compatibility

Designed as an OEM-style replacement or direct-install spring-driven truck mount hose reel for mobile service and fleet maintenance rigs requiring 3/4 inch ID hose capacity up to 75 feet.

Installation Notes

Installation should be performed by a qualified technician familiar with vehicle-mounted fluid transfer equipment. Shut off all fluid supply and depressurize the hose line before mounting or servicing the reel. Secure the steel base to a structurally sound mounting surface rated for the combined weight of the reel and filled hose. Verify that all NPT swivel connections are properly sealed and inspected for leaks before returning the system to service.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1 1/16 inch
• Hose Capacity: 75 feet
• Drive Type: Spring driven
• Mount Type: Truck mount
• Base Material: Steel
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 73 pounds
• UPC: 674255738096

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHL-N-575
