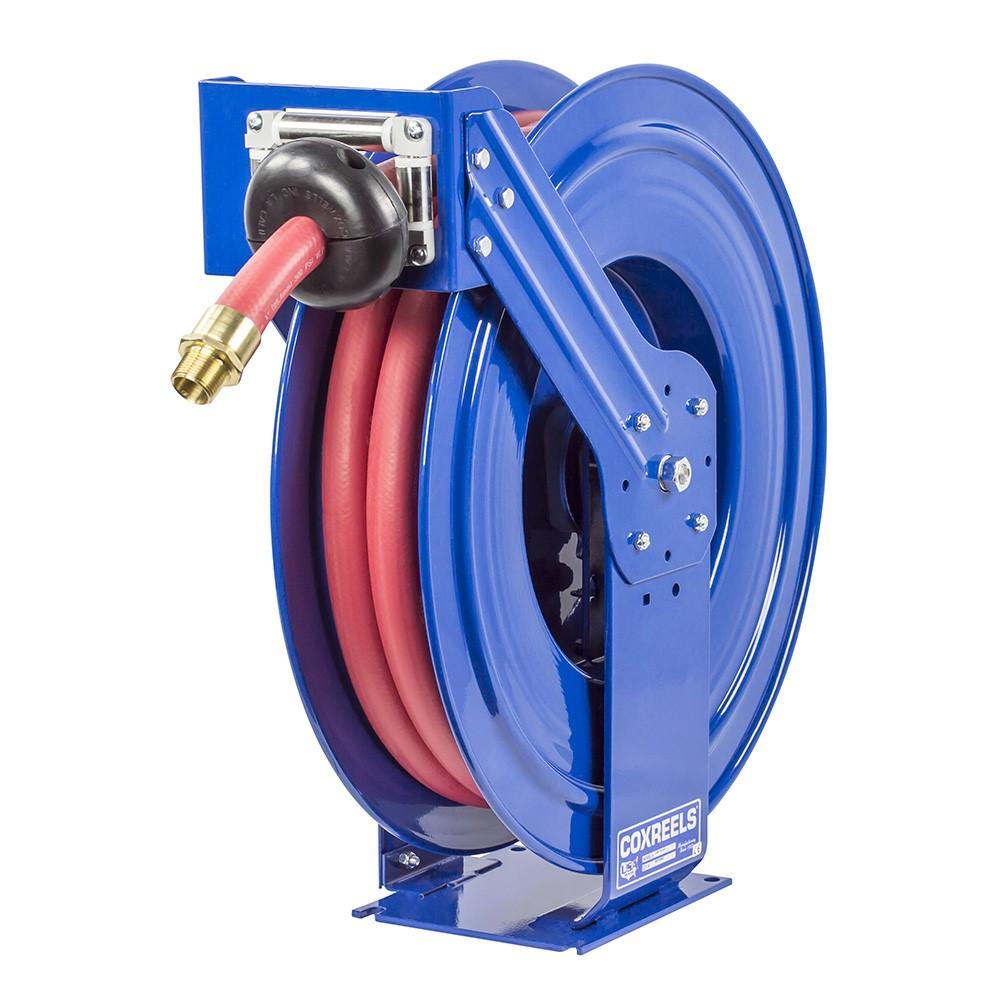

Coxreels TSHL-N-575-BXN Fuel Hose Reel 3/4 in 75 Ft

Product Description

The COXREELS TSHL-N-575-BXN is a supreme-duty, dual pedestal, box-style frame fuel hose reel engineered for demanding non-aromatic fuel dispensing applications. It accepts a 3/4 inch ID hose up to 75 feet in length and is built around a one-piece solid steel base with no-weld construction for maximum structural rigidity. The reel ships at 73 pounds and measures 25 inches long by 13 inches wide by 27 inches tall. A machined solid brass 90-degree full-flow NPT swivel handles the fluid path, while a multi-position guide arm supports wall, floor, ceiling, and vehicle mounting. Licensed HVAC technicians, fleet service professionals, and fueling equipment installers are the primary trades that deploy this reel.

This reel is suited for utility vehicles, fuel and lube trucks, aircraft refuelers, tank trucks, and fixed fuel storage dispensing systems. It handles diesel, kerosene, fuel oil, and heating oil — all non-aromatic fuel types. The dual pedestal T-Series configuration is designed for high-cycle, bulk liquid handling environments where structural stability and consistent hose control are required across extended service intervals. Ground support operations and bulk liquid transport services are common deployment scenarios.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel rated for fuel dispensing service
• Enclosed, lubricated cartridge-style motor is removable for maintenance without full reel disassembly
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• One-piece solid steel base with dual pedestal, no-weld construction and exclusive triple axle support system
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• CPC powder coat finish provides chip resistance and rust inhibition for long service life
• Permanently lubricated precision bearings throughout

Compatibility

Designed for use with 3/4 inch ID hose up to 75 feet in non-aromatic fuel dispensing applications including diesel, kerosene, fuel oil, and heating oil service. Fits dual pedestal T-Series box-frame mounting configurations on fuel trucks, tank trucks, aircraft refuelers, and fixed dispensing systems.

Installation Notes

Installation should be performed by a qualified fueling equipment technician or fleet service professional familiar with applicable fuel system codes and regulations. Depressurize and purge the fuel line before connecting or disconnecting the swivel or hose fittings. Verify that all NPT thread connections are sealed with compatible fuel-rated thread sealant and that the mounting surface can support the reel weight plus the loaded hose. Follow all local fire codes and NFPA guidelines governing fuel dispensing equipment installation.

Technical Specifications

• Hose ID: 3/4 inch
• Maximum Hose Length: 75 feet
• Swivel Type: Machined solid brass 90-degree full-flow NPT
• Frame Style: Dual pedestal box-frame (T-Series)
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 73 pounds
• Finish: CPC chip-resistant rust-inhibiting powder coat
• Compatible Fluids: Diesel, kerosene, fuel oil, heating oil (non-aromatic fuels)
• UPC: 674255745698

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHL-N-575-BXN
