Coxreels TSHL-N-550-SS Stainless Steel Hose Reel 3/4 in 50 Ft

Product Description

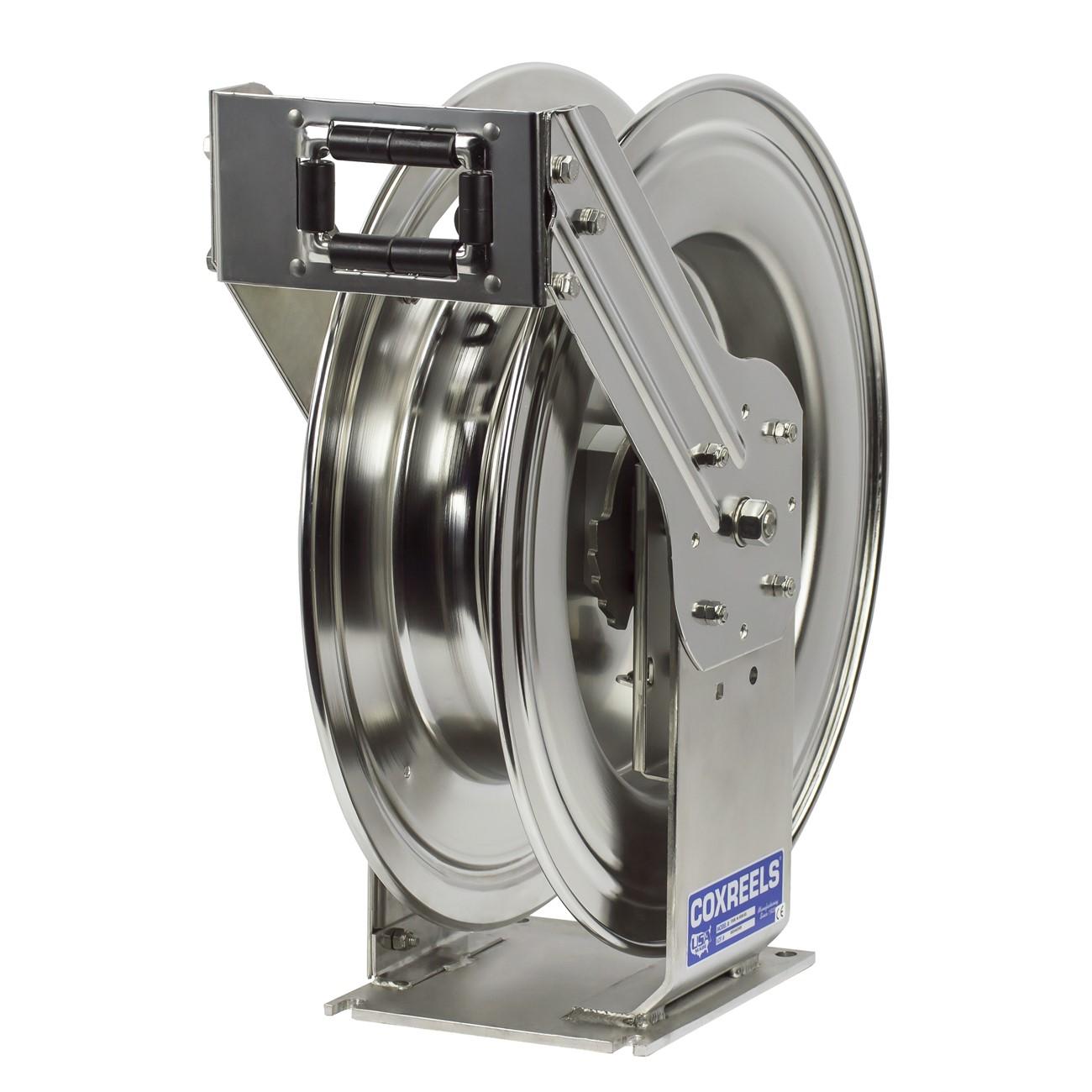

The COXREELS TSHL-N-550-SS is an electro-polished stainless steel spring-driven hose reel from the T-SS Series, built for applications where corrosion resistance and fluid-path cleanliness are non-negotiable. It accepts hose with a 3/4 inch inner diameter and 1-1/16 inch outer diameter, with a 50-foot capacity. The reel retracts automatically via an enclosed cartridge-style spring motor housed in an electro-polished stainless steel casing. At 70 pounds, this is a heavy-duty commercial-grade unit suited for installation by maintenance professionals, facility technicians, and service contractors who work in corrosive or sanitary environments.

This hose reel is designed for use in food and chemical processing facilities, marinas, vehicle wash bays, agricultural operations, and any environment where rust, contamination, or chemical exposure would compromise a standard steel or zinc-plated reel. The full stainless steel fluid path and swivel inlet keep process fluids isolated from ferrous contamination. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of service environments.

Key Features

• Electro-polished stainless steel construction throughout, including discs, base, support post, and guide arm
• Enclosed cartridge-style spring motor is removable for maintenance without disassembling the reel
• Machined stainless steel 90-degree full-flow NPT swivel inlet keeps the external fluid path non-corrosive
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece stainless steel dual-pedestal base with no-weld construction and triple axle hub support
• Permanently lubricated precision bearings for long service intervals

Compatibility

Designed to accept hose with a 3/4 inch inner diameter and 1-1/16 inch outer diameter up to 50 feet in length. Suitable for use in food processing, chemical handling, marina, and other corrosive or sanitary service environments requiring a full stainless steel fluid path.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial hose reel mounting requirements. Shut off and depressurize the fluid supply line before connecting or disconnecting the reel. The multi-position guide arm allows wall, floor, ceiling, or vehicle mounting — verify that the mounting surface is rated for the combined weight of the reel and hose at full capacity. Follow applicable facility safety codes and manufacturer torque guidance for inlet fittings during connection.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1-1/16 inch
• Hose Capacity: 50 feet
• Drive Type: Spring-driven, cartridge motor
• Material: Electro-polished stainless steel
• Swivel Inlet: 90-degree full-flow NPT stainless steel
• Mounting Positions: Wall, floor, ceiling, vehicle
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 70 pounds
• UPC: 674255722125

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHL-N-550-SS
