Coxreels TSHL-N-550 Spring Driven Hose Reel 3/4 Inch Id

Product Description

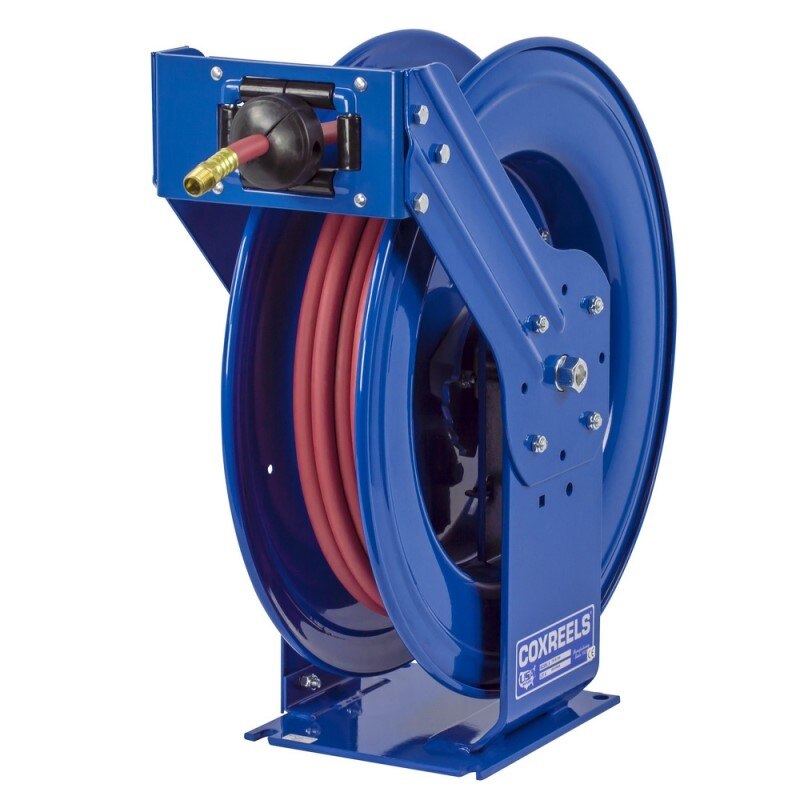

The COXREELS TSHL-N-550 is a heavy-duty, spring-driven hose reel built for truck-mount and off-road service applications. Part of the COXREELS T Series, this reel features an extra-large chassis with dual pedestal-style arms and the COXREELS Super Hub triple axle support system, which reduces vibration and reinforces structural integrity under demanding field conditions. The 3/4 inch ID, 1-1/16 inch OD hose path accommodates up to 50 feet of hose. At 70 pounds, the reel is engineered for permanent or semi-permanent vehicle mounting where reliability in abusive environments is non-negotiable. Licensed HVAC techs, plumbers, and industrial service crews are the primary installers.

The TSHL-N-550 is designed for mobile service vehicles operating in off-road, construction, agricultural, and heavy industrial environments. The dual pedestal base and triple axle hub provide the vibration resistance required when the reel is mounted to a truck bed or service body that travels over rough terrain. The multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting configurations, giving installers flexibility depending on the vehicle or facility layout. No compatibility with specific third-party hose brands or vehicle models is stated by the manufacturer for this SKU.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor for field-serviceable maintenance without removing the reel from its mount
• Machined solid brass 90-degree full-flow NPT swivel supports fast hose installation and seal maintenance in place
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece 1/4 inch steel base with dual pedestal design and no-weld construction for maximum structural stability
• Multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish resists chips and rust for long service life in outdoor and mobile applications
• Permanently lubricated precision bearings for reduced maintenance intervals

Compatibility

Designed as an OEM-style truck-mount replacement or new-install spring-driven hose reel suitable for 3/4 inch ID hose up to 50 feet in length across mobile service, industrial, and off-road fleet applications.

Installation Notes

Installation is typically performed by a qualified service technician or fleet mechanic. Before mounting, ensure the vehicle or structure is powered down and any pressurized lines are fully depressurized and drained. Secure the one-piece steel base to a structurally rated mounting surface using fasteners appropriate for the load rating of the vehicle or structure. Verify hose connections are thread-sealed and torqued per the hose and fitting manufacturer specifications before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1-1/16 inch
• Maximum Hose Length: 50 feet
• Drive Type: Spring driven
• Swivel Type: 90-degree full-flow NPT brass swivel
• Base Material: 1/4 inch solid steel, no-weld construction
• Finish: CPC powder coat, chip and rust resistant
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 70 pounds
• UPC: 674255721050

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHL-N-550
