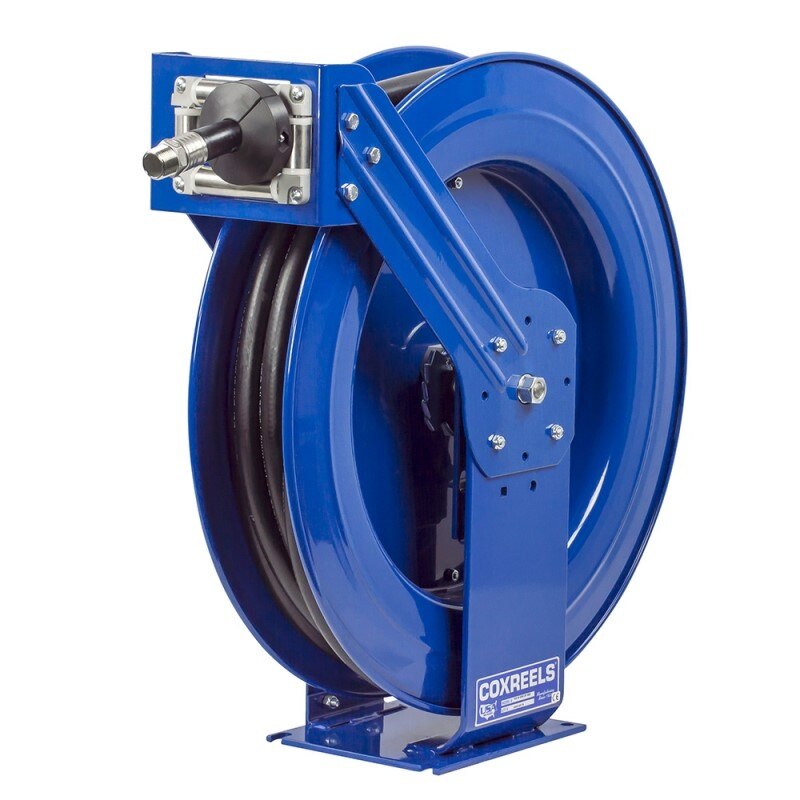

Coxreels TSHL-N-550-DF-BBX Def Hose Reel 3/4 Inch

Product Description

The COXREELS TSHL-N-550-DF-BBX is a supreme-duty dual pedestal Diesel Exhaust Fluid (DEF) hose reel built for reliable, high-volume DEF dispensing in stationary and mobile fleet service environments. The reel features a stainless steel external full-flow 90-degree NPT swivel with chemical-resistant Viton seals, engineered specifically to handle the corrosive properties of DEF. The swivel is externally mounted for easy access, making seal inspection and replacement straightforward. The unit ships at 70 pounds and is designed for professional installation by fleet maintenance technicians and commercial fueling operations.

This reel suits commercial and industrial DEF dispensing applications including truck fleet service bays, agricultural equipment dealerships, and mobile fuel and fluid service vehicles. The dual pedestal T Series configuration provides the structural stability needed for high-cycle dispensing environments where vibration and frequent hose deployment are constant factors. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across a wide range of service bay and mobile rig layouts.

Key Features

• Stainless steel external full-flow 90-degree NPT swivel with Viton seals resists DEF corrosion and allows easy seal maintenance
• Enclosed cartridge-style spring motor is lubricated, removable, and serviceable without special tooling
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for structural strength, hose protection, and operator safety
• Solid one-piece steel dual pedestal base with no-weld construction and exclusive Super Hub triple axle support system for reduced vibration
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• CPC powder coat finish is chip-resistant and rust-inhibiting; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed for use with 3/4 inch ID DEF dispensing hose in supreme-duty dual pedestal T Series reel applications for stationary or mobile DEF handling systems.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid dispensing equipment and the mounting surface requirements for heavy reels. Shut off all fluid supply and relieve system pressure before mounting or performing any service on the reel or swivel. Secure the one-piece steel base to a structurally rated surface using fasteners appropriate for the mounting orientation selected. Verify all swivel connections and hose fittings for leaks before returning the system to service.

Technical Specifications

• Hose ID: 3/4 inches
• Hose OD: 1 1/8 inches
• Configuration: Dual Pedestal (T Series)
• Swivel Material: Stainless Steel
• Seal Material: Viton
• Swivel Type: 90-degree Full-Flow NPT
• Finish: CPC Powder Coat
• Weight: 70 pounds
• UPC: 674255748026

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHL-N-550-DF-BBX
