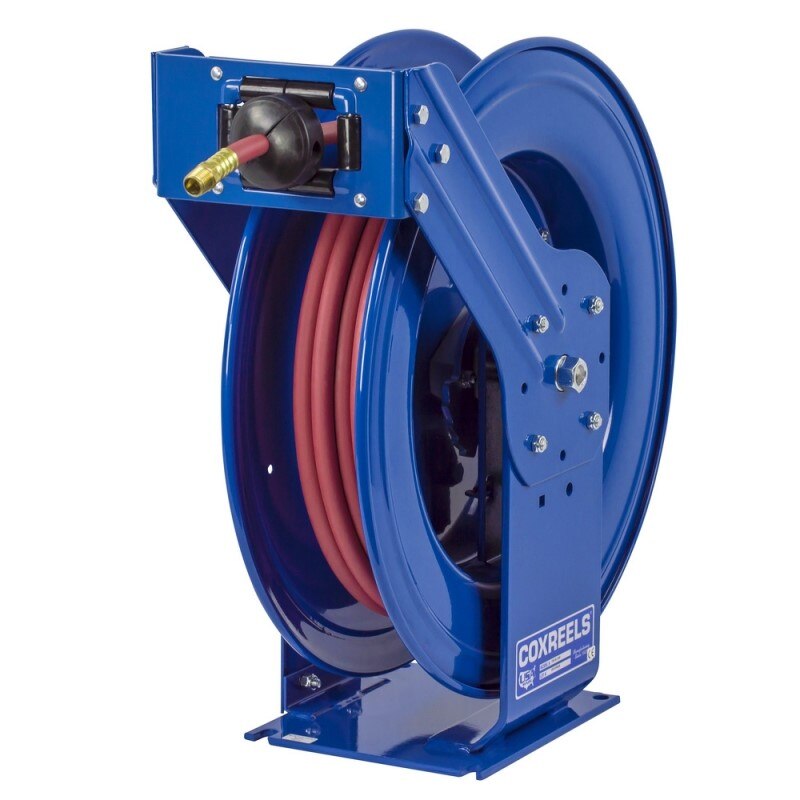

Coxreels TSHL-N-535 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS TSHL-N-535 is a spring-driven, truck-mount hose reel from the COXREELS T Series, engineered for demanding off-road and field service applications. Built on an extra-large chassis with dual pedestal-style arms and a triple axle support hub, the reel handles a 3/4 inch ID hose up to 50 feet in length. The enclosed, lubricated cartridge-style motor and CNC robotically spun disc construction deliver the structural integrity needed for high-vibration environments. Licensed HVAC techs, plumbers, and field service professionals install this reel on service trucks and mobile equipment where reliability under abuse is non-negotiable.

The TSHL-N-535 is suited for truck-mount and mobile service unit installations across trades that require a rugged, self-retracting hose management solution. Its multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting orientations, making it adaptable to a wide range of rig configurations. The solid one-piece steel base with no-weld dual pedestal design keeps the reel stable on uneven terrain and during transit. This model is built for professionals operating in environments where standard reels fail.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor for low-maintenance field operation
• Triple axle support via integrated hub design reduces vibration and reinforces chassis integrity
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish provides chip resistance and rust inhibition for long service life

Compatibility

Designed as an OEM-style truck-mount hose reel compatible with 3/4 inch ID hose up to 50 feet in length. For full system compatibility, verify hose OD does not exceed 1-1/16 inches and confirm NPT swivel connection size matches the supply line fitting.

Installation Notes

Installation should be performed by a qualified technician familiar with mobile equipment plumbing and hose reel mounting. Shut off and bleed all pressure from the hose and supply line before mounting or performing any maintenance on the reel. Secure all mounting fasteners to the vehicle frame or service body using hardware rated for the combined weight of the reel and fluid load. Consult the vehicle manufacturer and applicable safety standards for load ratings and mounting point requirements.

Technical Specifications

• Hose ID: 3/4 inches
• Hose OD: 1-1/16 inches
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Mount Type: Truck mount
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Material: Steel
• Finish: CPC powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 67 pounds
• UPC: 674255721043

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHL-N-535
