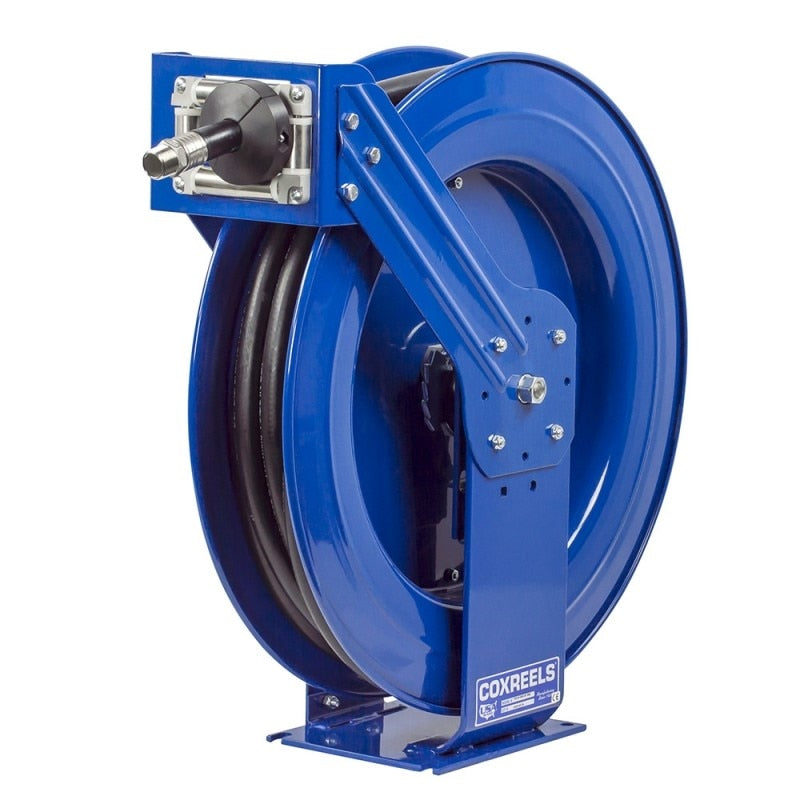

Coxreels TSHL-N-535-DF-BBX Def Hose Reel Dual Pedestal

Product Description

The COXREELS TSHL-N-535-DF-BBX is a supreme-duty dual pedestal Diesel Exhaust Fluid (DEF) hose reel built for professional dispensing applications in stationary or mobile environments. Part of the T Series DEF line, this reel features a stainless steel 90-degree full-flow NPT swivel with chemical-resistant Viton seals to safely handle DEF without corrosion or leakage. The hose inlet measures 3/4 inch ID and 1-1/8 inch OD. A lubricated, enclosed cartridge-style motor is easily removable for field maintenance. Licensed HVAC, fleet, and fluid-handling technicians will find the reel suited for demanding shop and mobile service truck installations.

This reel is designed for DEF dispensing in commercial and industrial settings where reliable fluid transfer and durability are required. The dual pedestal T Series configuration is appropriate for high-cycle stationary rack mounts or heavy mobile service equipment. The multi-position guide arm adjusts to support wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across a wide range of service bay and field setups. The unit ships as a single piece with a solid one-piece steel base requiring no field welding during installation.

Key Features

• Stainless steel 90-degree full-flow NPT swivel rated for DEF service with Viton seals for chemical resistance and easy seal access
• Enclosed cartridge-style motor is pre-lubricated and fully removable for safe, convenient maintenance without disassembling the reel
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for increased strength, hose protection, and operator safety
• Solid one-piece 1/4-inch steel base with dual pedestal and no-weld construction; includes exclusive Super Hub triple axle support system to reduce vibration
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style DEF dispensing reel for professional fleet service, agricultural, and industrial fluid-handling systems requiring a 3/4 inch ID hose connection in dual pedestal T Series configurations.

Installation Notes

Installation should be performed by a qualified fluid-handling or fleet service technician familiar with DEF system requirements. Shut off all fluid supply and relieve line pressure before mounting or servicing the reel. Secure the steel base to a structurally sound surface using appropriately rated fasteners for the chosen mounting position. Avoid contact between DEF and incompatible metals or seals not rated for urea-based fluids during plumbing connections.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1-1/8 inch
• Swivel Material: Stainless Steel
• Seal Material: Viton
• Base Thickness: 1/4 inch steel
• Configuration: Dual Pedestal (T Series)
• Finish: CPC Powder Coat
• Weight: 67 pounds
• UPC: 674255748071

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHL-N-535-DF-BBX
