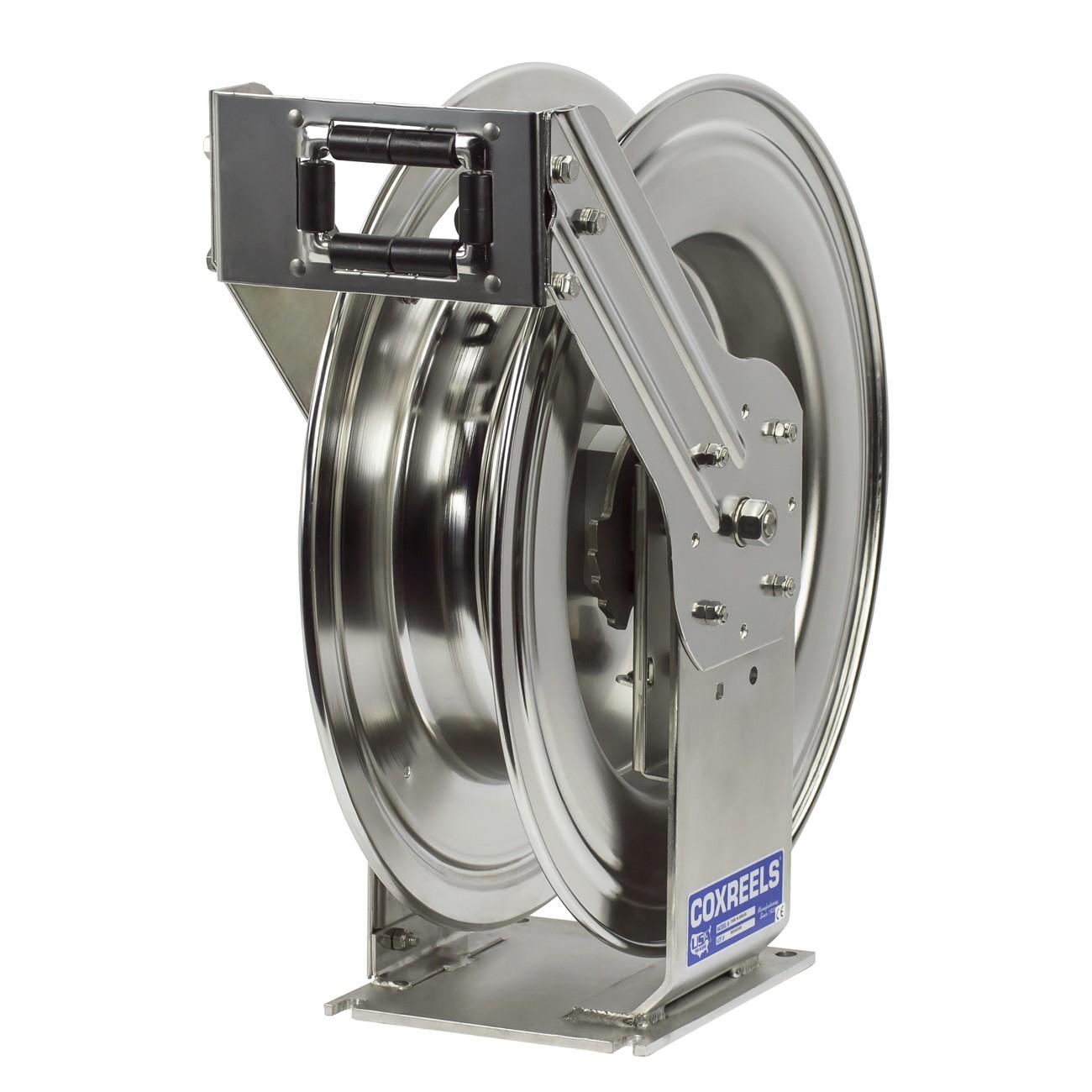

Coxreels TSHL-N-475-SS Stainless Steel Hose Reel 75 Ft

Product Description

The COXREELS TSHL-N-475-SS is a spring-driven stainless steel hose reel built for demanding environments where corrosion, contamination, and moisture are constant concerns. Rated for a 1/2 inch inner diameter hose up to 75 feet in length, this reel features an electro-polished stainless steel body and a fully stainless fluid path from swivel inlet to hose connection. The cartridge-style spring motor is enclosed, lubricated, and removable without special tooling. At 71 pounds, it is a heavy-duty unit designed for fixed or vehicle-mounted installations in professional service environments. Licensed contractors and facility maintenance crews are the primary installers.

This hose reel is suited for food and chemical processing facilities, marinas, car washes, and any location where rust, corrosion, or contamination cannot be tolerated. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a wide range of fixed service stations and mobile rigs. Applications span industrial fluid dispensing, washdown service, and chemical transfer where a non-corrosive wetted path is a code or sanitation requirement.

Key Features

• Electro-polished stainless steel construction throughout body and fluid path for corrosion resistance
• Machined stainless steel 90-degree full-flow NPT swivel inlet for non-corrosive external fluid path
• Enclosed, lubricated cartridge-style spring motor is removable for field maintenance without full reel disassembly
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece stainless steel base and support post with no-weld dual pedestal design and triple axle hub support
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting

Compatibility

Designed as an OEM-style stainless steel spring-driven hose reel for professional washdown, chemical transfer, and fluid dispensing applications requiring a non-corrosive wetted fluid path.

Installation Notes

Installation is typically performed by licensed plumbers, industrial mechanics, or qualified maintenance technicians. Shut off all fluid supply and depressurize the line fully before connecting or disconnecting hose fittings. Mount the reel to a structurally sound surface rated for the combined weight of the reel and a fully loaded hose. Consult applicable plumbing codes and the manufacturer documentation for inlet thread specifications and torque guidance before final connection.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 3/4 inch
• Hose Length: 75 feet
• Drive Type: Spring-driven
• Material: Electro-polished stainless steel
• Swivel Inlet: 90-degree full-flow NPT stainless steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 71 pounds
• Unit of Measure: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHL-N-475-SS
