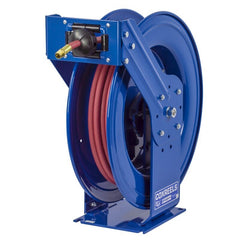

Coxreels TSHL-N-475 Spring Driven Hose Reel 75 Ft Steel

Product Description

The COXREELS TSHL-N-475 is a spring-driven, truck-mount hose reel built for demanding off-road and heavy-duty service environments. Part of the COXREELS T Series, it accommodates hose with a 1/2 inch inside diameter and 3/4 inch outside diameter, with a 75-foot hose capacity. The steel construction and extra-large chassis use a dual pedestal design with a solid one-piece steel base and a triple axle support hub to reduce vibration and maintain structural integrity under continuous heavy use. Licensed HVAC, plumbing, and fluid-handling technicians who work in mobile or vehicle-mounted service setups will find this reel suited to high-cycle, high-abuse applications.

The TSHL-N-475 is designed for truck-mounted and off-road service vehicle installations where reliable hose retrieval under rough operating conditions is required. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a range of service truck layouts and shop setups. Its spring-driven retraction mechanism ensures consistent hose retrieval without manual effort, which reduces fatigue during high-volume service calls.

Key Features

• Spring-driven retraction with an enclosed, lubricated cartridge-style motor that is removable for field maintenance
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Dual pedestal design with solid one-piece steel base and no-weld support post for maximum structural stability
• Multi-position guide arm compatible with wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish provides chip resistance and rust inhibition for extended service life in outdoor and mobile environments

Compatibility

Designed as an OEM-style truck-mount spring-driven hose reel for use with 1/2 inch ID hose up to 75 feet in mobile fluid-handling and service vehicle applications.

Installation Notes

Installation should be performed by a qualified technician familiar with vehicle-mounted fluid handling equipment. Depressurize the hose and fluid system completely before mounting or servicing the reel. Secure the steel base to a structurally sound mounting surface using appropriately rated fasteners for the vehicle or fixture type. Verify that the guide arm position and swivel orientation are set before final tightening to avoid rework after mounting.

Technical Specifications

• Hose Inside Diameter: 1/2 inch
• Hose Outside Diameter: 3/4 inch
• Hose Capacity: 75 feet
• Drive Type: Spring driven
• Mount Type: Truck mount
• Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 71 pounds
• UPC: 674255721029

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHL-N-475
