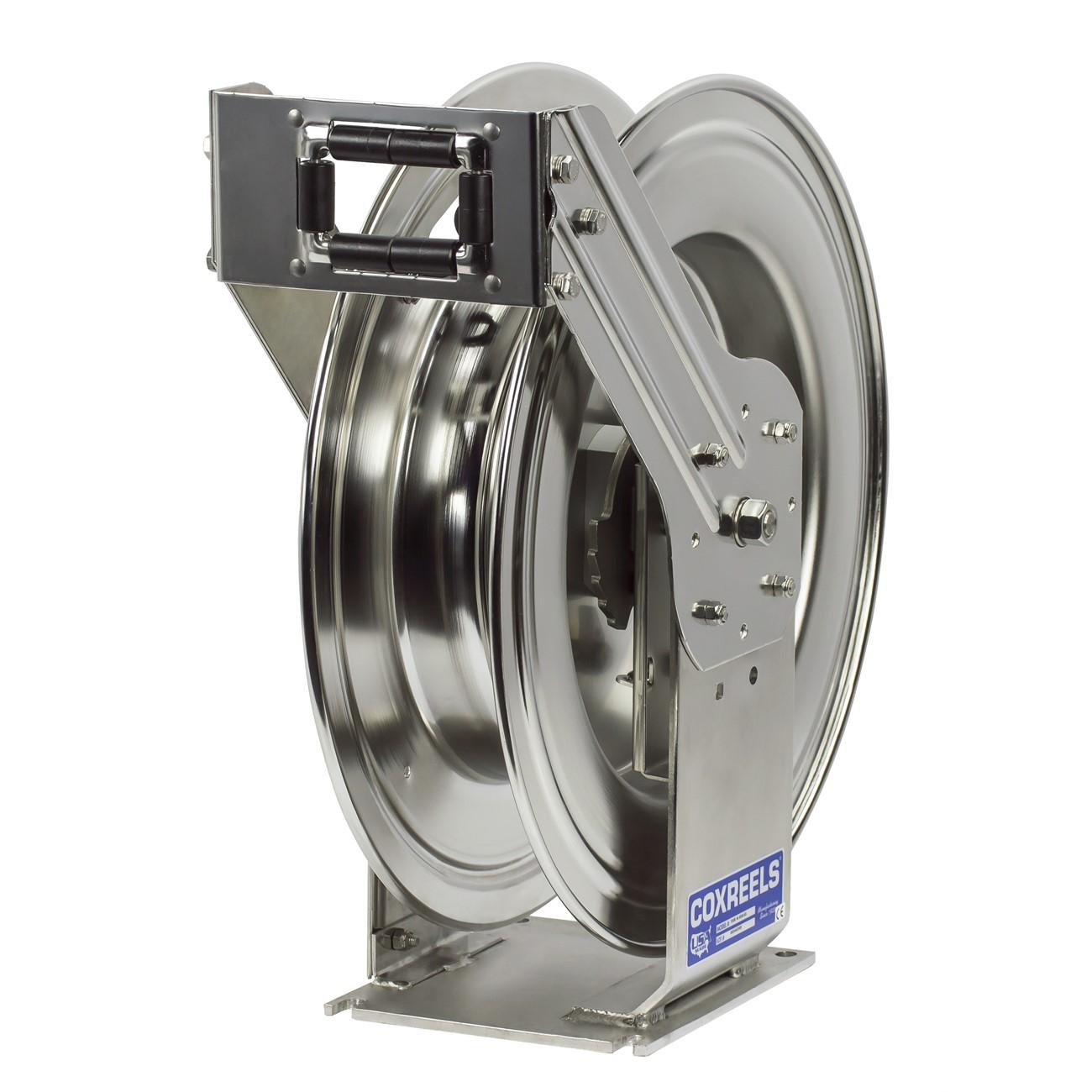

Coxreels TSHL-N-450-SS Stainless Steel Hose Reel 50 Ft

Product Description

The COXREELS TSHL-N-450-SS is a spring-driven, electro-polished stainless steel hose reel designed for demanding environments where corrosion, contamination, and chemical exposure are constant concerns. Built for 1/2 inch inner diameter hose at 50 feet of length, this reel features an all-stainless fluid path from swivel inlet to guide arm. The enclosed cartridge-style motor is self-lubricating and fully removable for field maintenance. Heavy-duty CNC robotically spun discs with rolled edges add structural rigidity and protect both the hose and the technician. Licensed contractors, industrial maintenance crews, and facilities service teams are the primary installers for this class of reel.

This hose reel is suited for food and chemical processing facilities, marina environments, mobile service vehicles, and any site where rust, corrosion, or contamination cannot be tolerated. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable across fixed and mobile installations. The solid one-piece stainless steel base uses a dual pedestal design with no welds, incorporating the Coxreels exclusive triple-axle super hub for maximum load stability. It is sold as a single unit.

Key Features

• Electro-polished stainless steel construction throughout for non-corrosive performance in food, chemical, and marine applications
• Full-flow 90-degree NPT stainless steel swivel inlet machined from solid stock for leak-free external fluid path
• Enclosed, self-lubricated cartridge-style spring motor is removable without special tooling for safe field service
• CNC robotically spun and ribbed discs with rolled edges for hose protection, strength, and operator safety
• Dual pedestal, no-weld stainless steel base with triple-axle super hub support for maximum stability
• Multi-position stainless steel guide arm mounts to wall, floor, ceiling, or vehicle

Compatibility

Designed as an OEM-style replacement or direct installation unit for 1/2 inch ID hose applications in corrosion-sensitive environments requiring stainless steel fluid-path components.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling systems and the applicable mounting surface requirements. Shut off the fluid supply and relieve all line pressure before mounting or connecting the reel. Secure the base to a structurally sound surface rated for the combined weight of the reel and fully charged hose. Follow all applicable facility codes and manufacturer torque guidance for NPT inlet connections to prevent leaks.

Technical Specifications

• Hose Inner Diameter: 0.5 inches
• Hose Length: 50 ft
• Drive Type: Spring-driven
• Material: Electro-polished stainless steel
• Inlet Type: 90-degree full-flow NPT swivel
• Mounting Positions: Wall, floor, ceiling, vehicle
• Length: 20.25 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 55 pounds
• UPC: 674255722774

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHL-N-450-SS
