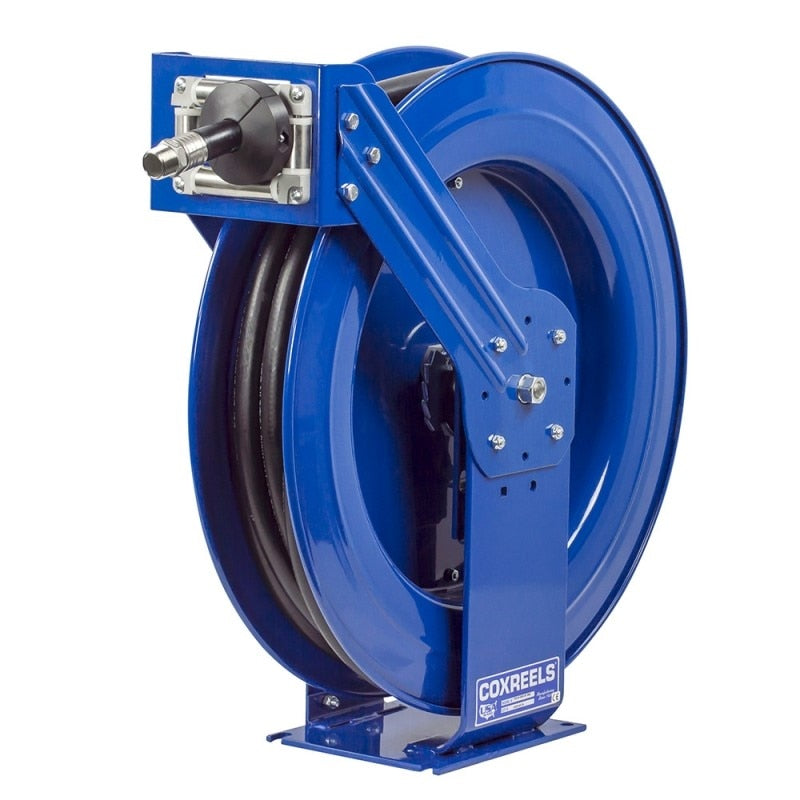

Coxreels TSHL-N-450-BBX Def Hose Reel 50 Ft Dual Pedestal

Product Description

The COXREELS TSHL-N-450-BBX is a supreme-duty dual pedestal hose reel engineered for Diesel Exhaust Fluid (DEF) dispensing in commercial and industrial fleet service environments. Built on the T Series platform, it features a stainless steel 90-degree full-flow NPT swivel with chemical-resistant Viton seals to handle the corrosive nature of DEF safely and reliably. The reel weighs 55 pounds and accepts hose with a 1/2 inch inside diameter and 7/8 inch outside diameter up to 50 feet in length. Installation and seal maintenance are simplified by an externally accessible swivel design. Licensed HVAC and fleet service technicians and lube facility operators are the typical end users.

This reel is suited for stationary service bays and rugged mobile applications such as fleet maintenance vehicles and fuel islands where DEF dispensing is required. The dual pedestal base delivers the added stability needed in high-cycle or vibration-prone environments. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a wide range of service facility layouts.

Key Features

• Stainless steel 90-degree full-flow NPT swivel with Viton seals rated for DEF chemical compatibility
• Enclosed cartridge-style motor is lubricated and removable for maintenance without special tools
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for operator safety and hose protection
• Solid one-piece steel dual pedestal base with no-weld construction and exclusive Super Hub triple axle support system
• Multi-position guide arm adjusts to wall, floor, ceiling, or vehicle mount orientations
• CPC powder coat finish provides chip resistance and rust inhibition for long service life

Compatibility

Designed for DEF dispensing service with hose measuring 1/2 inch inside diameter and 7/8 inch outside diameter, up to 50 feet in length, in stationary or mobile fleet service installations.

Installation Notes

Installation is typically performed by qualified fleet service technicians or plumbing professionals familiar with chemical fluid handling systems. Shut off the DEF supply line and relieve any system pressure before connecting or disconnecting hose fittings. Verify all NPT thread connections are sealed with a DEF-compatible thread sealant. Confirm the mounting surface can support the combined weight of the reel, hose, and fluid load before securing the base.

Technical Specifications

• Hose Inside Diameter: 1/2 inch
• Hose Outside Diameter: 7/8 inch
• Hose Length Capacity: 50 feet
• Configuration: Dual pedestal, supreme duty (T Series)
• Swivel Material: Stainless steel
• Seal Material: Viton
• Base Construction: One-piece steel, no-weld dual pedestal
• Finish: CPC powder coat
• Weight: 55 pounds
• UPC: 674255722811

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHL-N-450-BBX
