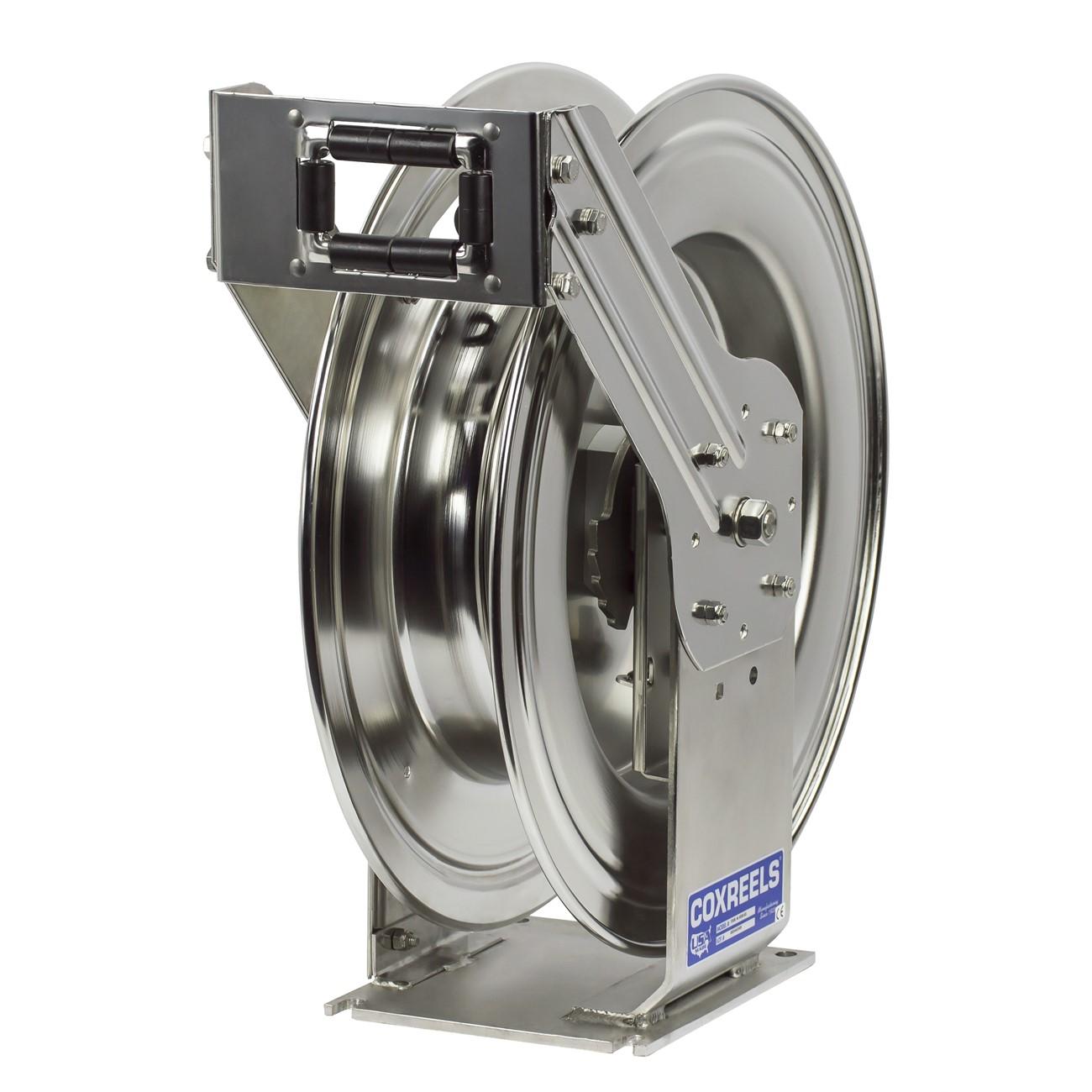

Coxreels TSHL-N-375-SS Stainless Steel Hose Reel 3/8in 75ft

Product Description

The COXREELS TSHL-N-375-SS is a spring-driven, electro-polished stainless steel hose reel designed for demanding environments where corrosion, rust, and contamination are constant concerns. Built for 3/8 inch inner diameter hose up to 75 feet in length, this reel features fully stainless fluid path components to maintain cleanliness and structural integrity across demanding service cycles. The enclosed cartridge-style spring motor is removable for maintenance without disassembly of the entire unit. Licensed HVAC technicians, plumbers, chemical service crews, and marine maintenance professionals are the primary installers and operators of this reel.

The TSHL-N-375-SS is suited for commercial and industrial applications where standard steel reels are not acceptable. Typical deployments include food and chemical processing facilities, marina service docks, wash-down stations, and any environment where exposure to moisture, salts, or corrosive agents is routine. The multi-position stainless steel guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to fixed and mobile service setups.

Key Features

• Electro-polished stainless steel construction throughout for corrosion-resistant, non-contaminating fluid delivery
• Enclosed cartridge-style spring motor is removable for safe, convenient maintenance without full disassembly
• Machined stainless steel 90-degree full-flow NPT swivel inlet provides a non-corrosive external fluid path
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece stainless steel base with dual pedestal design and no-weld construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting

Compatibility

Designed to accept 3/8 inch inner diameter, 5/8 inch outer diameter hose up to 75 feet in length. Intended for applications requiring stainless steel fluid paths, including food processing, chemical service, and marine environments.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid handling systems and applicable safety codes. Depressurize and drain the supply line completely before mounting or servicing the reel. Secure the base to a structurally adequate surface using hardware rated for the combined weight of the reel and loaded hose. Verify NPT swivel inlet thread compatibility with the supply fitting before making final connections.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Outer Diameter: 5/8 inches
• Hose Capacity: 75 feet
• Drive Type: Spring-driven
• Material: Electro-polished stainless steel
• Inlet Type: 90-degree full-flow NPT swivel
• Mounting Positions: Wall, floor, ceiling, vehicle
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 73 pounds
• UPC: 674255746220

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHL-N-375-SS
