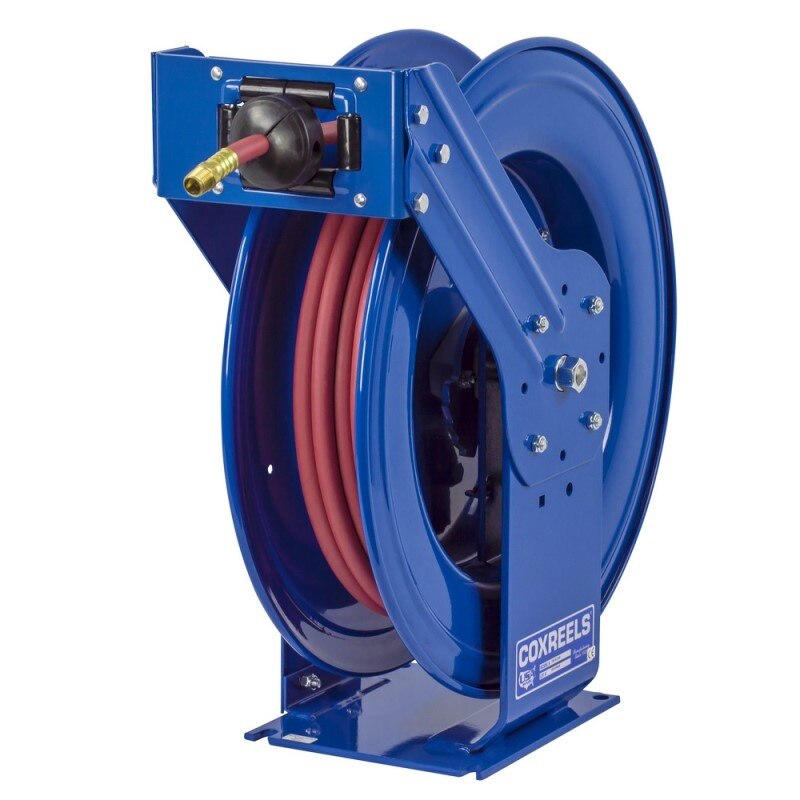

Coxreels TSHL-N-375 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS TSHL-N-375 is a heavy-duty spring-driven hose reel built for truck-mount and off-road applications that demand structural reliability under the most abusive operating conditions. Part of the COXREELS T Series, it features an extra-large steel chassis with dual pedestal-style arms and the Super Hub triple axle support system, which reduces vibration and reinforces structural integrity during mobile use. The reel accommodates 3/8 inch ID, 5/8 inch OD hose up to 75 feet in length. At 73 pounds, this unit is built for permanent vehicle or fixed mounting by service fleet operators, utility techs, and industrial maintenance crews.

The TSHL-N-375 is intended for demanding service environments where spring-rewind convenience and structural durability are both required. Its multi-position guide arm allows mounting to walls, floors, ceilings, and vehicle frames, making it adaptable to a wide range of service truck configurations and shop installations. The spring-driven retraction keeps hose managed automatically, reducing trip hazards and hose wear in high-cycle work environments.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel for simple seal maintenance without removing the reel from its mount
• Enclosed cartridge-style spring motor is fully lubricated and easily removable for field maintenance
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base with dual pedestal design and no-weld construction for maximum stability
• Super Hub triple axle support reduces vibration and strengthens structural integrity under off-road loads
• CPC powder coat finish is chip resistant and rust inhibiting; permanently lubricated precision bearings throughout

Compatibility

Designed as an OEM-style spring-driven hose reel for service truck, fleet, and industrial fixed-mount applications accepting 3/8 inch ID hose up to 75 feet.

Installation Notes

Installation should be performed by a qualified service technician or fleet mechanic familiar with vehicle-mounted equipment. Ensure the mounting surface can support the reel weight of 73 pounds plus the fully loaded hose assembly before fastening. Depressurize and disconnect all hose lines before servicing the swivel, motor cartridge, or guide arm. Verify NPT fitting thread compatibility with existing supply lines prior to connection.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Hose Capacity: 75 feet
• Drive Type: Spring Driven
• Material: Steel
• Weight: 73 pounds
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• UPC: 674255720985

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHL-N-375
