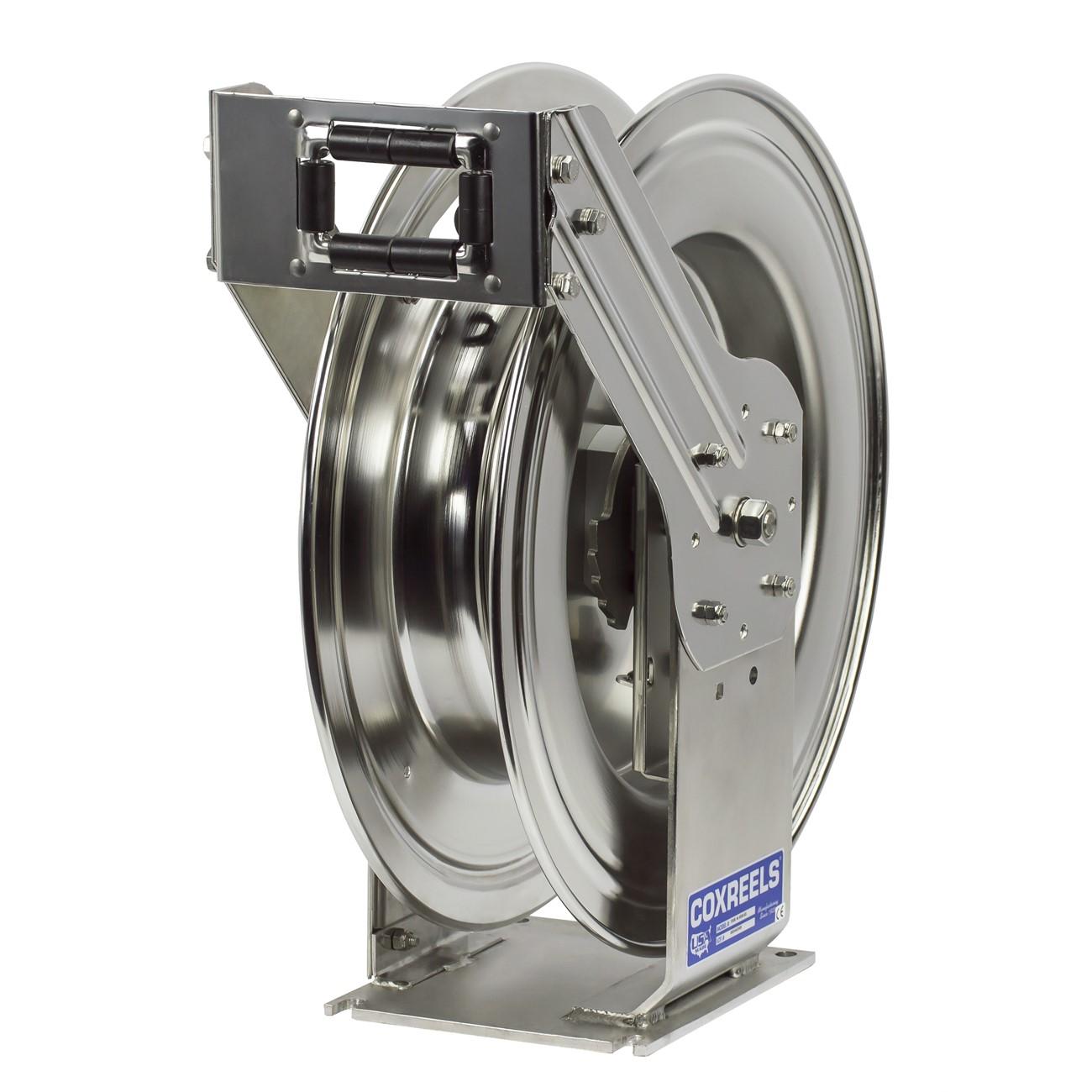

Coxreels TSHL-N-3100-SS Stainless Steel Hose Reel

Product Description

The COXREELS TSHL-N-3100-SS is a stainless steel spring-driven hose reel built for demanding environments where corrosion, contamination, and rust are constant threats. The reel features a fully stainless steel fluid path with an electro-polished finish, a cartridge-style spring motor, and a machined stainless steel 90-degree full-flow NPT swivel inlet. Designed for 3/8 inch ID hose with a 5/8 inch OD and a 100-foot capacity, this unit weighs 74 pounds and is built for permanent installation in fixed or vehicle-mounted service points. Plumbers, chemical processing technicians, marina maintenance crews, and food service facility techs are the primary installers.

This hose reel is suited for applications that require non-corrosive fluid handling equipment. Typical deployment environments include food and chemical processing facilities, marine environments, wash-down stations, and any site where rust formation or microbial contamination from standard steel components is unacceptable. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making the unit flexible across a wide range of fixed installation scenarios. The dual pedestal base uses a solid one-piece stainless steel construction with no welds for maximum structural integrity.

Key Features

• Electro-polished stainless steel construction throughout for non-corrosive, clean fluid handling
• Cartridge-style spring motor is removable for maintenance without full reel disassembly
• Machined stainless steel 90-degree full-flow NPT swivel inlet on external fluid path
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Solid one-piece stainless steel base and support post, no-weld dual pedestal design with triple axle support hub
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations

Compatibility

Designed for use with 3/8 inch ID, 5/8 inch OD hose up to 100 feet in length. Suitable for applications requiring stainless steel spring-driven hose reels in corrosive or contamination-sensitive environments.

Installation Notes

Installation should be performed by a qualified technician familiar with plumbing and fluid handling systems. Shut off the fluid supply line and depressurize the system fully before mounting or connecting the reel. Mounting hardware must be appropriate for the selected surface type — wall, floor, ceiling, or vehicle — and capable of supporting the unit weight of 74 pounds plus hose and fluid load. Consult applicable plumbing codes and facility standards before installing in food-grade or chemical processing environments.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Hose Capacity: 100 feet
• Drive Type: Spring driven
• Material: Electro-polished stainless steel
• Mounting: Wall, floor, ceiling, or vehicle (multi-position guide arm)
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 74 pounds
• UPC: 674255746237

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHL-N-3100-SS
