Coxreels TSHF-N-650 Fuel Hose Reel 1 Inch Id 50 Ft

Product Description

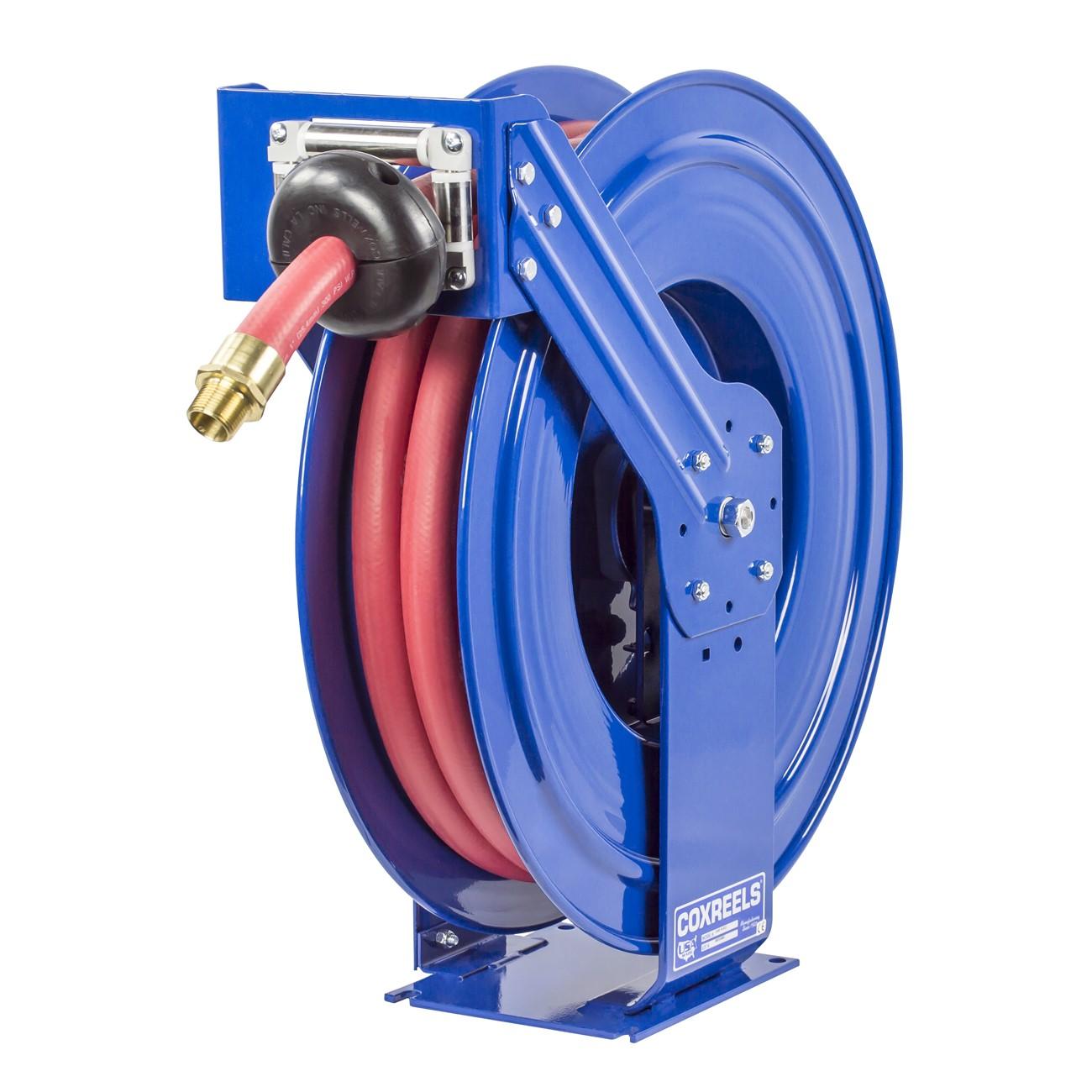

The COXREELS TSHF-N-650 is a supreme-duty, dual-pedestal fuel hose reel built for continuous-service fuel dispensing in demanding transport and industrial applications. Part of the COXREELS T Series lineup, this reel accepts a 1-inch ID, 1.5-inch OD hose up to 50 feet in length and is engineered for non-aromatic fuels including diesel, kerosene, fuel oil, and heating oil. The unit ships at 101 pounds and measures 25 inches long by 13 inches wide by 27 inches tall, reflecting the heavy steel construction throughout. A machined, zinc-plated steel 90-degree full-flow NPT swivel and a CPC powder-coat finish ensure long service life in corrosive environments.

The TSHF-N-650 is suited for use on fuel and lube trucks, tank trucks, aircraft refuelers, bulk liquid transport vehicles, and fixed fuel storage dispensing systems. It is installed by fleet maintenance technicians, fueling system specialists, and ground support equipment crews in both commercial and industrial settings. The dual-pedestal, solid one-piece steel base mounts securely to vehicle frames, shop floors, or bulk dispensing structures, and the multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting orientations.

Key Features

• Dual-pedestal T Series frame with solid one-piece steel base and support post, no-weld construction for maximum stability
• Exclusive Super Hub triple axle support system for bearing load distribution under continuous use
• Machined zinc-plated steel 90-degree full-flow NPT swivel rated for fuel dispensing service
• Lubricated, enclosed cartridge-style motor is fully removable for field maintenance without special tooling
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• CPC chip-resistant, rust-inhibiting powder-coat finish with adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for non-aromatic fuel dispensing applications including diesel, kerosene, fuel oil, and heating oil. Fits hose with 1-inch ID and 1.5-inch OD up to 50 feet in length. Verify swivel thread size and hose end fittings against your dispensing system before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with fuel dispensing systems and applicable safety codes. Shut off all fuel supply lines and relieve system pressure before mounting or servicing the reel. Secure the base to a structurally sound mounting surface using fasteners rated for the unit weight and anticipated hose tension loads. Confirm all NPT swivel and hose connections are leak-free before returning the system to service.

Technical Specifications

• Hose ID: 1 inch
• Hose OD: 1.5 inches
• Hose Length Capacity: 50 feet
• Frame Style: Dual pedestal T Series
• Swivel Material: Zinc-plated steel
• Swivel Type: 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 101 pounds
• UPC: 674255738119

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHF-N-650
