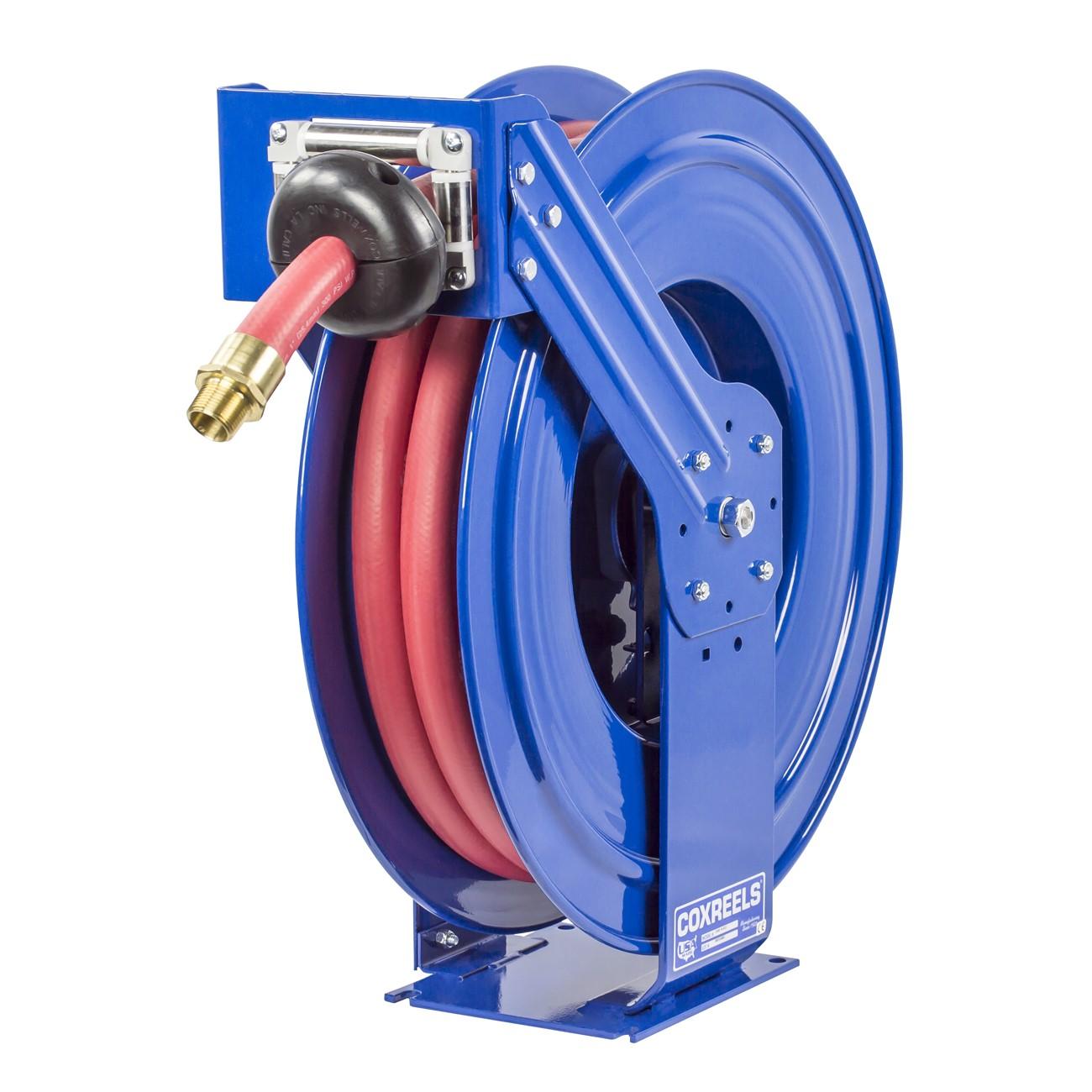

Coxreels TSHF-N-635 Fuel Hose Reel 1 in Id 35 Ft

Product Description

The COXREELS TSHF-N-635 is a supreme-duty dual pedestal fuel hose reel designed for professional fuel dispensing applications involving non-aromatic fuels including diesel, kerosene, fuel oil, and heating oil. Built on the T Series frame, this reel features a solid one-piece steel base with no-weld construction, CNC robotically spun and ribbed discs with rolled edges, and a permanently lubricated enclosed cartridge-style motor that is removable for field maintenance. The unit weighs 95 pounds and measures 25 inches long, 13 inches wide, and 27 inches tall. It is installed by qualified service technicians and fuel equipment professionals in fixed and mobile dispensing systems.

This reel is suited for heavy-duty stationary and mobile fuel handling environments. Typical installations include fuel and lube service trucks, aircraft refueling equipment, tank trucks, bulk liquid transport vehicles, and fixed fuel storage dispensing systems used in utility and ground support operations. The multi-position guide arm adjusts to accommodate wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of service environments. The 1 inch ID hose path accommodates high-flow fuel transfer demands common in commercial and fleet maintenance settings.

Key Features

• Supreme-duty T Series dual pedestal frame with solid one-piece steel base and no-weld construction for maximum stability
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, hose protection, and operator safety
• Machined zinc-plated steel 90-degree full-flow NPT swivel rated for fuel dispensing service
• Enclosed, lubricated cartridge-style motor is fully removable for safe and convenient maintenance
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and precision permanently lubricated bearings

Compatibility

Designed for use with non-aromatic fuel media including diesel, kerosene, fuel oil, and heating oil. Intended for professional fuel dispensing installations on fuel and lube trucks, tank trucks, aircraft refuelers, and fixed bulk liquid handling systems.

Installation Notes

Installation should be performed by a qualified fuel equipment technician or licensed service professional familiar with applicable fuel handling codes and safety requirements. Shut off all fuel supply and depressurize the hose assembly completely before mounting or servicing the reel. Verify that all NPT swivel and inlet connections are properly torqued and leak-tested with approved methods before returning the system to service. Consult local fire codes and NFPA standards governing fuel dispensing equipment installations.

Technical Specifications

• Hose ID: 1 inch
• Hose Length: 35 feet
• Frame Style: Dual pedestal T Series
• Swivel Type: 90-degree full-flow NPT, zinc-plated steel
• Motor Type: Enclosed cartridge-style, lubricated
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 95 pounds
• UPC: 674255721968

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHF-N-635
