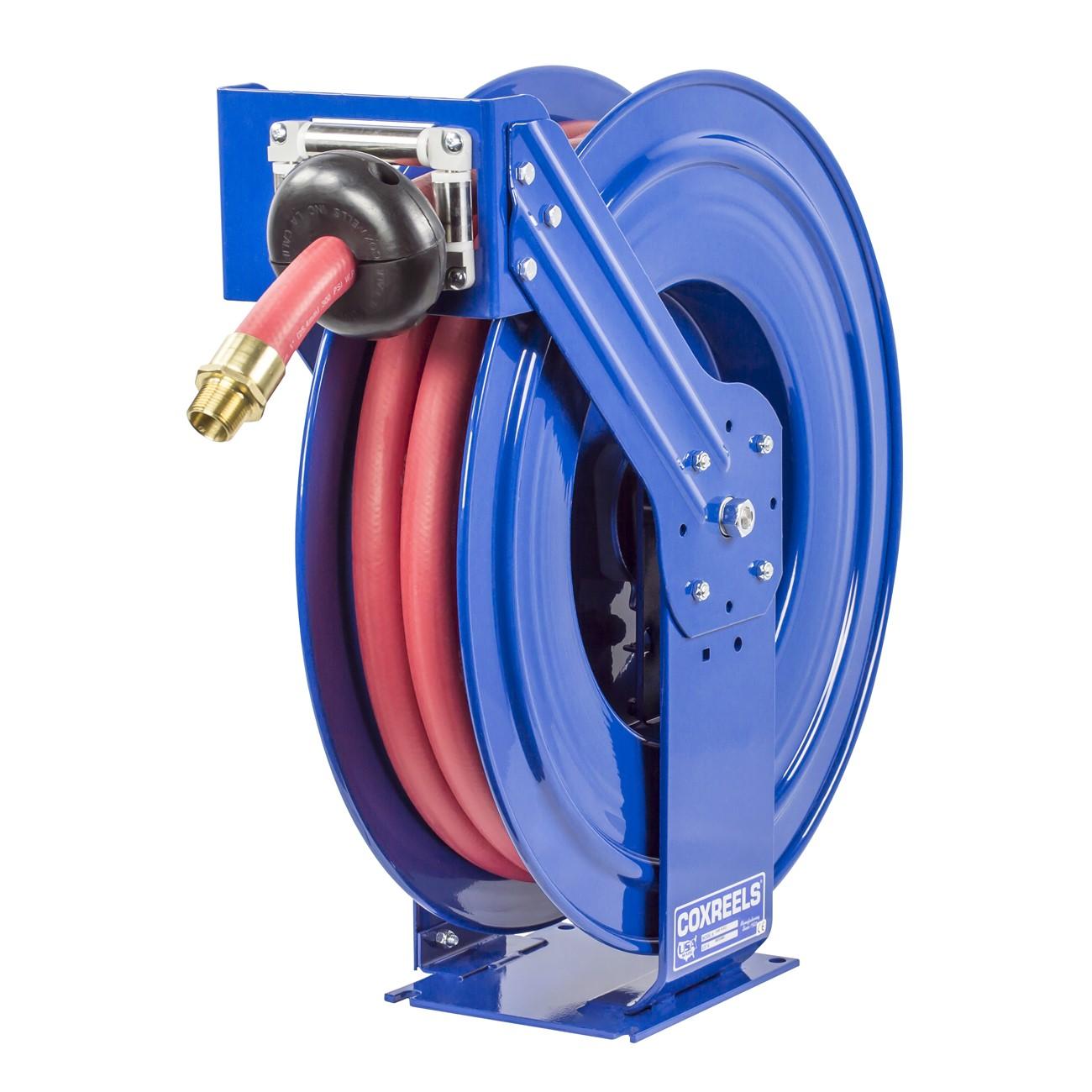

Coxreels TSHF-N-550 Fuel Hose Reel 3/4 Inch 50 Ft

Product Description

The COXREELS TSHF-N-550 is a supreme-duty, dual pedestal fuel dispensing hose reel rated for non-aromatic fuel applications including diesel, kerosene, fuel oil, and heating oil. Built on the T Series platform, this reel features a machined solid brass 90-degree full-flow NPT swivel, CNC robotically spun and ribbed discs with rolled edges, and a cartridge-style motor that is fully enclosed and lubricated for field maintenance. The one-piece solid steel base with no-weld construction and an exclusive triple axle support system provide maximum stability under demanding service conditions. It is designed for installation by fuel service technicians and fleet maintenance personnel on fixed or mobile fueling equipment.

This reel is suited for use in utility services, ground support operations, and bulk liquid handling transport applications. Common mounting platforms include fuel storage dispensing systems, fuel and lube trucks, aircraft refuelers, and tank trucks. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to both stationary and mobile installations. The reel ships with a fuel dispensing hose and an adjustable solid rubber hose stop for controlled unreeling.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel engineered for fuel dispensing service
• Enclosed, lubricated cartridge-style motor is easily removable for maintenance without special tools
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• One-piece solid steel base with no-weld dual pedestal design and exclusive triple axle support system
• Multi-position guide arm mounts to wall, floor, ceiling, or vehicle surface
• CPC powder coat finish resists chips and rust; includes adjustable rubber hose stop and precision permanently lubricated bearings

Compatibility

Designed for non-aromatic fuel applications including diesel, kerosene, fuel oil, and heating oil in utility, ground support, and bulk liquid handling transport service environments.

Installation Notes

Installation should be performed by a qualified fuel service or mechanical technician familiar with applicable fuel handling codes and local regulations. Shut off all fuel supply lines and relieve system pressure before mounting or servicing the reel. Ensure all NPT connections are properly sealed with fuel-compatible thread sealant. Verify that the mounting surface and fastener hardware are rated to support the full loaded weight of the reel and hose assembly.

Technical Specifications

• Hose ID: 3/4 inches
• Hose Length: 50 ft
• Frame Style: Dual pedestal T Series
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Material: Steel, one-piece no-weld construction
• Finish: CPC powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 91 pounds
• UPC: 674255723573

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSHF-N-550
