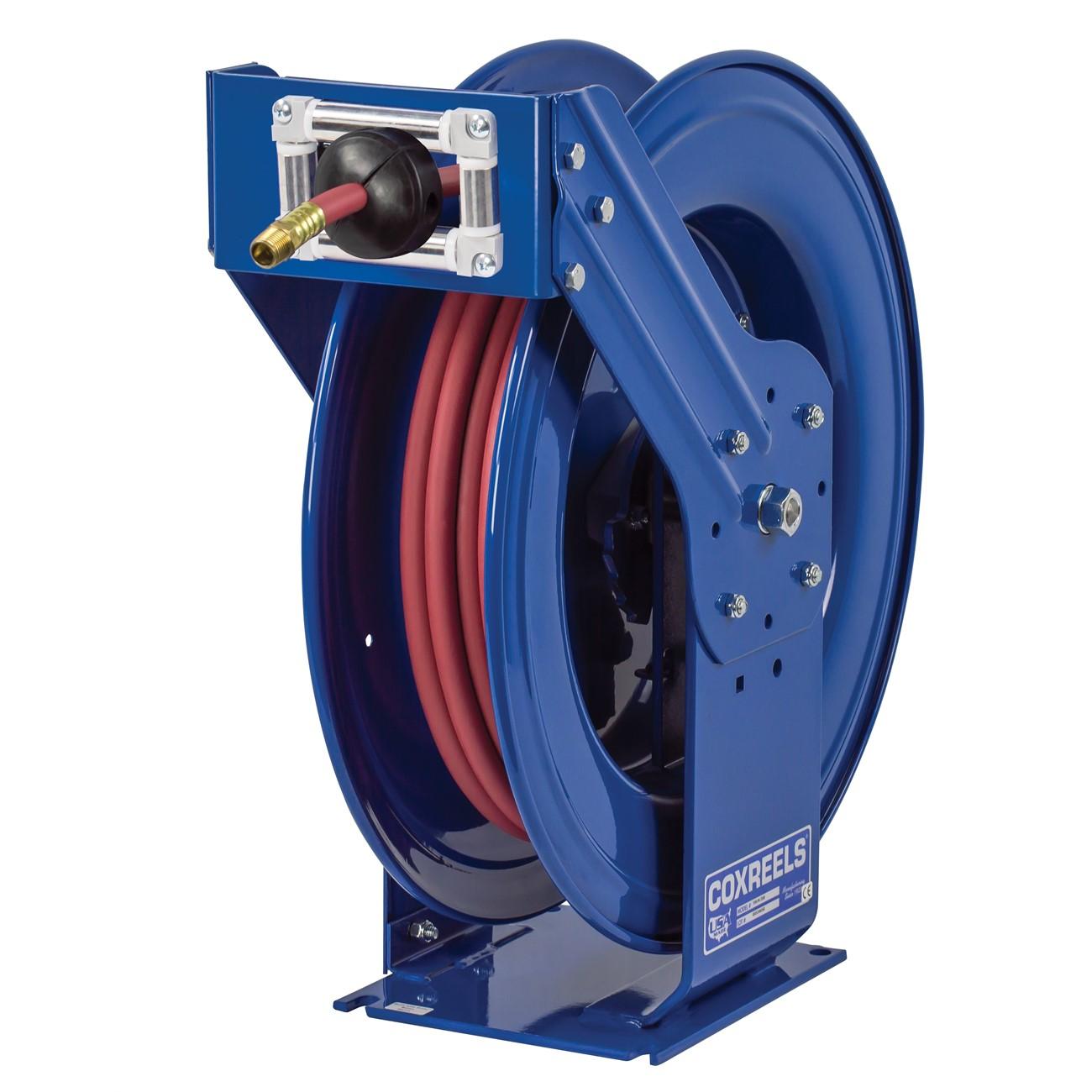

Coxreels TSH-N-650 Spring Driven Hose Reel 50 Ft

Product Description

The COXREELS TSH-N-650 is a T Series spring-driven hose reel built for truck-mount and off-road service applications. It accepts hose with a 1-inch inner diameter and 1.5-inch outer diameter up to 50 feet in length. The reel is constructed around an extra-large chassis with dual pedestal-style arms and a one-piece steel base. A triple axle support hub reduces vibration and reinforces structural integrity under demanding field conditions. At 98 pounds, this is a heavy-duty unit intended for professional installation by HVAC, plumbing, or industrial service technicians who require reliable hose retrieval in abusive environments.

The TSH-N-650 is suited for truck-mounted service rigs operating in off-road or high-vibration environments where standard spring-driven reels are undersized or insufficiently rigid. Typical applications include fluid transfer, compressed air, and similar service lines where a self-retracting reel is required at the vehicle. The multi-position guide arm allows mounting to walls, floors, ceilings, or vehicle surfaces, giving installers flexibility when configuring the reel in a service truck body or utility trailer.

Key Features

• Spring-driven cartridge motor is enclosed, lubricated, and fully removable for field maintenance without dismounting the reel
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for hose protection and increased structural strength
• One-piece solid steel base with dual pedestal design and no-weld construction for maximum stability
• Triple axle Super Hub reduces vibration and extends bearing and axle life in high-cycle truck-mount use
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style truck-mount replacement or new-installation hose reel for 1-inch ID hose up to 50 feet in length within the COXREELS T Series spring-driven product line.

Installation Notes

Installation should be performed by a qualified technician familiar with vehicle-mounted fluid or pneumatic service equipment. Depressurize and drain all connected lines before mounting or servicing the reel. Secure the one-piece steel base to a structurally sound mounting surface using hardware appropriate for the vehicle or structure. Consult applicable federal and local regulations for vehicle equipment mounting when installing on service trucks or trailers.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1.5 inches
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Mount Type: Truck mount
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Material: Steel
• Finish: CPC powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 98 pounds
• UPC: 674255738102

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSH-N-650
