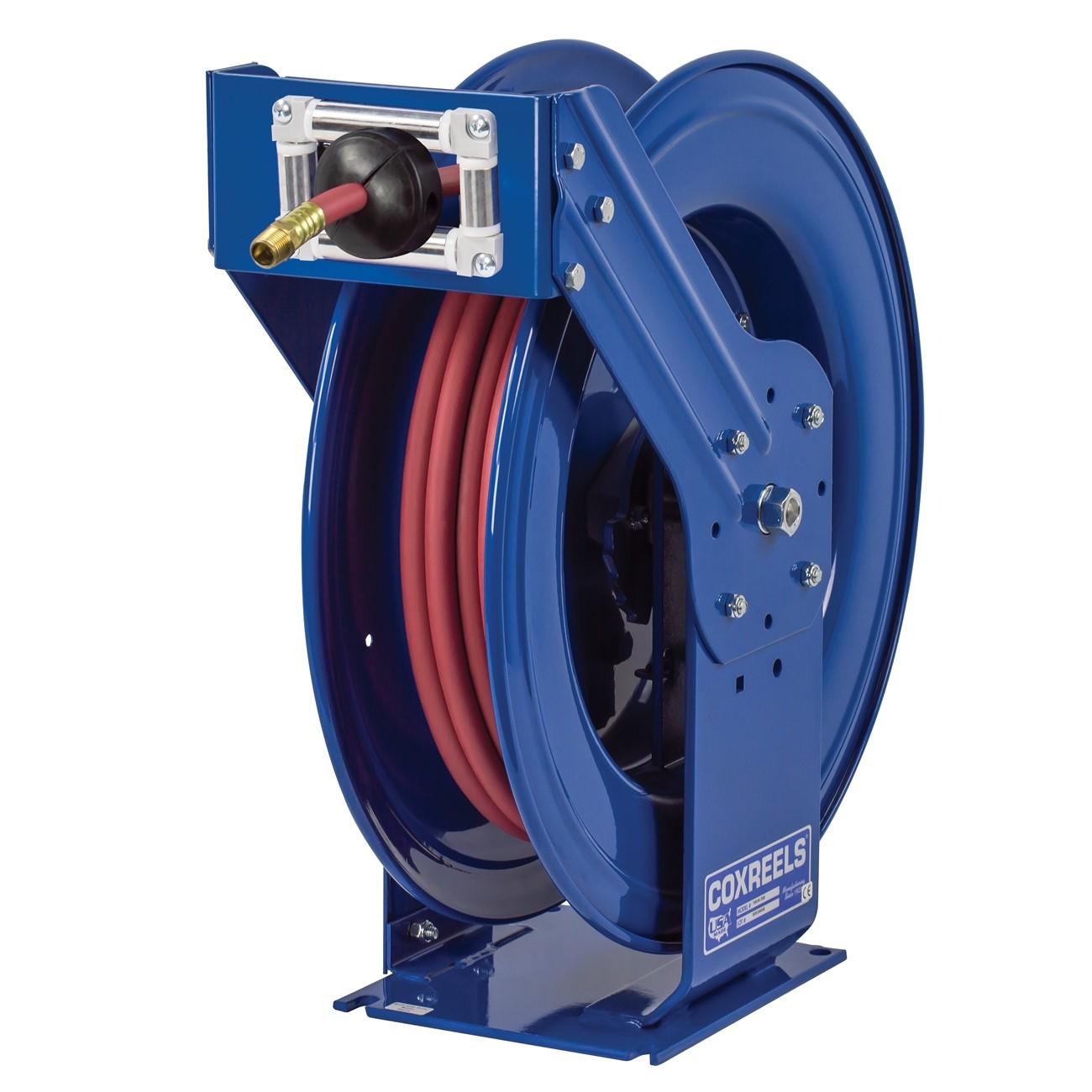

Coxreels TSH-N-635 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS TSH-N-635 is a spring-driven, truck-mount hose reel built for heavy-duty field service in off-road and high-abuse environments. Part of the COXREELS T Series line, it accommodates hose with a 1-inch inner diameter and 1-1/2-inch outer diameter at a capacity of 35 feet. The reel weighs 92 pounds and measures 25 inches long, 13 inches wide, and 27 inches tall. A triple-axle Super Hub and dual pedestal-style arms reduce vibration and reinforce structural integrity under the kind of sustained stress common in utility, oil field, and mobile service truck applications. Licensed technicians and fleet service crews are the primary installers.

The TSH-N-635 is designed for mobile service vehicle installations where spring-driven retraction and rugged chassis construction are required. Its multi-position guide arm supports wall, floor, ceiling, and vehicle-mount configurations, making it adaptable across a range of truck-body and utility-trailer setups. The dual pedestal, one-piece steel base uses no-weld construction to maximize stability on unpaved terrain and during transit. This reel suits applications in compressed air, water, oil, and similar fluid delivery services where a reliable, self-retracting hose management system is required on the go.

Key Features

• Spring-driven retraction with an enclosed, removable cartridge-style motor for easy field maintenance
• Machined solid-brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• One-piece no-weld steel base with dual pedestal arms and exclusive Super Hub triple axle support
• Multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish resists chips and rust; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style replacement and direct-fit option for spring-driven truck-mount hose reel applications requiring 1-inch ID hose capacity up to 35 feet in length.

Installation Notes

Installation is typically performed by qualified service technicians familiar with mobile fluid-delivery systems. Depressurize the hose and relieve all spring tension before disassembling any reel components. Secure the reel to a structurally sound mounting surface rated for the combined weight of the reel and a fully loaded hose. Follow applicable OSHA and vehicle-equipment safety guidelines for truck-body accessory installations.

Technical Specifications

• Hose Inner Diameter: 1 inch
• Hose Outer Diameter: 1-1/2 inches
• Hose Capacity: 35 feet
• Drive Type: Spring driven
• Mount Type: Truck mount
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 92 pounds
• Base Material: Steel
• Swivel Material: Solid brass
• Finish: CPC powder coat
• UPC: 674255721814

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSH-N-635
