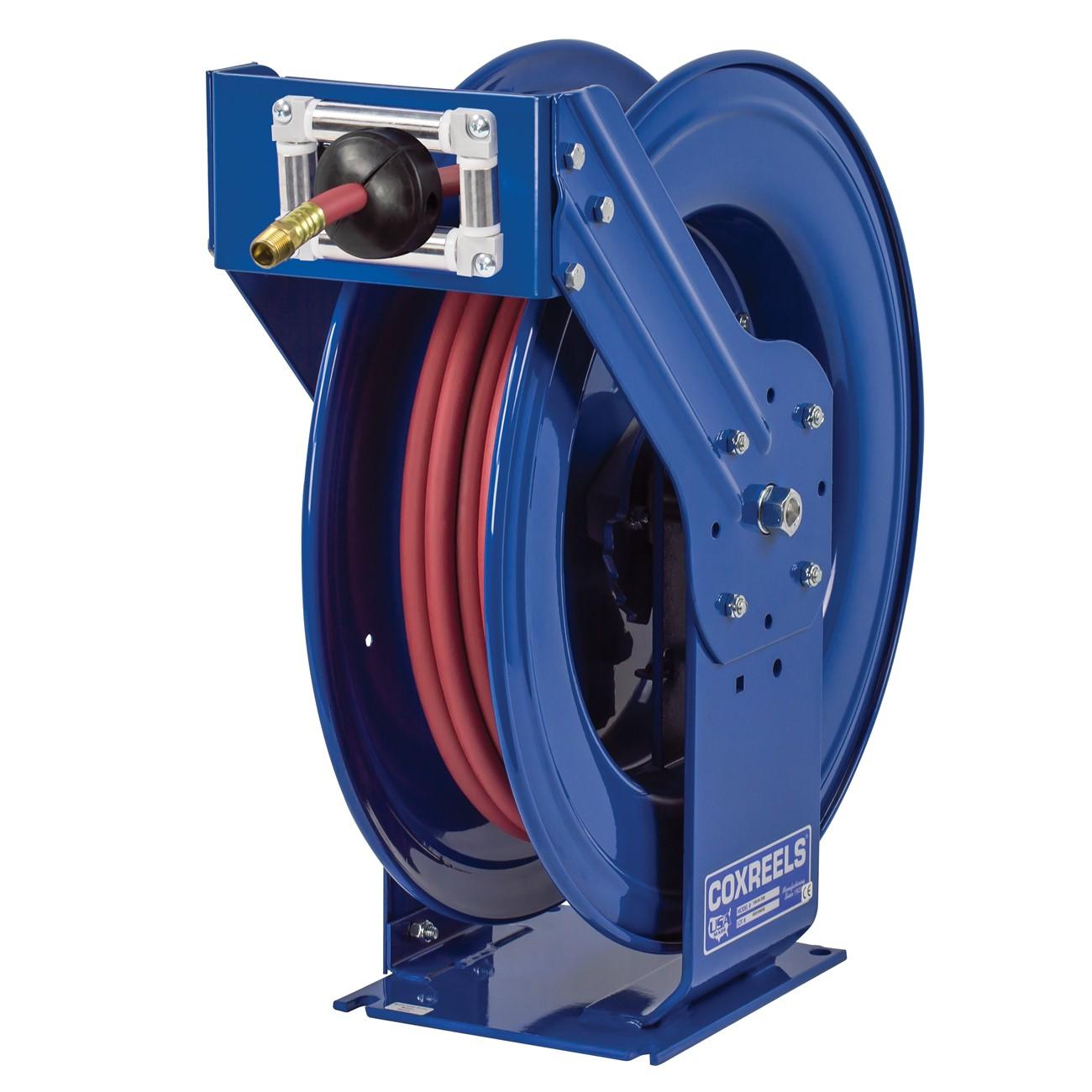

Coxreels TSH-N-575 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS TSH-N-575 is a T Series spring driven truck mount hose reel built for demanding off-road and field service applications. Constructed with a solid steel base and dual pedestal-style arms, this reel delivers exceptional structural integrity where standard reels fall short. The Super Hub triple axle support system reduces vibration and reinforces the drum assembly under heavy use. The reel accepts 3/4 inch ID hose up to 75 feet in length and ships ready for wall, floor, ceiling, or vehicle mounting. Licensed HVAC technicians, plumbers, and field service crews working from service trucks will find this reel built to handle abusive daily use.

The TSH-N-575 is designed for mobile service operations where reliability under rough conditions is required. Its multi-position guide arm accommodates multiple mounting orientations, making it suitable for a wide range of truck bed and service vehicle configurations. The spring driven retraction mechanism keeps hose neatly stored without manual rewinding. This reel is a fit for industrial fluid transfer, compressed air delivery, and similar high-demand field applications where a durable, self-retracting hose management solution is needed.

Key Features

• Spring driven retraction with a cartridge-style motor that is fully enclosed, lubricated, and removable for maintenance without removing the reel from its mount
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• Heavy duty CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Solid one-piece steel base with dual pedestal design and no-weld construction for maximum stability
• Super Hub triple axle support reduces vibration and strengthens structural integrity in off-road environments
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement and direct-fit hose reel for truck mount and stationary service applications requiring 3/4 inch ID hose up to 75 feet.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid or compressed air system requirements. Shut off and depressurize the supply line before connecting or disconnecting hose or swivel fittings. Secure the reel base to a solid mounting surface using hardware rated for the combined weight of the reel and fully loaded hose. Verify that all NPT fittings are properly sealed and that the guide arm is locked into the correct position for the intended mounting orientation before returning the system to service.

Technical Specifications

• Hose Inside Diameter: 3/4 inch
• Hose Outside Diameter: 1 1/16 inch
• Hose Length Capacity: 75 feet
• Drive Type: Spring Driven
• Base Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 93 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSH-N-575
