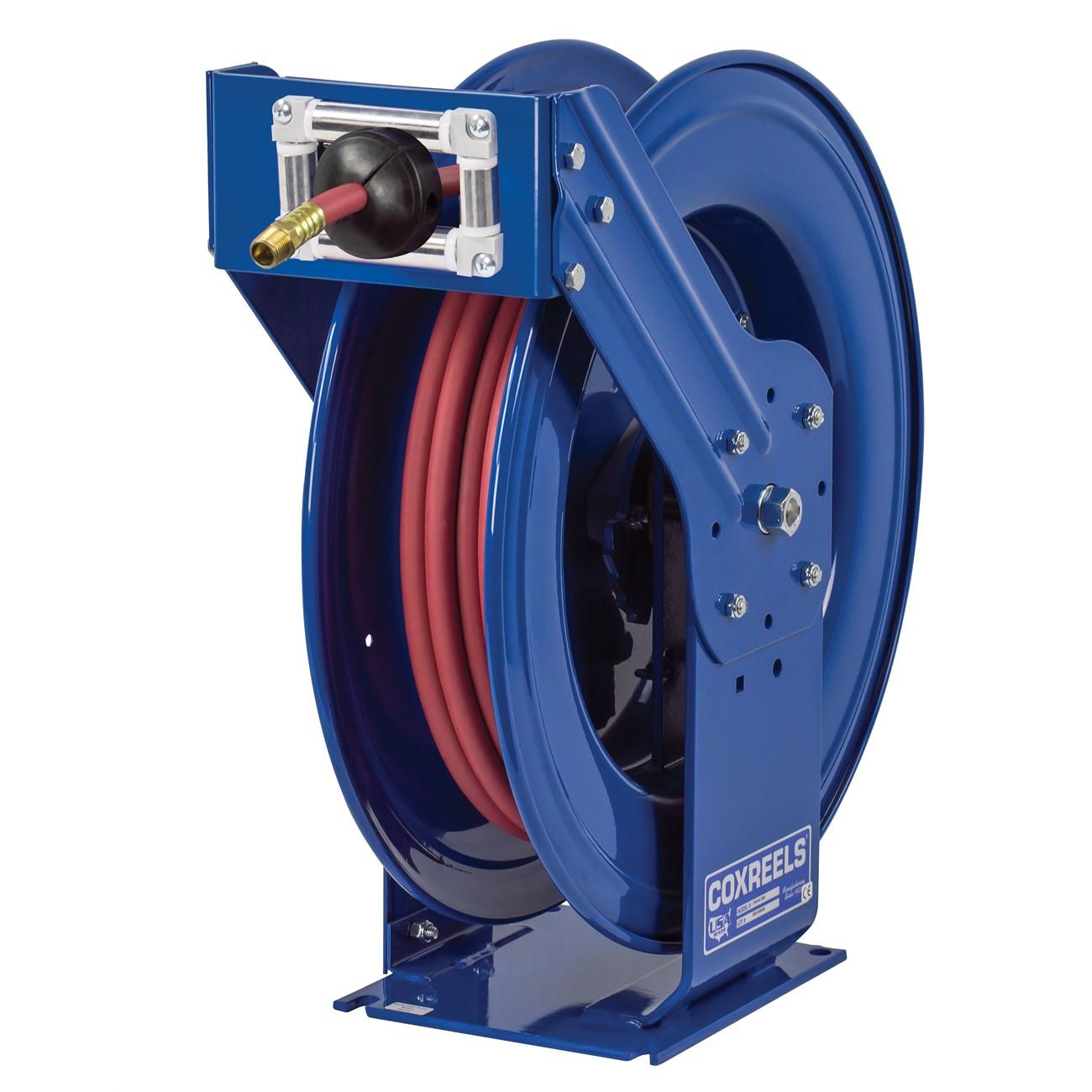

Coxreels TSH-N-550 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS TSH-N-550 is a T Series spring-driven truck mount hose reel built for demanding off-road and heavy-duty field service applications. Constructed with a solid one-piece steel base and dual pedestal-style arms, it accepts 3/4 inch ID hose with a 1-1/16 inch OD up to 50 feet in length. The enclosed cartridge-style spring motor and triple axle Super Hub support reduce vibration and extend service life in rough environments. Licensed HVAC, plumbing, and general service contractors working in rugged conditions rely on this reel for consistent, reliable hose retrieval without manual rewinding.

This hose reel is suited for truck-mounted service setups where durability and fast hose access are critical. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a range of installation scenarios. The heavy-duty CNC robotically spun and ribbed steel discs with rolled edges protect the hose during repeated use. The reel is built to maintain structural integrity in abusive environments including off-road utility vehicles and service fleets.

Key Features

• Dual pedestal-style arms with solid one-piece steel base and no-weld support post for maximum structural stability
• Super Hub triple axle support reduces vibration and strengthens reel integrity during off-road operation
• Enclosed and lubricated cartridge-style spring motor is removable for safe field maintenance without dismounting the reel
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges protect hose and improve operator safety
• Multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mount positions
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with 3/4 inch ID, 1-1/16 inch OD hose up to 50 feet in length in truck-mounted and off-road service applications.

Installation Notes

Installation should be performed by a qualified technician familiar with vehicle-mounted equipment and applicable safety standards. Shut off all fluid supply and relieve system pressure before mounting or servicing the reel. Secure all mounting hardware to the vehicle frame according to the vehicle manufacturer load specifications. Verify swivel and hose connections for leaks before returning the system to service.

Technical Specifications

• Hose ID: 0.75 inches
• Hose OD: 1-1/16 inches
• Hose Capacity: 50 feet
• Base Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 83 pounds
• UPC: 674255720947

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSH-N-550
