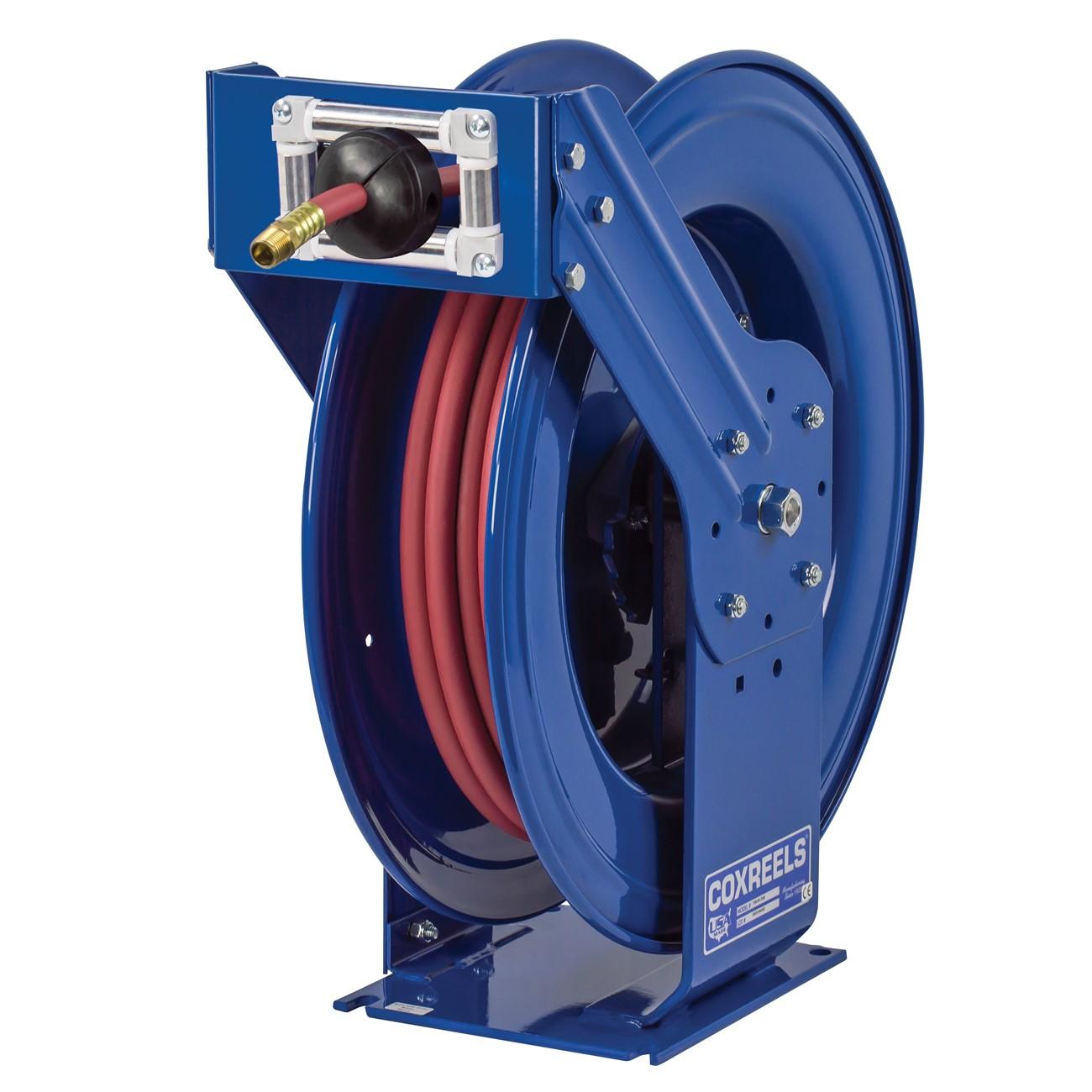

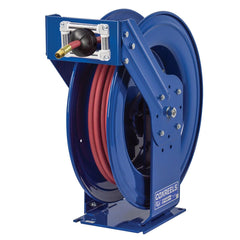

Coxreels TSH-N-535 Spring Driven Hose Reel 3/4 Inch 35 Ft

Product Description

The COXREELS TSH-N-535 is a spring-driven, truck-mount hose reel built for heavy-duty field use. Part of the COXREELS T Series, it accepts 3/4 inch ID hose up to 35 feet in length and features an extra-large steel chassis with dual pedestal-style arms. A machined brass 90-degree full-flow NPT swivel allows hose installation without removing the reel from its mount. The enclosed cartridge-style rewind motor is lubricated and removable for field maintenance. At 77 pounds, this reel is sized for permanent truck or vehicle mounting where structural integrity under vibration and off-road stress is required. Licensed HVAC techs, plumbers, and service contractors working mobile rigs are the primary installers.

The TSH-N-535 is designed for off-road and mobile service applications where spring-driven hose retrieval must hold up to abusive operating conditions. The dual pedestal chassis and COXREELS Super Hub triple axle support reduce vibration transfer and increase reel longevity on work trucks and service vehicles. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across different truck bed and van layouts. The CPC powder coat finish resists chips and rust in outdoor and harsh-environment service.

Key Features

• Spring-driven cartridge motor is fully enclosed, lubricated, and removable for safe field maintenance
• Machined solid brass 90-degree full-flow NPT swivel allows hose changes without demounting the reel
• Dual pedestal steel base with Super Hub triple axle support reduces vibration and increases structural rigidity
• CNC robotically spun and ribbed steel discs with rolled edges protect hose and improve operator safety
• Multi-position guide arm mounts to wall, floor, ceiling, or vehicle surfaces
• CPC powder coat finish provides chip resistance and rust inhibition for outdoor service life
• Adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style truck-mount replacement or new-install spring-driven hose reel for 3/4 inch ID hose assemblies up to 35 feet in length in mobile service, off-road, and industrial applications.

Installation Notes

Installation is typically performed by a qualified service technician or fleet maintenance professional. Secure the steel base to the mounting surface using hardware rated for the load before connecting hose and fluid lines. Relieve all system pressure and depressurize any connected lines before removing or replacing the hose or swivel. Verify that mounting position and guide arm orientation comply with applicable vehicle upfitting and workplace safety codes before placing the reel in service.

Technical Specifications

• Hose ID: 3/4 inch
• Hose Outer Diameter: 1-1/16 inch
• Hose Length Capacity: 35 feet
• Drive Type: Spring driven
• Mount Type: Truck mount
• Base Material: Steel
• Swivel Material: Solid brass
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 77 pounds
• UPC: 674255720923

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: TSH-N-535
